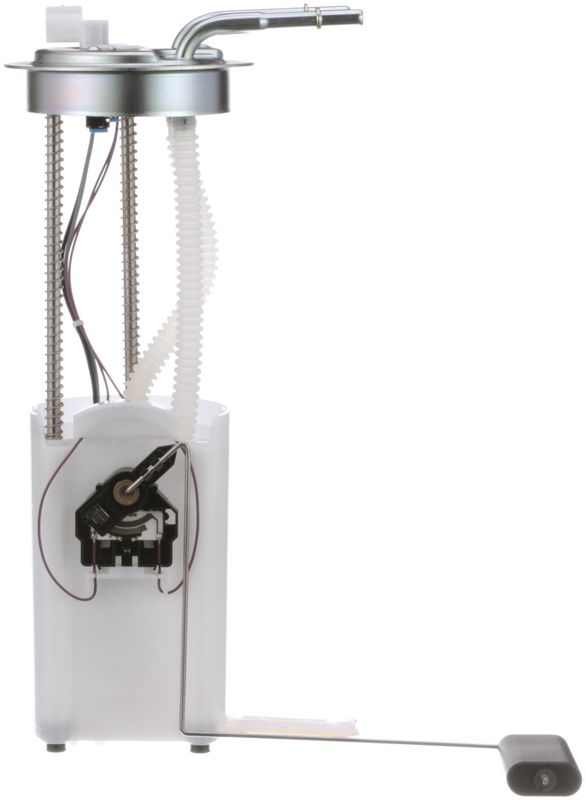

Sparta PN3225 Fuel Pump Module Assembly
| Brand | Sparta PN3225 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 65 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 40 |
| Resistance Ohms Full | 250 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 62 |
| Fits | Hummer · 1 vehicle |
Standard replacement. Specific-fit fuel pump module assembly for straightforward replacement.
Turbine pump design. Delivers steady fuel flow with efficient electric operation.
Includes fuel sending unit. Comes with a float arm, seal, and strainer.
Cross-references Airtex Fuel Pumps E3558M, Airtex Fuel Pumps E8431M and Bosch 67386 for the same application. See all 15.
Fuel Pump Module Assembly for 2003 Hummer H2
Restore consistent fuel delivery with the Sparta PN3225 fuel pump module assembly. This in-tank, specific-fit replacement is built for gasoline applications and includes the fuel sending unit, strainer, gasket, and float arm for a direct service solution on the 2003 Hummer H2.
Key Features
- Specific-fit fuel pump module assembly for the 2003 Hummer H2
- Electric turbine pump design with 12-volt operation
- In-tank configuration for gasoline fuel systems
- Fuel sending unit included for accurate fuel level reporting
- Strainer and nitrile rubber seal included
- Quick-connect outlet design with 2 outlet ports
- Standard replacement grade for OE-style service
- Sparta PN3225 cross-references Bosch 67386 and Carter P76488M for the same application
Detailed Description
Sparta PN3225 is a fuel pump module assembly distributed by Delphi, the OE full-line fuel supplier, and is aimed at higher-mileage and earlier-model vehicles. It uses a plastic housing, blade terminals, a female oval connector, and a turbine-style electric pump rated for 62 to 65 psi maximum pressure with an average flow rating of 24. The module includes the fuel sending unit, internal strainer, and seal, making it a practical replacement for fuel delivery and fuel level issues on the 2003 Hummer H2. This part number, PN3225, is a direct-fit service component for gasoline systems that require an in-tank module assembly.
Common Issues This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Incorrect fuel gauge readings from a worn sending unit
- Fuel pump noise from a failing in-tank module
- Loss of power under load related to low fuel flow
Installation Notes and Tips
Install this module in the fuel tank using the correct service procedure for the 2003 Hummer H2. Verify connector shape, terminal count, outlet style, and tank opening dimensions before installation. Replace the tank seal during service and confirm proper electrical connection, fuel line engagement, and fuel level sender operation after installation. PN3225 is a specific-fit assembly, so application verification should be completed before removal of the original unit.
Quality Assurance
Sparta fuel system components are backed by Delphi OE engineering expertise and are positioned as standard replacement parts for older and higher-mileage vehicles. PN3225 is built to OE-style fit and performance expectations for the listed application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2003 | Hummer | H2 | — |
