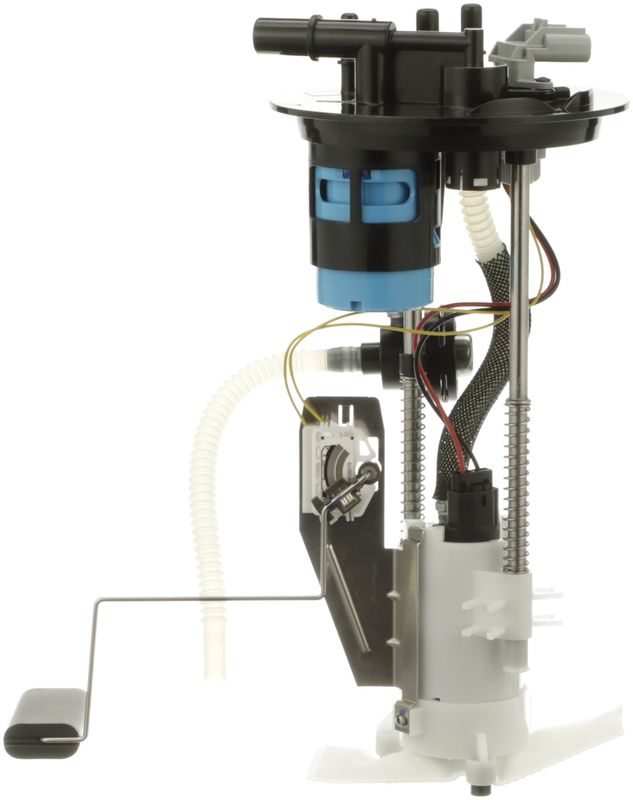

Sparta PN3230 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Ford Ranger

Restore dependable fuel delivery with the Sparta PN3230 fuel pump module assembly. This in-tank, specific-fit replacement is built for 2007-2011 Ford Ranger gas applications and includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm for a complete service solution.

Key Features

• Specific-fit fuel pump module assembly for 2007-2011 Ford Ranger
• 12-volt electric turbine pump design for gasoline applications
• Includes fuel sending unit, regulator, strainer, seal, and float arm
• In-tank design with quick-connect outlet and oval 1-connector configuration
• Standard replacement grade for higher-mileage and earlier model vehicles
• Maximum pressure rating of 65 psi with 23 average flow rating
• Plastic housing with nitrile rubber gasket/seal material

Detailed Description

Sparta PN3230 is a fuel pump module assembly engineered for direct replacement in the 2007-2011 Ford Ranger. It is designed for gasoline fuel systems and uses an electric turbine pump with an in-tank layout, 4-terminal blade connection, and quick-connect outlet for service-friendly installation. The module includes the fuel sending unit and regulator, helping restore fuel level reporting and fuel pressure control in one assembly. Sparta is distributed by Delphi, an OE fuel supplier, and is positioned for higher-mileage and earlier model vehicles where fit and performance matter.

This part cross-references Airtex Fuel Pumps E8808M and Carter P76478M for the same application. Part number PN3230 is also referenced in interchange listings for related OE and aftermarket applications.

What It Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel pressure loss that can lead to hesitation or stalling
• Inaccurate fuel gauge readings from a worn sending unit
• Noise or reduced output from an aging in-tank pump
• Driveability issues on a Ford Ranger with a failing module assembly

Installation Notes and Tips

PN3230 is a specific-fit in-tank module for gasoline applications, so verify the vehicle’s fuel system configuration before installation. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Confirm connector shape, terminal count, outlet style, and tank access before beginning service on your Ford Ranger.

Quality Assurance

Sparta fuel system components are backed by Delphi’s OE fuel-supply expertise, with product engineering focused on fitment and performance for the listed application. PN3230 is built as a standard replacement part for 2007-2011 Ford Ranger fuel system service.
