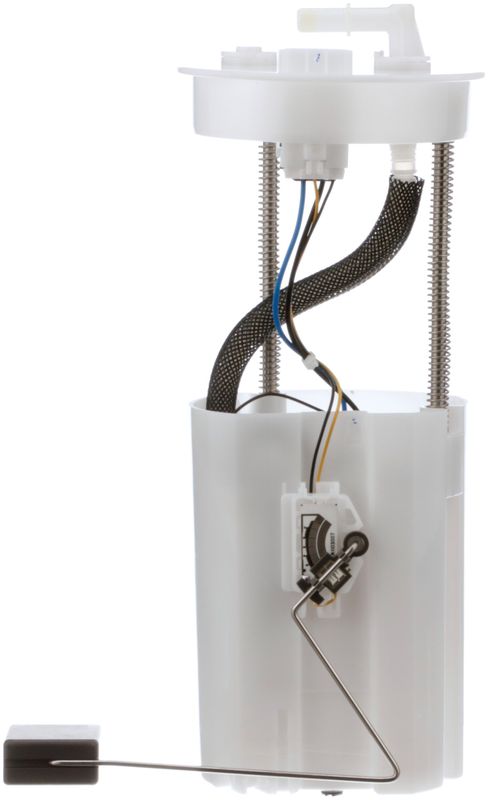

Sparta PN3236 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Acura TL and Honda Accord

Sparta PN3236 is a specific-fit fuel pump module assembly for select 2003-2007 Honda Accord and 2004-2008 Acura TL applications. It includes the fuel sending unit, regulator, strainer, fuel filter, gasket, and lock ring for a complete in-tank replacement.

Key Features

• Specific-fit, standard replacement fuel pump module assembly
• In-tank electric turbine pump design for gasoline applications
• Includes fuel sending unit, regulator, strainer, fuel filter, seal, and lock ring
• 12-volt unit with 1 connector, 4 terminals, and quick-connect outlet
• Outlet outside diameter: 0.375 in.
• Maximum pressure: 78 psi; minimum pressure: 58 psi
• Housing material: plastic with nitrile rubber gasket/seal
• Fuel level sender resistance: 780 ohms empty, 20 ohms full

Detailed Description

Built for higher-mileage and earlier model vehicles, Sparta PN3236 is backed by OE fuel system expertise through Delphi distribution. This fuel pump module assembly is engineered for direct replacement service in the fuel tank and is configured for gasoline use with a blade-terminal electrical connection and female trapezoid connector. Sparta PN3236 is a practical choice for restoring fuel delivery and fuel level reporting in 2003-2007 Honda Accord and 2004-2008 Acura TL applications. This part cross-references Airtex Fuel Pumps E8513 for the same application.

What It Is Used For

• Restoring fuel pressure when the original pump is weak or failing
• Correcting hard-start, no-start, or stalling conditions tied to fuel delivery
• Replacing an inaccurate or nonresponsive fuel level sender
• Addressing fuel starvation caused by a worn in-tank pump module
• Replacing a leaking seal or deteriorated internal module components

Installation Notes and Tips

Install this module in the fuel tank only and verify the connector shape, terminal count, outlet style, and sender resistance before installation. The package includes the fuel pump module assembly with float arm, seal, lock ring, and instruction sheet; mounting hardware and wire harness are not included. Confirm vehicle-specific fitment for 2003-2007 Honda Accord and 2004-2008 Acura TL before service.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for earlier model, higher-mileage vehicles where fit and fuel system performance matter. PN3236 is a standard replacement part built to OE-style specifications for direct-fit service.
