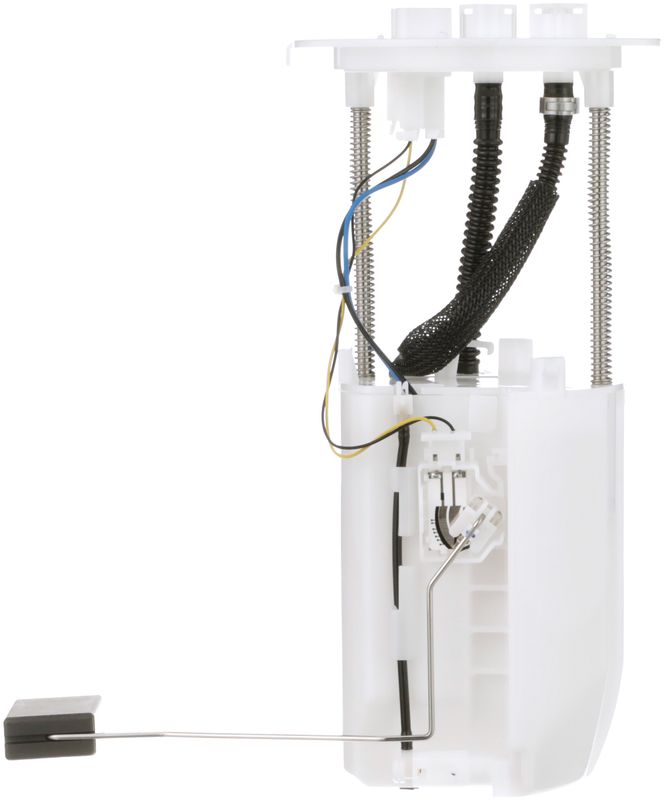

Sparta PN3238 Fuel Pump Module Assembly

Fuel Pump Module for Tacoma

Sparta PN3238 is a standard replacement fuel pump module assembly for select Toyota Tacoma applications. It is built for in-tank gasoline systems and includes the fuel sending unit, strainer, fuel filter, gasket/seal, and float arm for a complete service replacement.

Key Features

• Fits 2005-2016 Toyota Tacoma, in-tank fuel system
• Electric turbine pump design with 12-volt operation
• Fuel sending unit included for accurate fuel level reporting
• Includes strainer, fuel filter, and nitrile rubber seal
• Specific-fit, standard replacement module
• Female connector with 1 connector, 4 male terminals
• Push-in outlet design with 2 outlets
• Average flow rating: 26; maximum pressure: 78

Detailed Description

Sparta PN3238 is a fuel pump module assembly engineered for gasoline-powered Toyota Tacoma trucks that use an in-tank pump setup. The assembly uses an electric turbine pump design and is supplied with the fuel sending unit, helping restore fuel delivery and fuel level signal performance in one service part. The module also includes the internal strainer, fuel filter, gasket/seal, and float arm, which supports a more complete repair on higher-mileage and earlier-model vehicles.

Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for fit and performance on applications like the Toyota Tacoma. This part cross-references Airtex Fuel Pumps E8756M and Carter P76605M for the same application. PN3238 is a direct-fit replacement for 2005-2016 Toyota Tacoma fuel pump module service needs.

What It Helps Fix

• Hard starting caused by weak fuel pressure
• Engine stalling from inconsistent fuel delivery
• Fuel gauge readings that are inaccurate or intermittent
• Loss of power under load from a failing pump module
• Fuel starvation issues in an aging Tacoma in-tank system

Installation Notes and Tips

PN3238 is a specific-fit, in-tank module for gasoline applications. Verify connector shape, terminal count, outlet style, and tank configuration before installation. The package includes the module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Clean the tank opening and inspect the sealing surface before installing the new gasket.

Quality Assurance

Sparta fuel system parts are backed by Delphi distribution and OE-focused engineering knowledge. PN3238 is built as a standard replacement module for the listed Toyota Tacoma applications, with components selected to support proper fuel delivery and sender operation.
