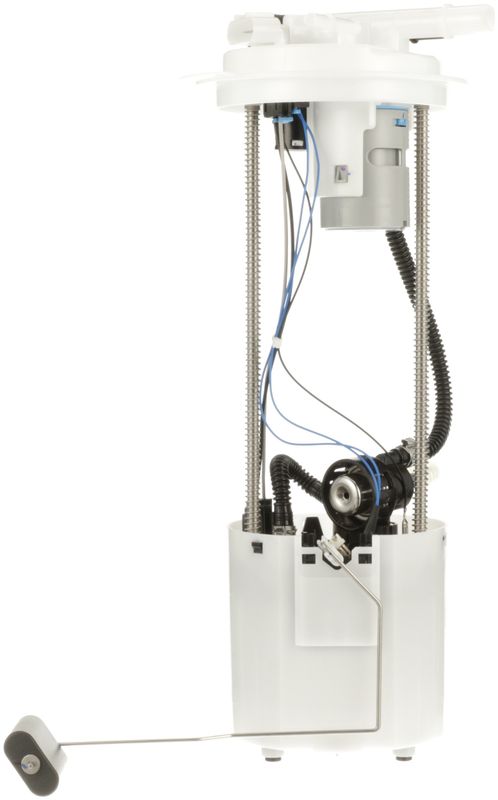

Sparta PN3240 Fuel Pump Module Assembly
| Brand | Sparta PN3240 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 81 |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 3 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 62 |
| Fits | Chevrolet and GMC · 18 vehicles |
OE-supplier backed. Distributed by Delphi, with fit and performance know-how from OE fuel experts.
Specific fit. A standard replacement fuel pump module assembly for a direct application.
Complete module. Includes the fuel sending unit, regulator, strainer, filter, seal, and float arm.
Cross-references Airtex Fuel Pumps E3777M, Bosch 69445 and Carter P76740M for the same application. See all 34.
Fuel Pump Module Assembly for GM Trucks
Sparta PN3240 is a specific-fit fuel pump module assembly for select Chevrolet Silverado 1500, Silverado 2500 HD, Silverado 3500 HD, GMC Sierra 1500, Sierra 2500 HD, and Sierra 3500 HD applications. Built for gasoline systems, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor for a complete in-tank replacement.
Key Features
- Specific-fit fuel pump module assembly for 2009-2013 Chevrolet Silverado 1500 and GMC Sierra 1500
- Fits 2009-2010 Chevrolet Silverado 2500 HD, Silverado 3500 HD, Sierra 2500 HD, and Sierra 3500 HD
- 12-volt electric turbine pump with 62-81 psi operating range
- Average flow rating of 21 and average current draw of 15
- Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
- In-tank design with quick-connect outlet and oval female connector
- Plastic housing with nitrile rubber seal material
- Fuel tank pressure sensor included
Detailed Description
Sparta PN3240 is a standard replacement fuel pump module assembly engineered for gasoline-powered GM trucks that require an in-tank module with integrated fuel delivery and level-sensing components. It is built with a turbine-style electric pump, 3-terminal male connection, and 3 outlet ports, and it uses a quick-connect outlet for service-friendly installation. Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for higher-mileage and earlier-model vehicles where correct fit and dependable fuel system performance matter. This part cross-references Bosch 69445 and Airtex E3777M for the same application.
Compatible vehicle coverage includes 2009-2013 Chevrolet Silverado 1500 and GMC Sierra 1500, plus 2009-2010 Chevrolet Silverado 2500 HD, Silverado 3500 HD, GMC Sierra 2500 HD, and GMC Sierra 3500 HD. If you are replacing a failing GM truck fuel pump module assembly, PN3240 provides the core components needed for a direct service replacement.
Common Problems This Part Can Help Solve
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery loss inside the tank
- Incorrect fuel level readings from a worn sending unit
- Fuel pressure regulation issues in the module assembly
- Fuel starvation under load from a failing pump or clogged internal strainer
Installation Notes and Tips
Confirm the vehicle’s fuel system configuration, connector style, and tank application before installation. This module is specific fit and is designed for in-tank use on gasoline applications only. The package includes the module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Inspect the tank, electrical connector, and fuel lines for wear or contamination before installing the new module.
Quality Assurance
Sparta fuel system components are backed by Delphi’s OE fuel-supply expertise, with a focus on fit and performance for the listed GM truck applications. PN3240 is built as a standard replacement module for direct service use.
| Year | Make | Model | Body Type | Bed Length | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2013 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2012 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2012 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2011 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2011 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2010 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2010 | Chevrolet | Silverado 2500 HD | — | — | 6.0L | V8 | — | N/A | — |
| 2010 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | — | 6.0L | V8 | GAS | N/A | — |
| 2010 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2010 | GMC | Sierra 2500 HD | — | — | 6.0L | V8 | — | N/A | — |
| 2010 | GMC | Sierra 3500 HD | Standard Cab Pickup | — | 6.0L | V8 | GAS | N/A | — |
| 2009 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2009 | Chevrolet | Silverado 2500 HD | — | — | 6.0L | V8 | — | N/A | — |
| 2009 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | — | 6.0L | V8 | — | N/A | — |
| 2009 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.3L | V6 | — | N/A | — |
| 2009 | GMC | Sierra 2500 HD | — | — | 6.0L | V8 | — | N/A | — |
| 2009 | GMC | Sierra 3500 HD | Standard Cab Pickup | — | 6.0L | V8 | — | N/A | — |
