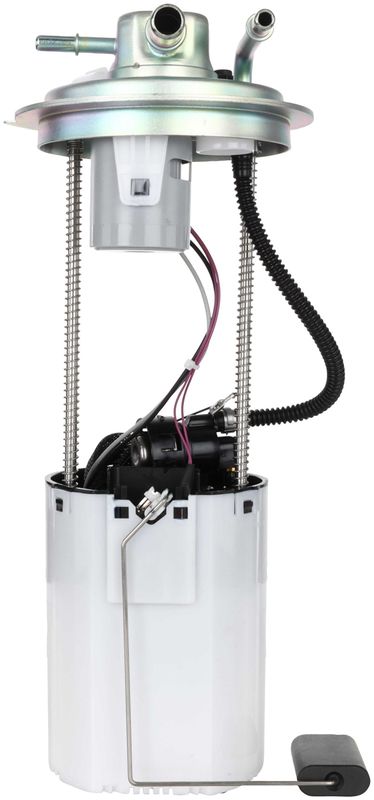

Sparta PN3245 Fuel Pump Module Assembly

Fuel Pump Module Assembly for 2009 GM Vans

The Sparta PN3245 fuel pump module assembly is a specific-fit, in-tank replacement for select 2009 Chevrolet Express and GMC Savana vans. Built for gasoline applications, it combines the pump, sending unit, regulator, strainer, fuel filter, and tank pressure sensor in one assembly for a direct service replacement.

Key Features

• Specific-fit fuel pump module assembly for 2009 Chevrolet Express 1500, Express 2500, and Express 3500
• Also fits 2009 GMC Savana 1500, Savana 2500, and Savana 3500
• 12-volt electric turbine pump with an average flow rating of 37
• In-tank design for gasoline fuel systems
• Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and fuel tank pressure sensor
• Quick-connect outlet with 3 outlets, 1 connector, oval connector shape, and blade terminals
• Standard replacement grade with plastic housing and nitrile rubber seal material
• Maximum pressure rating of 80 and minimum pressure rating of 54

Detailed Description

Sparta PN3245 is a fuel pump module assembly engineered for earlier model, higher-mileage vehicles and backed by Delphi distribution expertise in OE fuel system coverage. This assembly is built for gasoline use and is designed as a direct replacement for the original in-tank module on 2009 Chevrolet Express and GMC Savana vans. It uses a turbine-style electric pump, includes the fuel sending unit and regulator, and arrives with the pump, instruction sheet, strainer, fuel filter, and gasket/seal for a complete service-focused repair.

This part cross-references Four Seasons 66081 for the same application. Sparta PN3245 is a practical choice when servicing a 2009 Chevrolet Express 1500 fuel pump module assembly, a 2009 Chevrolet Express 2500 fuel pump module assembly, or a 2009 GMC Savana 3500 in-tank fuel pump replacement.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge errors related to a failing sending unit
• Low fuel pressure conditions in gasoline vans
• Check engine concerns tied to tank pressure sensor or fuel system performance

Installation Notes and Tips

Install PN3245 in the fuel tank using the correct vehicle-specific procedure for the 2009 Chevrolet Express and GMC Savana platform. Verify connector style, outlet configuration, and pressure requirements before installation. Because mounting hardware and lock ring are not included, reuse or source the required vehicle-specific hardware as needed. Always confirm the tank is clean and inspect the fuel lines and electrical connector before final assembly.

Quality Assurance

Sparta is distributed through Delphi, an OE fuel system supplier, and this module is positioned as a standard replacement part for specific-fit service work. PN3245 is built to match the application requirements for the listed Chevrolet and GMC vans.
