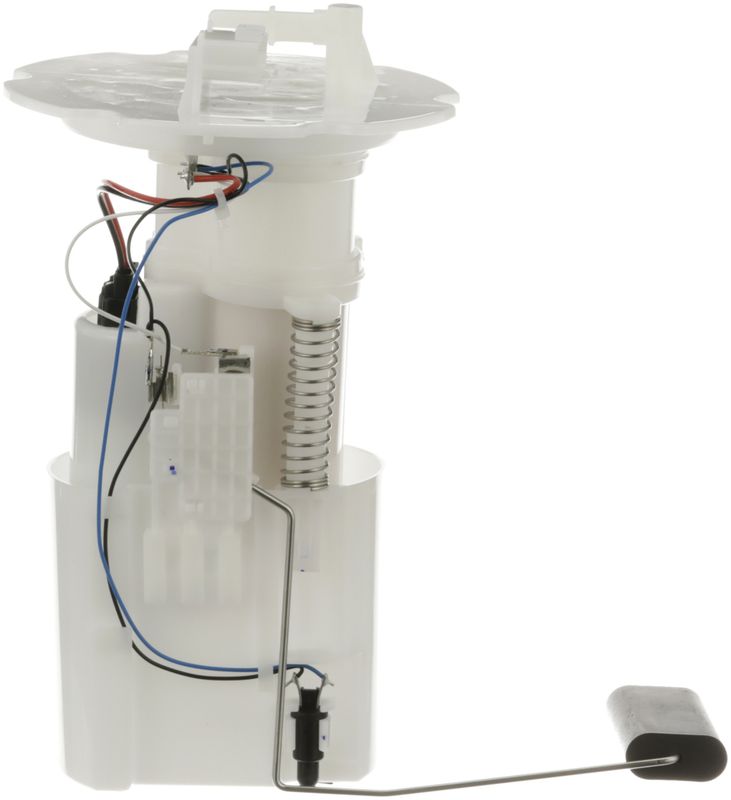

Sparta PN3246 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Nissan and INFINITI

Sparta PN3246 is a specific-fit fuel pump module assembly for gasoline applications, built for higher-mileage and earlier model vehicles. It includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank replacement.

Compatible with 2003-2009 Nissan 350Z, 2003-2007 INFINITI G35, 2006-2008 INFINITI M35, 2006-2008 INFINITI M45, and 2008 INFINITI G37. Sparta PN3246 is distributed by Delphi, an OE full-line fuel supplier, and is engineered with OE-focused fit and performance in mind.

Key Features

• Part number: PN3246
• Fuel pump module assembly for in-tank gasoline systems
• Specific fit for listed Nissan and INFINITI applications
• 12-volt electric turbine pump design
• Fuel sending unit included
• Regulator included
• Strainer and fuel filter included
• Gasket/seal included with nitrile rubber material
• Quick-connect outlet design with 2 outlets
• Standard replacement grade
• Plastic housing
• Average flow rating: 26
• Maximum pressure: 80; minimum pressure: 51

Detailed Description

Sparta PN3246 is a fuel pump module assembly for gasoline vehicles that require an in-tank, specific-fit replacement. It uses an electric turbine pump design, 12-volt operation, and a blade terminal setup with a single female connector. The assembly includes the fuel sending unit, regulator, internal strainer, fuel filter, and seal, helping restore fuel delivery and tank level reporting in one service part. This part cross-references Airtex Fuel Pumps E8534M and Bosch 69868 for the same application.

For Nissan 350Z and INFINITI G35, G37, M35, and M45 applications, PN3246 provides the correct module-style replacement for vehicles that need a standard replacement fuel system component. The outlet uses a quick-connect design, and the module is built with a plastic housing and 5-terminal male blade configuration.

Common Issues This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from inconsistent fuel pressure
• Inaccurate fuel level readings from a worn sending unit
• Fuel starvation under load from a failing in-tank pump
• Fuel system noise or reduced output from an aging module

Installation Notes and Tips

PN3246 is an in-tank fuel pump module assembly with a specific fit, so confirm the vehicle application before installation. The package includes the module, float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Inspect the tank opening, electrical connector, and fuel lines before assembly, and replace any worn sealing surfaces to help ensure a proper installation.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for higher-mileage and earlier model vehicles where fit and fuel system performance matter. PN3246 is built as a standard replacement fuel pump module assembly for the listed Nissan and INFINITI applications.
