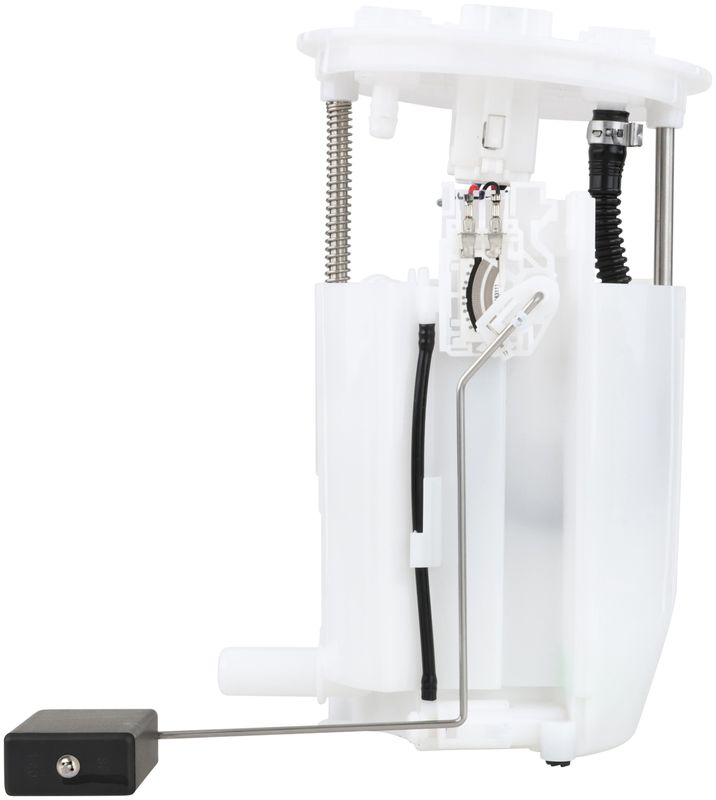

Sparta PN3254 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Lexus IS250 and IS350

Sparta PN3254 is a standard replacement fuel pump module assembly for specific 2006-2013 Lexus IS250 and IS350 applications. It includes the fuel sending unit, strainer, and fuel filter, with an in-tank electric turbine pump built for 12-volt gas systems.

Key Features

• Specific fit fuel pump module assembly for 2006-2013 Lexus IS250 and 2006-2013 Lexus IS350
• Electric in-tank turbine pump design
• Fuel sending unit included
• Fuel filter and internal strainer included
• Quick-connect outlet with 2 outlets and 1 connector
• Plastic housing with nitrile rubber gasket or seal included
• 12V gas application with 73 to 94 maximum pressure range
• Average flow rating of 31 and average current draw of 7

Detailed Description

Sparta PN3254 is built as a standard replacement fuel pump module assembly for higher-mileage and earlier-model vehicles, backed by Delphi’s OE fuel system expertise. It is configured for in-tank installation and includes the fuel sending unit, electric pump, fuel filter, strainer, and seal components needed for a direct-fit service replacement on the Lexus IS250 and Lexus IS350. The module uses a trapezoid female connector, male pin terminals, and quick-connect outlet design for a specific-fit installation. This part cross-references Carter P76896M for the same application.

What This Part Helps Address

• Hard starting caused by weak fuel delivery
• Fuel pressure loss under load
• Inaccurate fuel level readings from a worn sending unit
• Engine hesitation from restricted pump flow
• Fuel starvation from a failing in-tank pump module

Installation Notes and Tips

Install PN3254 in the fuel tank using the included gasket or seal and verify connector, outlet, and terminal orientation before assembly. Confirm the vehicle application against the exact model year and inspect the tank opening, wiring, and fuel lines for wear before completing the repair. This module is listed for Fits 2006-2013 Lexus IS250 and Fits 2006-2013 Lexus IS350.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for fit and performance on higher-mileage and earlier-model vehicles. PN3254 is a specific-fit replacement fuel pump module assembly for gas applications.
