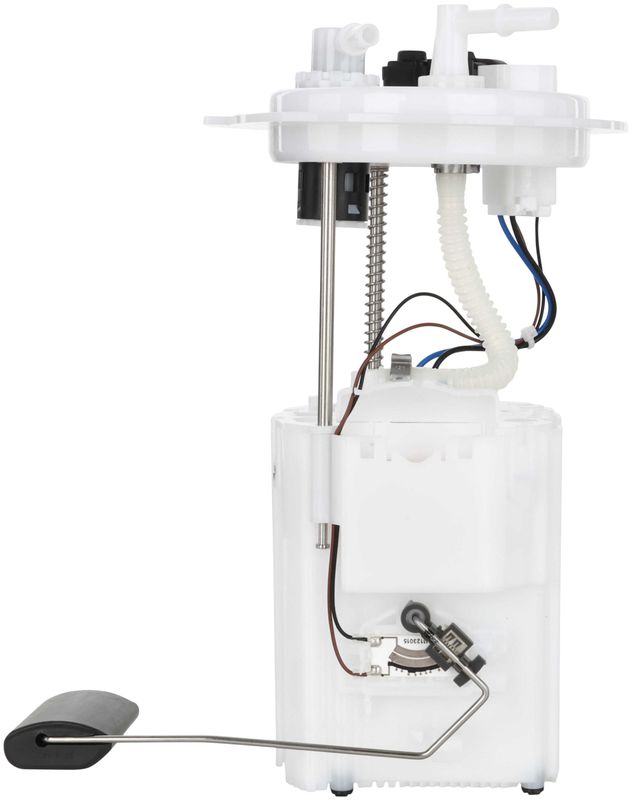

Sparta PN3255 Fuel Pump Module Assembly
| Brand | Sparta PN3255 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 50 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard replacement |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 200 |
| Resistance Ohms Full | 8 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 44 |
| Fits | Hyundai · 3 vehicles |
OE-supplier backed. Distributed by Delphi, with fuel-system expertise behind the brand.
Specific-fit module. A standard replacement fuel pump assembly for a precise install.
In-tank turbine design. Built with a regulator, strainer, and fuel filter for complete fuel delivery.
Cross-references Airtex Fuel Pumps E9026M, Carter P76719M and DENSO Auto Parts 951-0007 for the same application. See all 9.
Sparta PN3255 Fuel Pump Module Assembly
Sparta PN3255 is a specific-fit in-tank fuel pump module assembly for gasoline applications. It is listed for 2008-2010 Hyundai Sonata and includes the fuel sending unit, regulator, strainer, fuel filter, and fuel tank pressure sensor for a complete replacement setup.
- Specific-fit fuel pump module assembly for 2008-2010 Hyundai Sonata
- 12-volt electric turbine pump with 44-50 psi operating range
- Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
- In-tank design with quick-connect outlet and 1 electrical connector
- Plastic housing with nitrile rubber seal material
- Package contents include pump, bracket, hose clamps, hoses, splices, terminal hardware, washers, and instruction sheet
Application and Fitment
Fits 2008-2010 Hyundai Sonata, N/A. This Sparta PN3255 fuel pump module assembly cross-references Airtex E9026M for the same application.
For Hyundai Sonata fuel system service, PN3255 provides the core components needed in one assembly. The module is built for gasoline use, uses a blade terminal design with a female connector, and features two quick-connect outlets for straightforward fuel line connection. The included sending unit and pressure sensor support fuel level and system monitoring functions in the tank.
What It Helps Fix
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge inaccuracies from a worn sending unit
- Fuel pressure regulation issues in the tank module
- Fuel system contamination concerns addressed by the included strainer and filter
Installation Notes and Tips
Install this module in the fuel tank using the correct vehicle-specific procedure for the 2008-2010 Hyundai Sonata. Verify connector shape, outlet style, and terminal count before installation. The package includes the pump assembly, bracket, hoses, clamps, splices, and terminal hardware, but it does not include a lock ring or mounting hardware.
Quality Assurance
Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for higher-mileage and earlier-model vehicles. PN3255 is a standard replacement fuel pump module assembly built to OE-focused fit and performance expectations for the listed Hyundai Sonata applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | — | 2.4L | L4 | N/A | — |
| 2009 | Hyundai | Sonata | SE | 2.4L | L4 | N/A | — |
| 2008 | Hyundai | Sonata | — | 2.4L | L4 | N/A | — |
