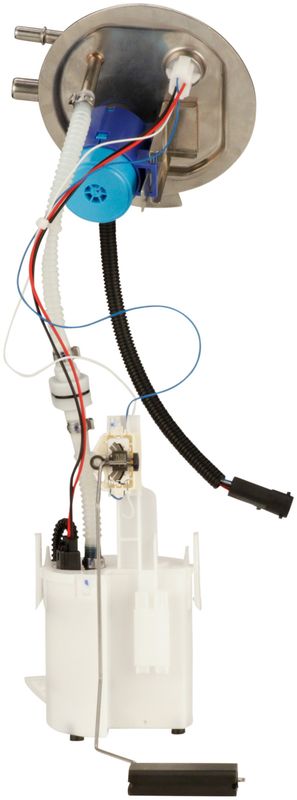

Sparta PN3257 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Ford Super Duty

Sparta PN3257 is a specific-fit fuel pump module assembly for gas-powered 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty applications. Built as a standard replacement, it includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm for a complete in-tank fuel delivery service.

Key Features

• Specific-fit fuel pump module assembly for 2005-2007 Ford F-250 Super Duty and F-350 Super Duty
• 12-volt electric turbine pump design for in-tank installation
• Includes fuel sending unit, regulator, strainer, seal, and float arm
• Gasoline application with 44-62 psi pressure range
• Quick-connect outlet design with 2 outlets and 0.375 in. outlet outside diameter
• Plastic housing with nitrile rubber gasket/seal material
• 4-terminal, female connector with round connector shape

Detailed Description

Sparta PN3257 is engineered for higher-mileage and earlier-model vehicles and is distributed through Delphi, an OE fuel system supplier. This fuel pump module assembly is built for direct replacement service on Ford F-250 Super Duty and Ford F-350 Super Duty trucks from 2005 through 2007, with the fuel sending unit and regulator included to simplify fuel system restoration. The in-tank electric turbine pump is rated for gasoline use, with an average flow rating of 16 and average current draw of 10, supporting consistent fuel delivery within the specified 44 to 62 psi operating range. This part cross-references Bosch 66064 and Airtex E2344M for the same application.

What It Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine hesitation or stalling under load
• Fuel gauge readings that are inaccurate due to sender wear
• Low fuel pressure from a failing in-tank pump module
• Fuel system service needs on aging Ford Super Duty trucks

Installation Notes and Tips

Fits 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty, in-tank. Confirm the connector style, outlet type, and tank configuration before installation. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Replace the seal during service and verify pressure and sender operation after installation.

Quality Assurance

Sparta fuel system components are backed by Delphi distribution and OE-focused engineering knowledge for fit and performance on higher-mileage and earlier-model vehicles. PN3257 is a standard replacement fuel pump module assembly built for direct-fit service in the listed Ford Super Duty applications.
