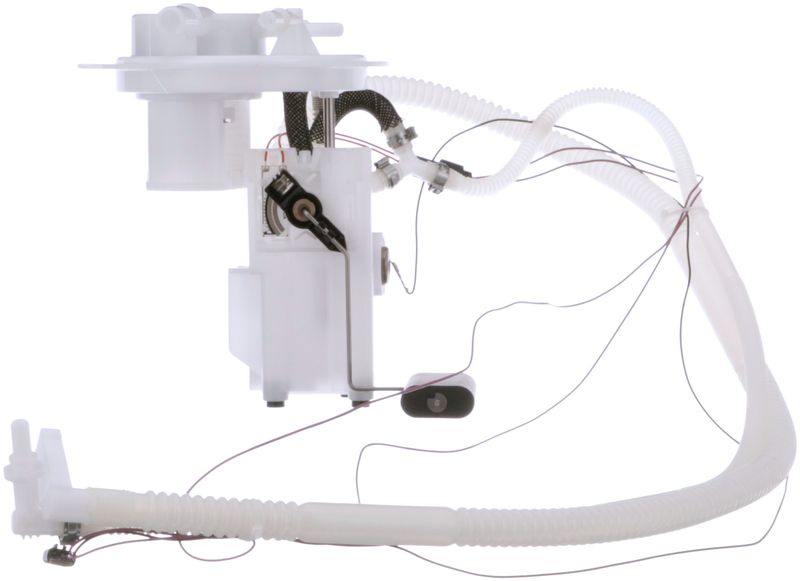

Sparta PN3276 Fuel Transfer Unit - Right
| Brand | Sparta PN3276 |
|---|---|
| Position | Right |
| Inlet Outside Diameter | 7.9 |
| Outlet Outside Diameter | 0.375 |
| Outlet Outside Diameter | 9.5 |
| Fuel Type | Gas |
| Nozzle Shut Off Valve Included | No |
| Regulator Included | Yes |
| Self Priming | No |
| Suction Pipe Included | No |
| Metered | No |
| Terminal Type | Blade |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Strainer Included | No |
| Flow Rate | 0 |
| Inlet Type | Quick connect |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| Hose Material | Nylon |
| In Tank or External | In tank |
| Resistance Ohms Empty | 1050.0 |
| Resistance Ohms Full | 70.0 |
| Fuel Tank Pressure Sensor Included | No |
| Hose Outside Diameter | 8 |
| Package Contents | Fuel transfer unit w/float arm, seal, instruction sheet |
| Fits | Chrysler · 3 vehicles |
OE supplier pedigree. Backed by Delphi, the OE fuel experts.
In-tank fuel transfer unit. Built for right-side placement in the tank.
Regulated fuel delivery. Includes an integrated regulator for consistent operation.
Cross-references Four Seasons 67672, Spectra Premium SP7052M and US Motor Works USEP7194M for the same application. See all 15.
Fuel Transfer Unit for Chrysler Pacifica
Sparta PN3276 is an in-tank fuel transfer unit for the right side of select Chrysler Pacifica models. It is built for gasoline applications and includes a float arm, seal, and instruction sheet for a direct replacement service.
Key Features
- Fits 2004-2006 Chrysler Pacifica, right
- Fuel transfer unit for gasoline systems
- In-tank design with quick-connect inlet and outlet connections
- Includes regulator, gasket or seal, and float arm
- Plastic housing with nylon hose material
- 3-terminal blade connection with male connector and female terminals
- Sparta PN3276 cross-references Spectra Premium SP7052M and US Motor Works USEP7194M for the same application
Product Details
Sparta PN3276 is a right-side fuel transfer unit engineered for 2004-2006 Chrysler Pacifica vehicles. Distributed by Delphi, the OE fuel supplier, Sparta focuses on higher-mileage and earlier model applications where correct fit and dependable fuel delivery matter. This unit uses an in-tank layout, quick-connect inlet and outlet ports, and a built-in regulator to support proper fuel system operation. The assembly includes the float arm and seal needed for service replacement.
Common Replacement Reasons
- Fuel level reading problems on the right side tank module
- Fuel delivery issues related to a worn transfer unit
- Damaged quick-connect fittings or housing
- Seal leakage at the tank module interface
- Electrical connection faults at the 3-terminal blade connector
Installation Notes
Verify right-side placement before installation and confirm the inlet and outlet sizes match the original unit. Inspect the tank opening, electrical connector, and fuel lines for wear or contamination before reassembly. Because this unit is in-tank and uses quick-connect fittings, careful handling of the seal and connector is important during service.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for applications where OE-level fit and performance are important. Part number PN3276 is listed for 2004-2006 Chrysler Pacifica, right-side service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Chrysler | Pacifica | 3.8L | V6 | Right | — |
| 2005 | Chrysler | Pacifica | 3.8L | V6 | Right | — |
| 2004 | Chrysler | Pacifica | 3.5L | V6 | Right | — |
