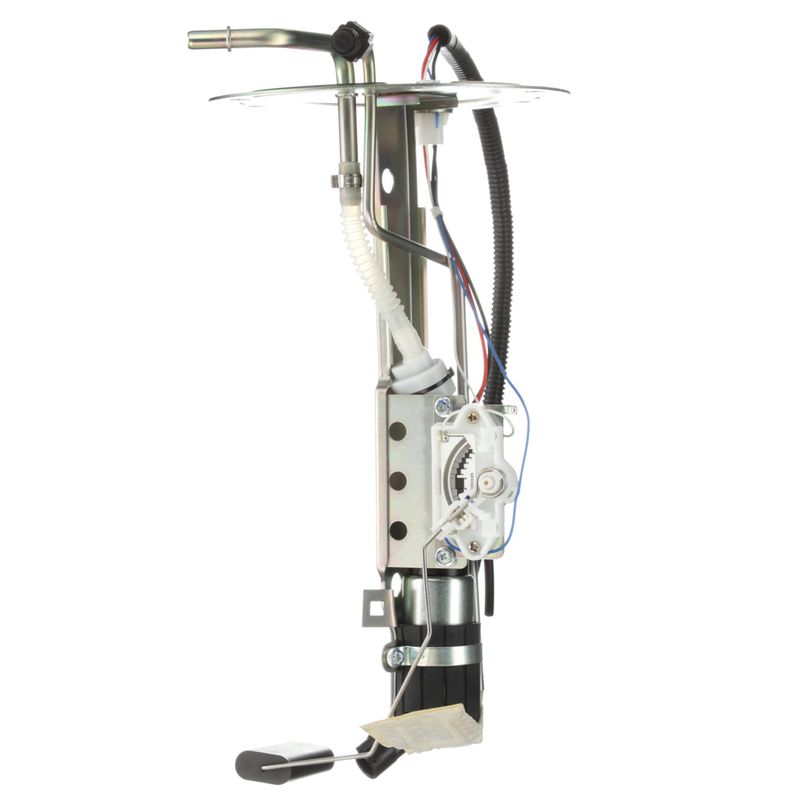

Sparta PN4019 Fuel Pump Hanger Assembly

Fuel Pump Hanger Assembly for Ford E-Series

Sparta PN4019 is a standard replacement fuel pump hanger assembly for select Ford E-Series vans. It combines the in-tank electric pump, fuel sending unit, strainer, seal, and hanger components in one service assembly for direct replacement on confirmed applications.

Key Features

• Specific-fit fuel pump hanger assembly for select 2004-2008 Ford E-250 and E-350 applications
• In-tank electric turbine pump with 12.0-volt operation
• Fuel sending unit included with 15.0 ohms empty and 160.0 ohms full resistance
• Metal construction with nitrile rubber gasket or seal material
• Quick-connect outlet design with 0.375 in. outside diameter
• Includes strainer, mounting hardware, seal, float arm assembly, nuts, washers, and retainer clips
• Average flow rating of 26.0 and operating pressure range of 44 to 109

Detailed Description

Sparta PN4019 is built for higher-mileage and earlier-model vehicles, drawing on Delphi OE fuel system expertise for fit and performance-focused replacement. This fuel pump hanger assembly is designed for gasoline applications and uses a turbine-style electric pump mounted in the tank. It includes the fuel sending unit, external strainer, gasket or seal, and the hardware listed in the package contents for a complete service replacement on the specified Ford E-Series vans. This part cross-references Airtex E2437S for the same application.

Compatible With 2004-2008 Ford E-250, 2004-2008 Ford E-350 Super Duty, 2004-2005 Ford E-350 Club Wagon, 2004 Ford E-150, and 2004 Ford E-150 Club Wagon. If you are replacing a worn Ford E-250 fuel pump hanger assembly or servicing a Ford E-350 Super Duty fuel delivery issue, PN4019 provides the correct specific-fit configuration for these vehicles.

What It Helps Fix

• Hard starting caused by weak or failing in-tank fuel pump output
• Fuel gauge inaccuracies related to a worn sending unit
• Fuel starvation from a restricted or damaged strainer
• Intermittent drivability issues from inconsistent fuel pressure
• Leaks at the tank module seal or hanger assembly interface

Installation Notes and Tips

Verify the vehicle’s year, model, and fuel system configuration before installation. This assembly uses a female round connector, male pin terminals, and quick-connect outlet fittings, so confirm connector and line style match the original unit. Replace the seal during service, inspect the tank opening and fuel lines for contamination, and follow the included instruction sheet for proper module positioning and float arm alignment.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for replacement use on earlier-model, higher-mileage vehicles where correct fit and fuel system performance matter. PN4019 is a standard replacement fuel pump hanger assembly built for the listed Ford E-Series applications.
