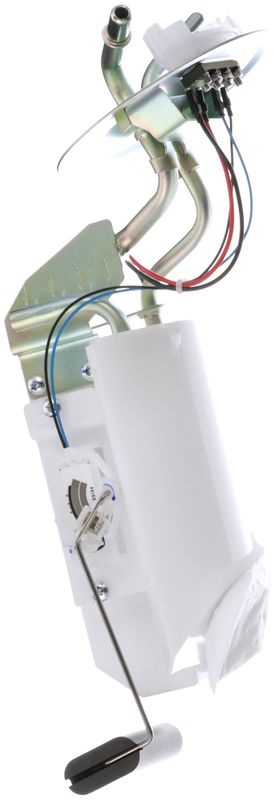

Sparta PN4069 Fuel Pump Hanger Assembly

Fuel Pump Hanger Assembly for Ford Trucks

Sparta PN4069 is a standard replacement fuel pump hanger assembly for select Ford full-size trucks with a steel aft axle tank. It is built for in-tank electric fuel delivery and includes the hanger assembly with float arm, seal, splices, wire harness, and instruction sheet.

Compatible with 1990-1991 Ford F-150, 1990-1991 Ford F-250, and 1990-1991 Ford F-350 applications that use the steel aft axle tank configuration. The Sparta fuel pump hanger assembly PN4069 is distributed through Delphi-backed OE fuel system expertise for higher-mileage and earlier model vehicles.

Key Features

• Part number: PN4069
• Fuel type: Gas
• In-tank electric fuel pump hanger assembly
• Maximum pressure: 116.0
• Voltage: 13.0
• Quick connect outlet with 0.325 outside diameter
• 4-terminal blade connection, male terminals
• Internal strainer included
• Gasket or seal included
• Float arm included in package contents

Detailed Description

Sparta PN4069 is a standard replacement fuel pump hanger assembly engineered for gasoline fuel systems that require an in-tank electric pump setup. It features a quick-connect outlet, internal strainer, and a 4-terminal blade-style electrical connection, along with a seal for proper tank installation. The assembly is specified for 1990-1991 Ford F-150, Ford F-250, and Ford F-350 models with the steel aft axle tank, making it a direct-fit option for these truck applications.

This fuel pump hanger assembly is suited for restoring fuel delivery performance in older Ford trucks where the original hanger, float arm, or electrical connections have worn over time. Part number PN4069 is also a useful reference when searching for a Ford F-150 fuel pump hanger assembly, Ford F-250 fuel pump hanger assembly, or Ford F-350 fuel pump hanger assembly for the same configuration.

This part cross-references Spectra Premium SP33A1H for the same application.

Common Issues This Part Can Address

• Fuel delivery loss from a worn in-tank pump hanger assembly
• Erratic fuel level readings caused by a damaged float arm or sender-related wear
• Hard starting or stalling related to inconsistent fuel supply
• Electrical connection problems at the pump hanger terminals
• Fuel seepage at the tank interface when the seal is no longer sealing properly

Installation Notes and Tips

Verify tank style before ordering: this assembly is for vehicles with the steel aft axle tank configuration. Confirm outlet style, terminal count, and electrical connector layout against the original unit before installation. Replace the seal during service and inspect the tank opening, wiring, and fuel lines for wear or corrosion before reassembly.

Quality Assurance

Sparta is distributed by Delphi, an OE fuel system supplier with experience in fit and performance requirements for earlier model vehicles. PN4069 is a standard replacement part built for the listed Ford truck applications.
