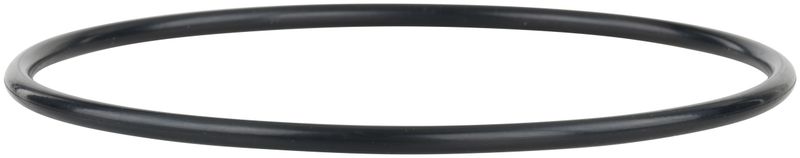

Sparta PN9009 Fuel Pump Tank Seal

Fuel Tank Seal for Nissan Applications

The Sparta PN9009 fuel pump tank seal is a round O-ring style seal made from black polymer for fuel tank service. It is built for higher-mileage and earlier-model vehicles, with OE-informed fit and performance support from Delphi distribution.

Use this fuel tank seal when servicing the fuel pump module or tank opening on select Nissan Frontier, Altima, Maxima, Sentra, 200SX, Pickup, 300ZX, Pathfinder, D21, and Pulsar NX applications. The PN9009 is sized with a 122 mm inside diameter, 130 mm outside diameter, and 30 mm thickness.

Key Features

• Sparta PN9009 fuel pump tank seal for fuel system sealing service
• Black polymer construction with round O-ring seal type
• Inside diameter: 122 mm (4.8 in.)
• Outside diameter: 130 mm (5.1 in.)
• Thickness: 30 mm (1.17 in.)
• Includes fuel tank lock ring and instruction sheet
• Cross-references Airtex Fuel Pumps TS8027 and Bosch 68061 for the same application

Detailed Description

Sparta PN9009 is a fuel pump tank seal designed for sealing the fuel tank opening where the pump module or sender assembly mounts. Its polymer construction and O-ring profile help maintain a secure seal at the tank interface, while the round rim shape supports consistent seating during service. This part is a direct-fit style sealing component for select Nissan fuel system repairs, including Nissan Frontier, Altima, Maxima, Sentra, 200SX, Pickup, 300ZX, Pathfinder, D21, and Pulsar NX models across the listed years. The PN9009 part number is also useful when cross-checking replacement options during fuel tank service.

What It Helps Address

• Fuel odor around the tank opening after pump module service
• Seepage at the fuel pump mounting seal
• Hard-to-seat or worn tank seal during fuel system repair
• Replacement needs on higher-mileage Nissan fuel tank assemblies
• Service work on older Nissan fuel delivery systems

Installation Notes and Tips

• Clean the tank flange and sealing surface before installation.
• Inspect the lock ring and mating surfaces for wear or damage.
• Seat the seal evenly to avoid twisting the O-ring during assembly.
• Verify the seal dimensions and application before reassembly.
• Follow the included instruction sheet during fuel tank service.

Quality Assurance

Sparta is distributed by Delphi, the OE full-line fuel supplier, and is positioned for higher-mileage and earlier-model vehicle service. The PN9009 fuel tank seal is built with OE-informed application coverage and fitment support for the listed Nissan models.
