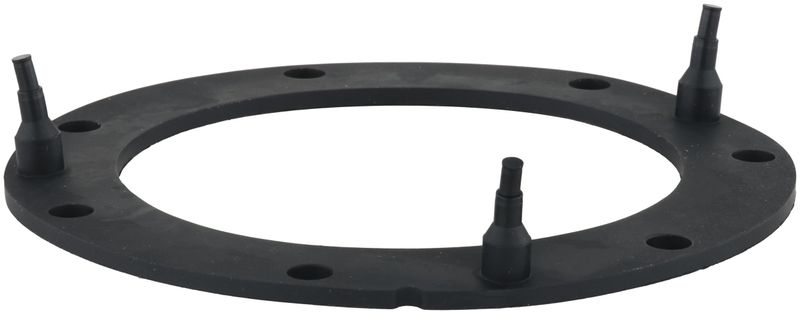

Sparta PN9010 Fuel Pump Tank Seal
| Brand | Sparta PN9010 |
|---|---|
| Material | Polymer |
| Color | Black |
| Inside Diameter | 3.33 |
| Inside Diameter | 84 |
| Thickness | 0.098 |
| Thickness | 2.49 |
| Outside Diameter | 108 |
| Outside Diameter | 4.251 |
| Rim Shape | Round |
| Seal Type | Flat |
| Package Contents | Tank seal |
| Fits | Lexus and Toyota · 39 vehicles |
OE-supplier pedigree. Backed by Delphiβs fuel-system expertise for dependable fit and performance.
Polymer seal. Resists fuel exposure while maintaining a tight tank seal.
Round flat profile. Helps deliver a secure, even sealing surface at the tank opening.
Cross-references Spectra Premium LO32, 4060030 and 4060087 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Tank Seal for Toyota and Lexus
The Sparta PN9010 fuel pump tank seal is a round, flat polymer seal made for sealing the fuel pump-to-tank interface on select Toyota and Lexus applications. It is sized with an 84 mm inside diameter, 108 mm outside diameter, and 2.49 mm thickness for a precise sealing fit.
Sparta, distributed by Delphi, is positioned for higher-mileage and earlier-model vehicles where correct fit and sealing performance matter. Part number PN9010 is a direct replacement option for service work on Toyota RAV4, 4Runner, Pickup, Corolla, Camry, and Lexus ES250 applications listed below.
Key Features
- Polymer construction with a black finish
- Round rim shape and flat seal design
- Inside diameter: 84 mm (3.33 in.)
- Outside diameter: 108 mm (4.251 in.)
- Thickness: 2.49 mm (0.098 in.)
- Package contents: tank seal
- Part number: PN9010
Detailed Description
This fuel pump tank seal is used at the tank opening to help maintain a secure seal between the fuel pump module and the fuel tank. The Sparta PN9010 is built for older and higher-mileage vehicles, with dimensions that support proper seating on the specified Toyota and Lexus fuel system applications. If you are servicing a Toyota RAV4 fuel pump tank seal, Toyota 4Runner fuel tank seal, or Toyota Pickup fuel pump seal, PN9010 provides a direct-fit sealing solution for the listed model years.
This part cross-references Spectra Premium LO32 for the same application.
Vehicle Fitment
- Fits 1996-2000 Toyota RAV4, N/A
- Fits 1985-1995 Toyota 4Runner, N/A
- Fits 1991-1995 Toyota Pickup, N/A
- Fits 1984-1989 Toyota Pickup, N/A
- Fits 1988-1992 Toyota Corolla, N/A
- Fits 1990-1991 Lexus ES250, N/A
- Fits 1987-1991 Toyota Camry, N/A
Installation Notes and Tips
- Confirm the seal dimensions match the tank opening before installation.
- Inspect the fuel pump flange, tank sealing surface, and retaining components for wear or damage.
- Clean the mating surfaces thoroughly to help the seal seat evenly.
- Replace the seal during fuel pump service whenever the original seal shows flattening, cracking, or hardening.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier with application knowledge focused on fit and performance for earlier-model and higher-mileage vehicles. PN9010 is built to OE-style dimensional requirements for the listed Toyota and Lexus applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Toyota | RAV4 | — | 2.0L | L4 | N/A | — |
| 1999 | Toyota | RAV4 | — | 2.0L | L4 | N/A | — |
| 1998 | Toyota | RAV4 | — | 2.0L | L4 | N/A | — |
| 1997 | Toyota | RAV4 | — | — | — | N/A | — |
| 1996 | Toyota | RAV4 | — | — | — | N/A | — |
| 1995 | Toyota | 4Runner | — | — | — | N/A | — |
| 1995 | Toyota | Pickup | — | — | — | N/A | — |
| 1994 | Toyota | 4Runner | — | — | — | N/A | — |
| 1994 | Toyota | Pickup | — | — | — | N/A | — |
| 1993 | Toyota | 4Runner | — | — | — | N/A | — |
| 1993 | Toyota | Pickup | — | — | — | N/A | — |
| 1992 | Toyota | 4Runner | — | — | — | N/A | — |
| 1992 | Toyota | Corolla | — | — | — | N/A | — |
| 1992 | Toyota | Pickup | — | — | — | N/A | — |
| 1991 | Lexus | ES250 | — | — | — | N/A | — |
| 1991 | Toyota | 4Runner | — | — | — | N/A | — |
| 1991 | Toyota | Camry | — | — | — | N/A | — |
| 1991 | Toyota | Corolla | — | — | — | N/A | — |
| 1991 | Toyota | Pickup | — | — | — | N/A | — |
| 1990 | Lexus | ES250 | — | — | — | N/A | — |
| 1990 | Toyota | 4Runner | — | — | — | N/A | — |
| 1990 | Toyota | Camry | — | — | — | N/A | — |
| 1990 | Toyota | Corolla | — | — | — | N/A | — |
| 1989 | Toyota | 4Runner | — | — | — | N/A | — |
| 1989 | Toyota | Camry | — | — | — | N/A | — |
| 1989 | Toyota | Corolla | — | — | — | N/A | — |
| 1989 | Toyota | Pickup | — | — | — | N/A | — |
| 1988 | Toyota | 4Runner | — | — | — | N/A | — |
| 1988 | Toyota | Camry | — | — | — | N/A | — |
| 1988 | Toyota | Corolla | — | — | — | N/A | — |
| 1988 | Toyota | Pickup | — | — | — | N/A | — |
| 1987 | Toyota | 4Runner | — | — | — | N/A | — |
| 1987 | Toyota | Camry | — | — | — | N/A | — |
| 1987 | Toyota | Pickup | SR5 | 2.4L | L4 | N/A | — |
| 1986 | Toyota | 4Runner | — | — | — | N/A | — |
| 1986 | Toyota | Pickup | SR5 | 2.4L | L4 | N/A | — |
| 1985 | Toyota | 4Runner | — | — | — | N/A | — |
| 1985 | Toyota | Pickup | SR5 | 2.4L | L4 | N/A | — |
| 1984 | Toyota | Pickup | SR5 | 2.4L | L4 | N/A | — |
