Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

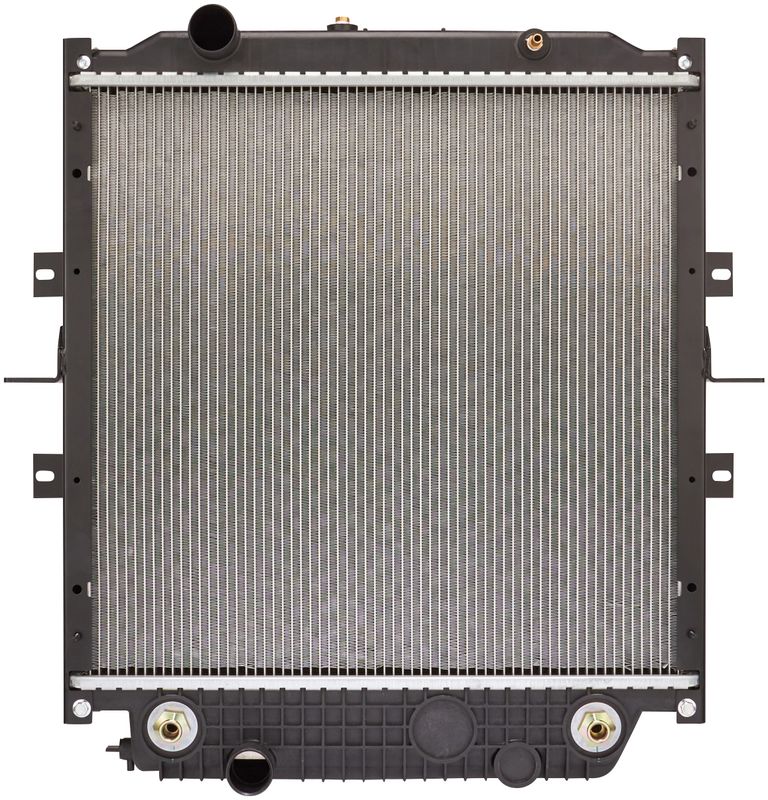

Spectra 2001-5110P Radiator
| Brand | Spectra 2001-5110P |
|---|---|
| Core Height | 25 |
| Core Height | 635 |
| Core Thickness | 2.1875 |
| Core Thickness | 56 |
| Core Width | 25.125 |
| Core Width | 638 |
| Core Material | Aluminum |
| Outlet Location | Bottom left |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plated |
| Transmission Oil Cooler Distance between Fittings | 18 |
| Transmission Oil Cooler Distance between Fittings | 457 |
| Radiator Cap Included | No |
| Core Row Quantity | 2 |
| Inlet Diameter | 2 |
| Inlet Diameter | 51 |
| Inlet Location | Top left |
| Outlet Diameter | 2 |
| Outlet Diameter | 51 |
| Engine Oil Cooler Included | No |
| Transmission Oil Cooler Plate Quantity | 6 |
| Down Flow Or Cross Flow Type | Down flow |
| Fits | Blue Bird · 5 vehicles |
OE-style replacement. Built to meet durability expectations for radiator replacement.
Integrated cooler. Includes a plated transmission oil cooler for added fluid management.
Aluminum core. Uses a two-row aluminum core with plastic tanks for familiar OE construction.
Cross-references 87001A, 1003777 and 1004056 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator Overview
Spectra Premium radiator part number 2001-5110P is built to meet OE-level durability expectations for cooling system replacement. It is a direct-fit radiator for the specified application and includes an integrated transmission oil cooler.
Key Features
- Aluminum core with plastic tanks for a common OE-style radiator construction.
- Down-flow design for the listed cooling system layout.
- Integrated transmission oil cooler with plated construction.
- Two-row core design for heat transfer support.
- Top-left inlet and bottom-left outlet locations for application-specific fitment.
Detailed Description
This Spectra radiator, part number 2001-5110P, is engineered for the cooling demands of the listed Blue Bird Vision School Bus application. The aluminum core and plastic tank construction follow a familiar OE-style layout, while the built-in transmission oil cooler adds an important fluid-cooling function for vehicles equipped with automatic transmissions. Core dimensions, inlet and outlet placement, and the down-flow configuration are matched to the application for proper replacement fitment.
This part cross-references Monroe Shocks & Struts (e.g., 87001A, 1003777) for the same application.
What It Is Used For
- Replacing a leaking or damaged radiator.
- Restoring coolant circulation and heat dissipation.
- Addressing transmission fluid temperature control through the integrated cooler.
- Correcting fitment issues caused by a mismatched radiator configuration.
Installation Notes and Tips
Verify core dimensions, inlet and outlet locations, and cooler connection layout before installation. Confirm that the vehicle uses the same down-flow configuration and transmission cooler arrangement as the replacement part. Part number 2001-5110P should be matched to the listed application before removal of the original radiator.
Quality Assurance
Spectra Premium designs its radiators to follow OE durability expectations for replacement use.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2017 | Blue Bird | Vision School Bus | 6.8L | V10 | — |
| 2016 | Blue Bird | Vision School Bus | 6.8L | V10 | — |
| 2015 | Blue Bird | Vision School Bus | 6.8L | V10 | — |
| 2014 | Blue Bird | Vision School Bus | 6.8L | V10 | — |
| 2013 | Blue Bird | Vision School Bus | 6.8L | V10 | — |
