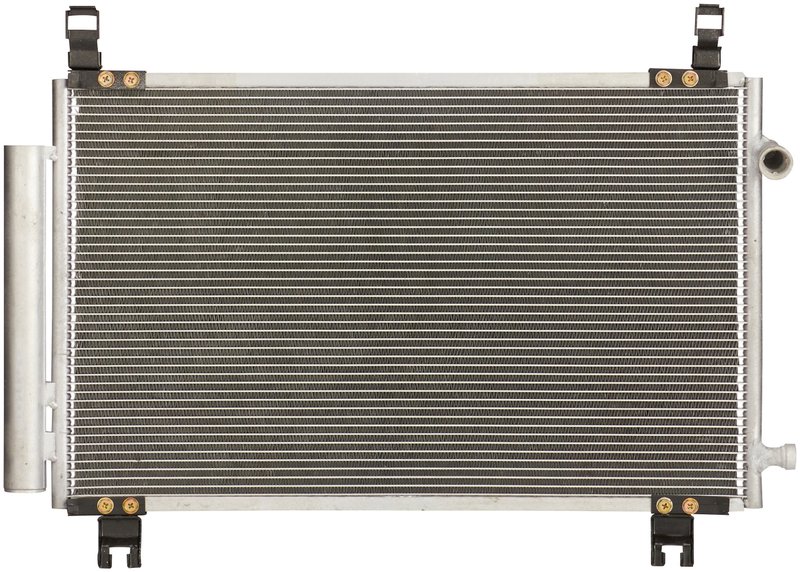

Spectra 7-30048 A/C Condenser

Spectra 7-30048 A/C Condenser Overview

The Spectra 7-30048 A/C condenser is a direct-fit replacement built for specific vehicle applications, including 2015 Toyota Yaris and 2017-2019 Toyota Yaris. It uses an aluminum parallel-flow core with female block fittings and includes a drier for a cleaner, more complete condenser replacement.

Engineered to match OEM construction style, this condenser is built for proper fitment and stable operation in the HVAC system. It is designed for R12 and R134A refrigerant systems and is a practical choice for Toyota Yaris condenser replacement service.

Key Features

• Part number: 7-30048
• Specific-fit A/C condenser for listed Toyota Yaris applications
• Aluminum parallel-flow core construction
• Core dimensions: 21.625 in. length, 13.25 in. width, 0.5 in. thickness
• Female inlet and outlet block fittings
• Includes drier
• Refrigerant type: R12 and R134A
• Mounting hardware not included

Detailed Description

Spectra 7-30048 is an HVAC A/C condenser built to match the original construction style used in the vehicle platform. The parallel-flow aluminum core supports efficient refrigerant heat transfer, while the specific-fit design helps ensure correct installation on the listed Toyota Yaris models. This condenser is cross-referenced to UAC CN30048PFC and CSF 10881 for the same application.

Fits 2015 Toyota Yaris, N/A. Fits 2017-2019 Toyota Yaris, N/A. If you are replacing a leaking or damaged Toyota Yaris condenser, 7-30048 provides the core dimensions, block-fitting layout, and refrigerant compatibility needed for a direct replacement service.

Common Problems This Part Can Address

• Refrigerant loss from a leaking condenser core
• Reduced A/C cooling performance from restricted heat exchange
• Physical damage to the condenser from road debris or impact
• Corrosion or wear in the original condenser assembly
• Service replacement during A/C system repair on a Toyota Yaris

Installation Notes and Tips

Verify the vehicle year and condenser connection style before installation. This unit uses female block fittings and is built for specific-fit applications, so matching the original layout is important. Replace related A/C system components as needed during service, and evacuate and recharge the system according to the vehicle manufacturer procedure after installation.

Quality Assurance

Spectra manufactures this condenser with emphasis on fitment accuracy, leak resistance, and reduced movement and vibration. The design is reverse engineered from the original application to support proper installation and dependable HVAC service on the listed Toyota Yaris models.
