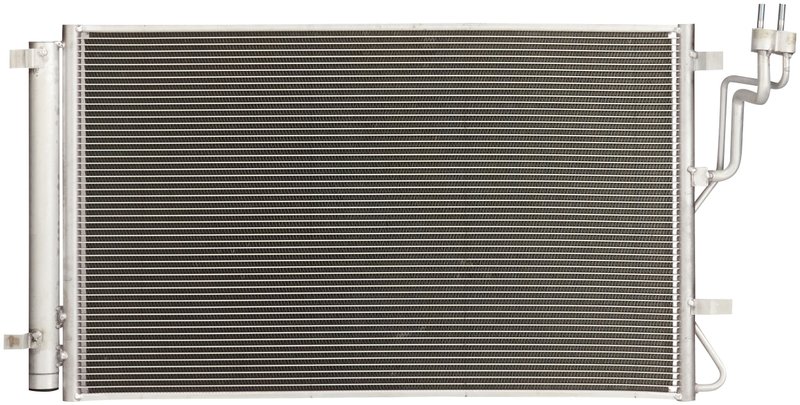

Spectra 7-30149 A/C Condenser
Spectra 7-30149 A/C Condenser for Hyundai Kona
The Spectra 7-30149 A/C condenser is a specific-fit replacement for 2018-2021 Hyundai Kona models. Built in the same construction style as the original unit, it uses an aluminum parallel-flow core and includes the drier for a direct HVAC service replacement.
Key Features
- Specific fit for 2018-2021 Hyundai Kona
- Parallel-flow condenser core for efficient refrigerant heat transfer
- Aluminum core construction
- Female block-fitting inlet and outlet connections
- Includes drier
- Refrigerant type: R12 and R134A
- Core dimensions: 25 in. x 14.6875 in. x 0.5 in.
- Installation kit/package contents: 1x condenser, 2x M8 stud
Detailed Description
Designed for OE-style fit and function, Spectra part number 7-30149 is an A/C condenser for Hyundai Kona applications from 2018 through 2021. The parallel-flow aluminum core supports efficient refrigerant cooling, while the specific-fit design helps simplify replacement on vehicles that use female block-fitting connections. This condenser is built to match the original construction style and is engineered with attention to leak resistance, reduced vibration, and stable mounting performance. This part cross-references TYC 30149 and UAC CN30149PFC for the same application.
Common Repair Uses
- Replacing a leaking or damaged condenser
- Restoring A/C cooling performance on a Hyundai Kona
- Addressing refrigerant loss from worn condenser seals or core damage
- Correcting poor heat exchange caused by a restricted or inefficient condenser
- Servicing an OE-style HVAC system with R12 or R134A refrigerant
Installation Notes and Tips
Verify the vehicle’s condenser connections, core dimensions, and refrigerant service requirements before installation. Replace any disturbed seals or O-rings during service, and evacuate and recharge the system according to factory procedures after installation. The included drier supports proper A/C system service, and the condenser uses female block-fitting inlet and outlet ports.
Quality Assurance
Spectra manufactures this condenser with emphasis on fit accuracy, material quality, and leak testing to support dependable HVAC service on 2018-2021 Hyundai Kona models. Part number 7-30149 is built to OE-style construction standards for direct replacement use.
| Brand | Spectra |
|---|---|
| Part Number | 7-30149 |
| Refrigerant Type | R12 r134a |
| Core Thickness | 0.5 |
| Core Thickness | 12 |
| Core Width | 14.6875 |
| Core Width | 372.6 |
| Mounting Hardware Included | No |
| Core Material | Aluminum |
| Universal Or Specific Fit | Specific |
| Inlet Fitting Gender | Female |
| Outlet Fitting Gender | Female |
| Core Length | 25 |
| Core Length | 635 |
| Inlet Fitting Type | Block fitting |
| Outlet Fitting Type | Block fitting |
| Condenser Core Type | Parallel flow |
| Oil Cooler Included | No |
| Includes Drier | Yes |
| Installation Kit / Hardware Kit / Package Contents | 1x condenser, 2x m8 stud |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Hyundai | Kona | 2.0L | L4 | N/A | |
| 2020 | Hyundai | Kona | 2.0L | L4 | N/A | |
| 2019 | Hyundai | Kona | 2.0L | L4 | N/A | |
| 2018 | Hyundai | Kona | 2.0L | L4 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
