OE Quality
60-Day Returns

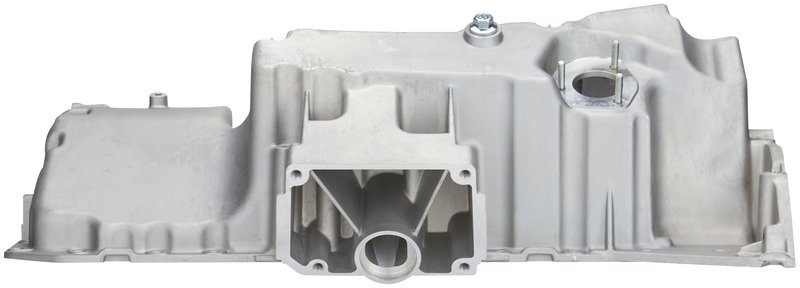

Spectra BMP24A Engine Oil Pan
Spectra BMP24A Engine Oil Pan for BMW X5/X6
The Spectra BMP24A engine oil pan is a direct-fit replacement for select BMW applications, built from aluminum with an uncoated silver finish. It is engineered to meet or exceed original equipment performance standards, with fitment for 2011-2013 BMW X5 and 2011-2013 BMW X6.
- Aluminum construction for OE-style strength and corrosion resistance
- Silver, uncoated finish
- Oil level sensor port included
- Drain plug included
- Wet sump design
- 28 mounting holes for proper installation alignment
- M12 x 1.75 drain thread size
- Compatible with 2011-2013 BMW X5 and 2011-2013 BMW X6
Detailed Product Overview
Built for engine block service and replacement, the Spectra BMP24A oil pan is shaped for the specified BMW X5 and BMW X6 applications and uses aluminum construction to match the demands of modern engine packaging. The pan includes an oil level sensor port and drain plug, while omitting a dipstick port, gasket or seal, pickup, windage tray, and baffling. This part cross-references URO 11137629210 for the same application.
Common Problems This Part Can Address
- Cracked or leaking engine oil pan
- Damaged drain threads or stripped drain plug area
- Oil level sensor port damage
- Corrosion or impact damage to the original pan
- Oil seepage at the pan sealing surface when replacing a worn unit
Installation Notes and Tips
Fits 2011-2013 BMW X5, N/A. Fits 2011-2013 BMW X6, N/A. Gasket and/or sealant is not included, so verify the correct sealing method before installation. Clean the mating surfaces thoroughly, inspect the drain plug threads, and confirm sensor port alignment before tightening fasteners to factory specifications. The BMP24A is intended for vehicles with the listed fitment only.
Quality Assurance
Spectra Premium uses engineering, manufacturing technology, and quality control processes to produce oil pans that meet or exceed the performance of the original equipment they replace. Part number BMP24A is built to support OE-level fitment and function for the listed BMW applications.
| Brand | Spectra |
|---|---|
| Part Number | BMP24A |
| Material | Aluminum |
| Capacity | 1.7250 |
| Capacity | 13.8004 |
| Capacity | 6.53 |
| Capacity | 6.9 |
| Capacity | 6.9002 |
| Capacity | 6530.0000 |
| Length | 644.0 |
| Maximum Width | 313.0 |
| Color | Silver |
| Oil Level Sensor Port | Yes |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 182.0 |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Minimum Depth | 180.0 |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Type | Wet |
| Windage Tray Included | No |
| Finish | Uncoated |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 28 |
| Drain Thread Size | M12 - 1.75 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | BMW | X5 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
| 2013 | BMW | X6 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
| 2012 | BMW | X5 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
| 2012 | BMW | X6 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
| 2011 | BMW | X5 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
| 2011 | BMW | X6 | 3.0L | L6 | N/A | Gasket And/Or Sealant Not Included |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
