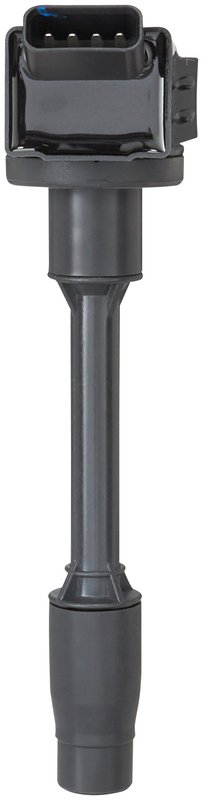

Spectra C-1114 Ignition Coil
| Brand | Spectra C-1114 |
|---|---|
| Voltage | 12.0 |
| Length | 149.6 |
| Ignition Type | Electronic |
| Coil Shape | Rectangular |
| Coil Type | Coil on plug |
| Coil Wire Included | No |
| Oil Filled | No |
| Requires External Resistor | No |
| Width | 44.0 |
| Overall Height | 181.0 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Mount Type | 1 mounting hole |
| Mounting Hole Quantity | 1 |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Female |
| Mounting Bracket Included | No |
| Fits | Toyota · 20 vehicles |
Standard replacement. Coil-on-plug design for electronic ignition systems.
Copper construction. Built with premium-grade copper for consistent electrical performance.
Direct-fit design. One mounting hole and blade terminals for proper replacement fit.
Cross-references Bremi 5221, Standard Ignition UF811 and 5C2262 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Ignition Coil Overview
The Spectra C-1114 ignition coil is a standard replacement coil-on-plug unit built for electronic ignition systems. It uses premium-grade copper construction and a rectangular coil body to support consistent spark delivery in compatible Toyota applications.
Key Features
- Coil-on-plug ignition coil for electronic ignition systems
- Premium-grade copper construction
- 12.0-volt design with a rectangular housing
- Blade terminals with a male connector and female terminal interface
- Standard replacement design with one mounting hole
Detailed Description
Built under Spectra Premium engineering standards, part number C-1114 is a direct-fit ignition coil for select Toyota Corolla, Prius, Prius AWD-e, Prius Prime, and Prius V applications. The coil-on-plug format places the ignition coil at the spark plug location for efficient spark transfer, while the 4-terminal layout and electronic ignition design support proper system integration. The C-1114 is a practical replacement choice when servicing ignition systems that require the specified coil shape, connector style, and mounting configuration.
Common Issues This Part May Address
- Engine misfire caused by a weak or failing ignition coil
- Rough idle from inconsistent spark output
- Hard starting related to ignition coil degradation
- Loss of power under load from poor coil performance
- Check engine light concerns tied to ignition system faults
Installation Notes and Tips
Verify connector style, terminal count, and mounting-hole configuration before installation. Confirm the coil-on-plug layout matches the original part and inspect the spark plug and related ignition components during service. Part number C-1114 should be matched to the vehicle application and ignition system specification before replacement.
Quality Assurance
Spectra Premium ignition coils are manufactured with premium-grade copper and developed to high engineering standards for replacement use. This part cross-references Standard Ignition (e.g., UF811) for the same application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2023 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | — |
| 2022 | Toyota | Corolla | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | — |
| 2022 | Toyota | Prius | 1.8L | L4 | — | — |
| 2022 | Toyota | Prius AWD-e | 1.8L | L4 | — | — |
| 2022 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2021 | Toyota | Prius | 1.8L | L4 | — | — |
| 2021 | Toyota | Prius AWD-e | 1.8L | L4 | — | — |
| 2021 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2020 | Toyota | Prius | 1.8L | L4 | — | — |
| 2020 | Toyota | Prius AWD-e | 1.8L | L4 | — | — |
| 2020 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2019 | Toyota | Prius | 1.8L | L4 | — | — |
| 2019 | Toyota | Prius AWD-e | 1.8L | L4 | — | — |
| 2019 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2018 | Toyota | Prius | 1.8L | L4 | — | — |
| 2018 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2018 | Toyota | Prius V | 1.8L | L4 | — | — |
| 2017 | Toyota | Prius | 1.8L | L4 | — | — |
| 2017 | Toyota | Prius Prime | 1.8L | L4 | — | — |
| 2016 | Toyota | Prius | 1.8L | L4 | — | — |
| No rows match your filter. | ||||||
