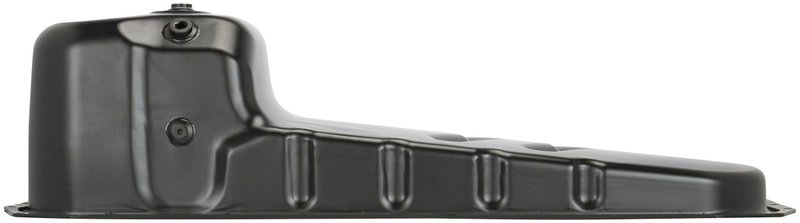

Spectra CMP09A Engine Oil Pan - Front Sump

Spectra CMP09A Engine Oil Pan

The Spectra CMP09A engine oil pan is a steel replacement oil pan built for OE-style service on select applications. It features a black powder-coated finish, a drain plug, and a 14 x 1.5 drain thread size for straightforward oil service.

Compatible With select vehicle applications, this oil pan is built to match original equipment performance expectations while supporting clean oil containment and reliable crankcase sealing. The CMP09A is a practical choice for drivers searching for an engine oil pan replacement, steel oil pan, or black powder-coated oil pan for Spectra and related OE cross-reference applications.

Key Features

• Steel construction for durable engine oil containment
• Black powder-coated finish for added surface protection
• Drain plug included for routine oil changes
• 14 x 1.5 drain thread size
• 32 mounting holes for OE-style fitment
• No oil level sensor port, dipstick port, or pickup included
• No gasket or seal included
• Non-baffled pan design

Detailed Description

Built by Spectra, part number CMP09A is an engine oil pan engineered to meet or exceed the performance of the original equipment it replaces. The steel construction and powder-coated black finish support long-term service in the engine block area, while the included drain plug simplifies maintenance. With a 14.0 capacity rating, 1185.0 length, 440.0 maximum width, and 304.0 maximum depth, this oil pan is specified for applications that require a precise OE-style replacement.

This part cross-references 3692887 for the same application. If you are sourcing a Spectra CMP09A oil pan for engine repair, oil leak correction, or a damaged pan replacement, verify the mounting pattern and drain thread requirements before installation.

Common Problems This Part Addresses

• Oil leaking from a cracked or rusted oil pan
• Damaged drain threads or a stripped drain opening
• Corrosion on an original steel pan
• Impact damage from road debris or underbody contact
• Service issues caused by a warped or worn sealing surface

Installation Notes and Tips

Before installation, confirm the pan matches the engine block mounting pattern, drain plug location, and clearance requirements. Clean the sealing surfaces thoroughly and inspect the mating flange for distortion or debris. Because no gasket or seal is included, use the correct sealing components specified for the application. For best results, check oil level after installation and inspect for leaks during the first heat cycle.

Quality Assurance

Spectra states that its manufacturing process and quality control are used to produce oil pans that meet or exceed OE performance expectations. The CMP09A is built as a replacement engine oil pan for applications requiring a steel, powder-coated design with OE-style service features.
