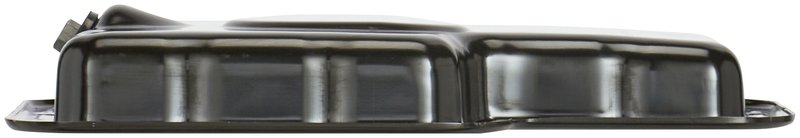

Spectra CRP81A Engine Oil Pan - Lower

Spectra CRP81A Engine Oil Pan

The Spectra CRP81A engine oil pan is a steel replacement oil pan for select Jeep Cherokee applications. It is built with a powder-coated black finish and includes a drain plug for service convenience.

Key Features

• Steel construction for engine oil containment
• Powder-coated black finish
• Drain plug included
• 18 mounting holes
• M14 x 1.5 drain thread size
• Capacity: 5.67
• Dimensions: 315.0 mm length, 202.0 mm maximum width, 42.0 mm maximum depth
• Direct replacement style for lower engine mounting location

Fitment and Application

Compatible with 2014-2022 Jeep Cherokee, lower. This Spectra CRP81A oil pan is a fitment-based replacement for Jeep Cherokee lower engine oil pan service, including applications noted with gasket and/or sealant not included. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Product Details

Built from steel, the CRP81A is shaped to match the original equipment form and function for the engine oil pan location. The pan does not include an oil level sensor port, dipstick port, pickup, windage tray, crank shaft wiper, or baffling. It also does not include an engine oil cooler return fitting or gasket/seal, so the sealing components must be selected separately based on the vehicle service requirements. For shoppers searching for a Jeep Cherokee oil pan replacement, Spectra CRP81A offers a straightforward OE-style service part for the lower engine area.

Common Uses

• Replacing a damaged or rusted Jeep Cherokee oil pan
• Repairing oil leaks at the lower engine pan
• Restoring proper engine oil containment after impact damage
• Servicing a pan with stripped drain threads or drain plug issues

Installation Notes

Before installation, verify the lower mounting location and confirm gasket and/or sealant requirements for your specific Jeep Cherokee year. Clean the mating surfaces thoroughly, inspect the drain plug sealing area, and torque fasteners evenly to help prevent leaks. Because the gasket or seal is not included, plan the repair with the correct sealing components on hand.

Quality Assurance

Spectra Premium states that its engineering, manufacturing technology, and quality control processes are used to produce oil pans that meet or exceed the performance of the original equipment they replace. The CRP81A is built to support OE-style fit and service expectations for 2014-2022 Jeep Cherokee applications.
