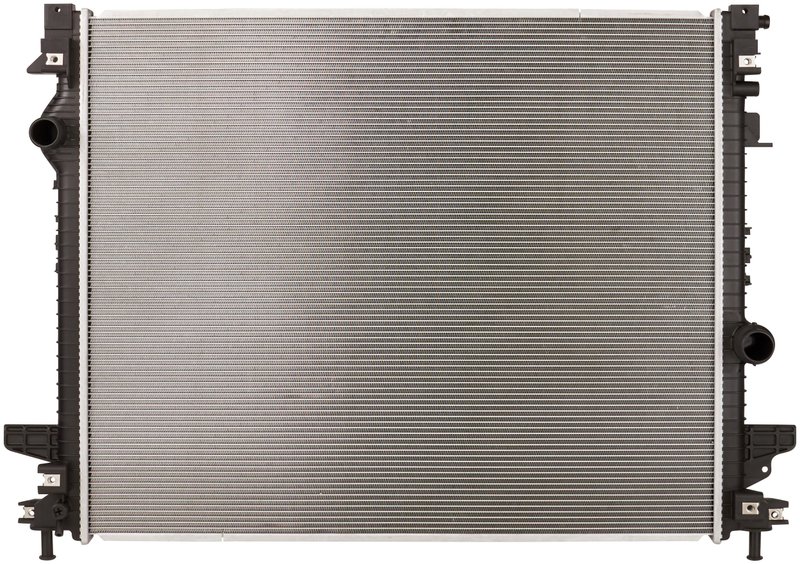

Spectra CU13555 Radiator

Reliable Radiator Replacement for Ford Edge and Lincoln MKX

The Spectra CU13555 radiator is engineered to provide efficient cooling performance for select Ford and Lincoln vehicles. Designed with durable aluminum core and plastic tanks, this radiator supports optimal engine temperature management for models like the Ford Edge and Lincoln MKX.

• Core dimensions: 27.75" height, 23.25" width, 1" thickness
• Cross flow design with one core row for effective heat dissipation
• Aluminum core material combined with plastic tanks for durability and corrosion resistance
• Inlet located at top left with 1.3125" diameter; outlet at bottom right with 1.5625" diameter
• Inlet and outlet header lengths of 24.0625" and widths of 1.875" for precise fitment
• Mounting type: bottom post and top saddle for secure installation
• Compatible with Ford Edge, Lincoln MKX, and Nautilus models

Detailed Radiator Specifications and Design

The Spectra CU13555 radiator features a single-row aluminum core measuring 27.75 inches in height and 23.25 inches in width, with a thickness of 1 inch. Its cross flow configuration enhances coolant flow efficiency, helping maintain stable engine temperatures under various driving conditions. The plastic tanks reduce weight while resisting corrosion, contributing to the radiator's longevity. The inlet and outlet headers are precisely sized at 24.0625 inches in length and 1.875 inches in width, ensuring a proper seal and fit. The inlet is positioned at the top left with a diameter of 1.3125 inches, while the outlet is located at the bottom right with a 1.5625-inch diameter, matching the original equipment specifications for compatible vehicles.

Applications and Common Cooling System Issues Addressed

• Replacement for leaking or damaged radiators in Ford Edge and Lincoln MKX vehicles
• Resolves engine overheating caused by inefficient heat exchange
• Addresses coolant leaks due to cracked or corroded radiator cores or tanks
• Improves cooling system performance after radiator core clogging or blockage
• Suitable for restoring proper coolant flow in cross flow radiator configurations

Installation Notes and Tips

When installing the Spectra CU13555 radiator, ensure the mounting type matches the vehicle’s bottom post and top saddle configuration. Verify inlet and outlet hose diameters and locations correspond to the vehicle’s cooling system layout. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant circulation. Inspect all hose connections and clamps for secure fitment to prevent leaks.

Quality Assurance and Warranty Information

Manufactured by Spectra, the CU13555 radiator meets industry standards for durability and performance. The aluminum core and plastic tank construction provide resistance to corrosion and thermal stress. While specific warranty details are not provided, Spectra products typically undergo rigorous quality control to ensure reliable operation in Ford Edge, Lincoln MKX, and Nautilus vehicles.
