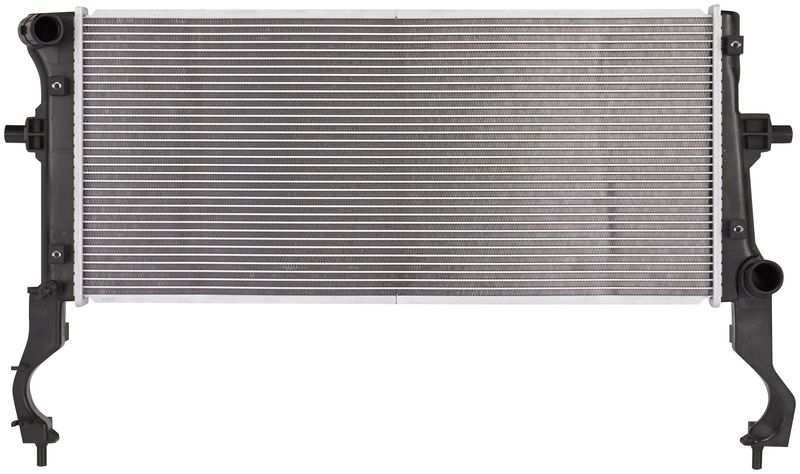

Spectra CU13828 Radiator
| Brand | Spectra CU13828 |
|---|---|
| Drain Plug Included | Yes |
| Core Height | 25.5625 |
| Core Height | 650 |
| Core Thickness | 1 |
| Core Thickness | 26 |
| Core Width | 11.3125 |
| Core Width | 287 |
| Core Material | Aluminum |
| Outlet Location | Bottom right |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | No |
| Core Row Quantity | 1 |
| Inlet Diameter | 1.3125 |
| Inlet Diameter | 33.5 |
| Inlet Location | Top left |
| Outlet Diameter | 1.375 |
| Outlet Diameter | 35.5 |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Cross flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | No |
| Fits | Hyundai · 4 vehicles |
OE-style construction. Built with an aluminum core and plastic tanks for replacement use.
Cross-flow design. Supports efficient coolant routing through the radiator core.
Drain plug included. Adds convenience when draining coolant during service.
Cross-references Dorman - HELP 13828, Nissens 606261 and 25310J9000 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator Overview
The Spectra CU13828 radiator is built for direct cooling-system replacement with OE-style durability expectations. It is a cross-flow aluminum radiator with plastic tanks, a drain plug, and no integrated engine or transmission oil cooler.
Fits 2018-2021 Hyundai Kona, N/A. This part number, CU13828, is also referenced for the same application under related aftermarket numbers.
Key Features
- Aluminum core with plastic tanks for a common OE-style radiator construction.
- Cross-flow design for efficient coolant routing through the core.
- Single-row core layout with 1-inch thickness.
- Drain plug included for service and coolant draining.
- Top-left inlet and bottom-right outlet locations for application-specific hose routing.
- No internal or external engine oil cooler and no transmission oil cooler included.
Detailed Description
Spectra Premium designs this radiator to meet the durability expectations associated with original equipment replacement. The CU13828 uses an aluminum core and plastic tank construction, with a cross-flow layout that supports standard cooling-system service on the Hyundai Kona. Core dimensions measure 25.5625 inches high, 11.3125 inches wide, and 1 inch thick, with a 33.5 mm inlet and 35.5 mm outlet.
This radiator is a fitment-specific replacement for 2018-2021 Hyundai Kona models. The CU13828 is also cross-referenced to Dorman - HELP 13828 and Nissens 606261 for the same application.
What It Is Used For
- Replacing a leaking or damaged radiator.
- Restoring proper coolant circulation through the cooling system.
- Addressing overheating caused by restricted or inefficient heat transfer.
- Replacing a unit with cracked plastic tanks or a compromised core.
- Servicing a radiator with a faulty drain plug or connection point.
Installation Notes and Tips
Verify hose routing, inlet and outlet locations, and core dimensions before installation. Confirm that the vehicle uses the listed fitment for the Hyundai Kona and inspect related cooling-system components, including hoses, clamps, and coolant condition, during replacement. Drain the system before removal and refill according to the vehicle service procedure.
Quality Assurance
Spectra Premium radiators are engineered to follow OE durability expectations for replacement use. Part number CU13828 is built for the listed application and is supported by fitment-specific construction details.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Hyundai | Kona | 1.6L | L4 | — |
| 2020 | Hyundai | Kona | 1.6L | L4 | — |
| 2019 | Hyundai | Kona | 1.6L | L4 | — |
| 2018 | Hyundai | Kona | 1.6L | L4 | — |
