Spectra CU13914 Radiator

Spectra CU13914 Radiator Overview

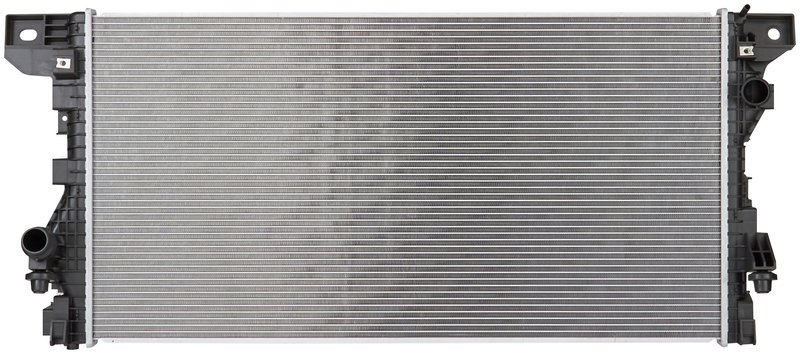

The Spectra CU13914 radiator is a cross flow replacement built with an aluminum core and plastic tanks for OE-style cooling performance. It is engineered for 2022-2024 Ford F-150 main unit applications, 2022-2024 Ford Expedition with Heavy Duty Cooling, 2022-2024 Lincoln Navigator with Heavy Duty Towing Package, and 2025-2026 Ford F-150, Ford Expedition, and Lincoln Navigator applications.

With a 35.625-inch core height, 17.75-inch core width, and 1.0625-inch core thickness, this radiator is sized for direct-fit service in late-model Ford and Lincoln cooling systems. The CU13914 uses a top right inlet, bottom left outlet, 1.5-inch inlet and outlet diameters, and a single-row core layout.

Key Features

• Aluminum core construction for efficient heat transfer
• Plastic tank design for OE-style fit and function
• Cross flow radiator layout
• Top right inlet and bottom left outlet configuration
• 1.5-inch inlet and outlet diameters
• Single-row core design
• No transmission oil cooler included
• Direct replacement for select Ford Expedition, Ford F-150, and Lincoln Navigator applications

Detailed Product Description

Spectra Premium radiators are built to meet the durability expectations associated with original equipment cooling components. The CU13914 follows that approach with a cross flow aluminum core and plastic tanks, giving it the dimensions and port locations needed for the listed Ford F-150, Ford Expedition, and Lincoln Navigator fitments. This part number, CU13914, also cross-references BBB Industries 13914 and CSF 3945 for the same application.

For buyers searching for a 2022-2024 Ford F-150 radiator main unit, a 2022-2024 Ford Expedition radiator with Heavy Duty Cooling, or a 2022-2024 Lincoln Navigator radiator with Heavy Duty Towing Package, this unit provides the specified inlet, outlet, and core measurements needed for proper replacement. The CU13914 is also listed for 2025-2026 Ford F-150, Ford Expedition, and Lincoln Navigator applications.

Common Problems This Radiator Can Address

• Coolant leaks from a damaged or aging radiator core or tank
• Overheating caused by restricted coolant flow or reduced heat dissipation
• Cracked plastic tanks or weakened seams from long-term thermal cycling
• Fitment issues when replacing the original radiator in supported Ford and Lincoln models
• Cooling system service needs on vehicles with heavy-duty cooling or towing packages

Installation Notes and Tips

Verify the inlet and outlet locations, core dimensions, and vehicle cooling package before installation. This radiator is a cross flow design with a top right inlet and bottom left outlet, so hose routing should match the original configuration on the vehicle. Confirm that the application does not require a transmission oil cooler, since this unit does not include one.

For best results, inspect hoses, clamps, and coolant condition during radiator replacement. Flush the cooling system if contamination or debris is present, and bleed air from the system after installation according to the vehicle service procedure.

Quality Assurance

Spectra Premium designs its radiators to follow OE durability expectations and application-specific fitment requirements. The CU13914 is built for the listed Ford and Lincoln vehicles using the stated core materials, dimensions, and port locations to support proper replacement service.
