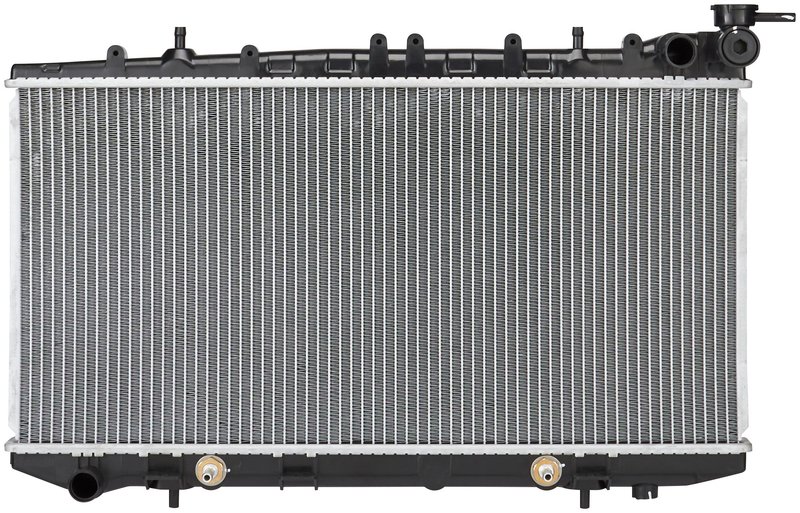

Spectra CU1426M Radiator

Spectra CU1426M Radiator Overview

The Spectra CU1426M radiator is built for OE-style durability and cooling performance in select Nissan applications. It is a direct-fit radiator for 1991-2000 Nissan Sentra and 1995-1998 Nissan 200SX models, with an integrated transmission oil cooler and a down-flow design.

With an aluminum core, plastic tanks, and a single-row construction, this radiator is engineered to match the dimensions and layout needed for proper cooling system service. The CU1426M also uses a top-right inlet and bottom-left outlet, and it requires a radiator cap.

Key Features

• Part number: CU1426M
• OE-style radiator construction for Nissan cooling system replacement
• Aluminum core with plastic tank design
• Down-flow radiator layout
• Integrated transmission oil cooler included
• Core dimensions: 25.5 in. wide, 12.625 in. high, 1 in. thick
• Inlet diameter: 1.125 in.; outlet diameter: 1.125 in.
• Inlet location: top right; outlet location: bottom left
• Single-row core design
• Radiator cap not included
• Fan not included

Detailed Description

The Spectra CU1426M radiator is designed for 1991-2000 Nissan Sentra and 1995-1998 Nissan 200SX cooling system replacement work. It follows the OE-style structure and dimensions expected for these vehicles, helping maintain proper coolant flow and heat transfer in daily driving conditions. The built-in transmission oil cooler makes it a practical choice for vehicles equipped with automatic transmission cooling through the radiator.

This radiator cross-references FEL-PRO 1426 and UAC RA1426C for the same application. For shoppers searching for a 1991-2000 Nissan Sentra radiator or a 1995-1998 Nissan 200SX radiator, CU1426M provides the fitment and layout needed for a straightforward replacement.

What This Radiator Helps Address

• Coolant leaks from a damaged or corroded radiator
• Overheating caused by restricted coolant flow
• Cracked plastic tanks or weakened core seams
• Transmission fluid temperature control issues when the radiator cooler is part of the circuit
• Cooling system service needs on aging Nissan Sentra and Nissan 200SX vehicles

Installation Notes and Tips

Verify the inlet and outlet locations before installation: top right inlet and bottom left outlet. This radiator requires a separate radiator cap, and the fan is not included. Confirm that the vehicle uses the correct transmission cooler routing before installation, especially on automatic-transmission applications. Always inspect hoses, clamps, and coolant condition during radiator replacement.

Quality Assurance

Spectra Premium radiators are built to meet OE-level durability expectations for replacement use. The CU1426M is manufactured with an aluminum core and plastic tanks to support reliable cooling system service in the specified Nissan applications.
