Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

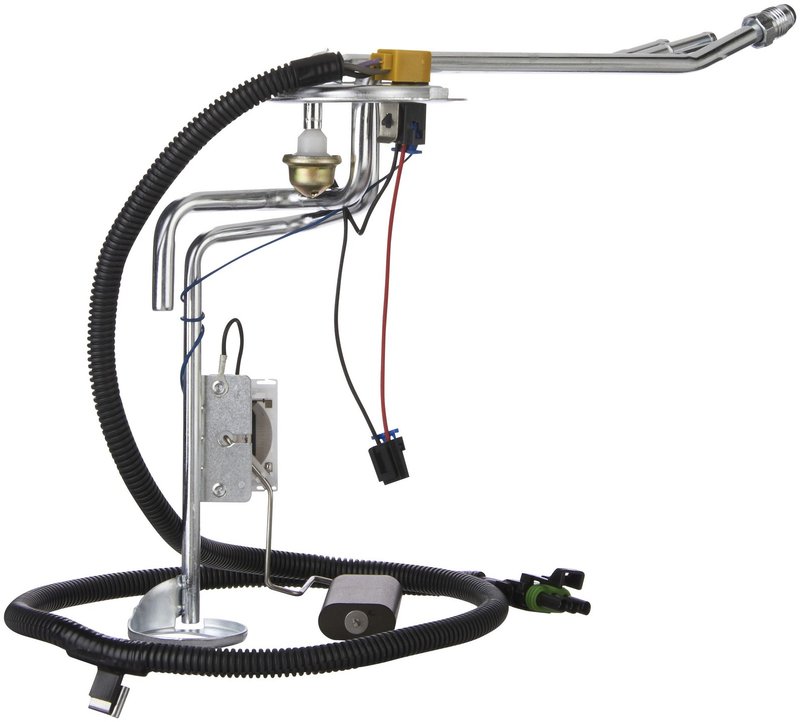

Spectra FG10F Fuel Tank Sending Unit
| Brand | Spectra FG10F |
|---|---|
| Fits | Chevrolet and Pontiac · 9 vehicles |
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Spectra FG10F Fuel Tank Sending Unit
The Spectra FG10F fuel tank sending unit is a direct-fit replacement for select Chevrolet Caprice and Pontiac Parisienne applications. It is built to meet or exceed original equipment performance standards for fuel level sensing and tank communication.
- Fuel tank sending unit for air and fuel delivery systems
- OE-style replacement for select 1986-1989 Chevrolet Caprice and 1986 Pontiac Parisienne applications
- Supports accurate fuel level signal transfer from the tank to the gauge system
- Cross-references Spectra Premium FG10F for the same application
Application Details
Compatible with 1989 Chevrolet Caprice, N/A; 1986-1989 Chevrolet Caprice, N/A with Harness Code: BEG; and 1986 Pontiac Parisienne, N/A with Harness Code: BEG. This part number, FG10F, is used in fuel tank service where the sending unit must match the vehicle’s original electrical and tank configuration.
What It Helps Correct
- Inaccurate fuel gauge readings
- Intermittent or unstable fuel level indication
- Failed sending unit signal from the fuel tank
- Restoration work on aging Chevrolet Caprice and Pontiac Parisienne fuel systems
Installation Notes
Before installation, the fuel tank must be inspected and cleaned. The tank lock ring and seal must be replaced; failure to do so voids the warranty. Verify harness code BEG where required before ordering or installation. Confirm the vehicle’s original tank configuration and electrical connection before replacing FG10F.
Quality Assurance
Spectra Premium fuel tank sending units are engineered and manufactured with quality control processes intended to match or exceed original equipment performance. Part number FG10F is built for consistent fit and function in the listed Chevrolet Caprice and Pontiac Parisienne applications.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1989 | Chevrolet | Caprice | Sedan | 5.7L | V8 | N/A | Failure to replace the tank lock ring and seal will void warranty; tank must be inspected and cleaned before installation. |
| 1989 | Chevrolet | Caprice | Sedan | 5.0L | V8 | N/A | Failure to replace the tank lock ring and seal will void warranty; tank must be inspected and cleaned before installation. |
| 1989 | Chevrolet | Caprice | Sedan | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1988 | Chevrolet | Caprice | Sedan | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1987 | Chevrolet | Caprice | Sedan | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1987 | Chevrolet | Caprice | Coupe | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1986 | Chevrolet | Caprice | Sedan | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1986 | Chevrolet | Caprice | Coupe | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
| 1986 | Pontiac | Parisienne | Sedan | 4.3L | V6 | N/A | w/ Harness Code: BEG; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation |
