Spectra S10568 Engine Crankshaft Position SensorOE Quality 60-Day Returns
Part #: S10568

Spectra S10568 Engine Crankshaft Position Sensor

67 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$40.67Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Buick, Cadillac, Chevrolet, and GMC, Acadia, ATS, Blazer, Camaro, Canyon, Colorado, CT5, CT6, CTS, LaCrosse, Regal Sportback, XT5, and XT6
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Crankshaft Position Sensor options

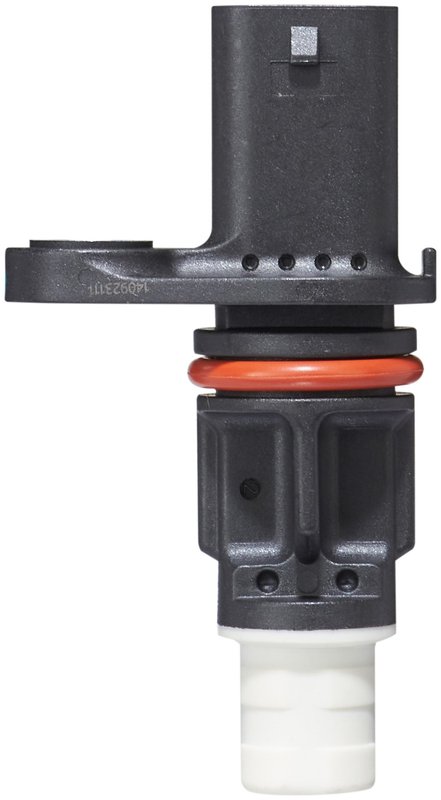

Spectra S10568 Crankshaft Position Sensor

The Spectra S10568 is a standard replacement engine crankshaft position sensor for vehicles that rely on precise ignition timing and engine speed input. It monitors crankshaft position to help the engine control system manage timing and RPM feedback without manual distributor adjustment.

Key Features

  • 5.0-volt crankshaft position sensor for ignition timing and engine speed signal input
  • Standard replacement design for direct service applications
  • Female oval connector with 3 male terminals
  • 1 mounting hole with included mounting bracket
  • Black housing with spade terminal type
  • Connector quantity: 1; wiring harness not included

Detailed Description

Built for ignition and engine management service, the Spectra S10568 crankshaft position sensor provides the signal the control system uses to determine crankshaft position, engine RPM, and relative engine speed. That information is critical for accurate spark timing and stable engine operation. This part number, S10568, is a direct-fit standard replacement for a range of GM applications, including Cadillac XT5, CT5, XT6, CT6, ATS, and CTS, plus Chevrolet Blazer, Camaro, Colorado, and GMC Acadia and Canyon. This part cross-references Standard Ignition PC1112 for the same application.

Common Issues This Part May Address

  • Hard starting caused by missing or inconsistent crankshaft position signal
  • Intermittent stalling related to engine speed input loss
  • Rough running from incorrect ignition timing data
  • Check engine light triggered by crankshaft position sensor faults
  • No-start conditions tied to crank signal failure

Installation Notes and Tips

Verify connector shape, terminal count, and mounting style before installation. The S10568 uses a female oval connector, 3 terminals, and a single mounting hole with a bracket included. Confirm vehicle-specific placement and inspect the harness connector for corrosion or damage before connecting the new sensor. Always clear diagnostic trouble codes and confirm proper engine operation after installation.

Quality Assurance

Spectra supplies standard replacement ignition and sensor components built to match the service needs of listed GM applications. Confirm fitment by year, make, and model before ordering. Fits 2016-2024 Cadillac and Chevrolet/GMC applications listed above, including 2017-2024 Cadillac XT5, 2020-2023 Cadillac CT5, and 2016-2023 Chevrolet Camaro.

BrandSpectra
Part NumberS10568
Voltage5.0
ColorBlack
Terminal TypeSpade
Wire Quantity0
Grade TypeStandard replacement
Connector Quantity1
Connector ShapeOval
Mounting Hole Quantity1
Terminal Quantity3
Connector GenderFemale
Terminal GenderMale
Wiring Harness IncludedNo
Mounting Bracket IncludedYes

This part fits 67 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2024CadillacXT53.6LV6N/A
2023CadillacCT53.0LV6N/A
2023CadillacXT53.6LV6N/A
2023CadillacXT63.6LV6N/A
2023ChevroletBlazer3.6LV6N/A
2023ChevroletCamaro3.6LV6N/A
2023GMCAcadia3.6LV6N/A
2022CadillacCT53.0LV6N/A
2022CadillacXT53.6LV6N/A
2022CadillacXT63.6LV6N/A
2022ChevroletBlazer3.6LV6N/A
2022ChevroletCamaro3.6LV6N/A
2022ChevroletColorado3.6LV6N/A
2022GMCAcadia3.6LV6N/A
2022GMCCanyon3.6LV6N/A
2021CadillacCT53.0LV6N/A
2021CadillacXT53.6LV6N/A
2021CadillacXT63.6LV6N/A
2021ChevroletBlazer3.6LV6N/A
2021ChevroletCamaro3.6LV6N/A
2021ChevroletColorado3.6LV6N/A
2021GMCAcadia3.6LV6N/A
2021GMCCanyon3.6LV6N/A
2020BuickRegal Sportback3.6LV6N/A
2020CadillacCT53.0LV6N/A
2020CadillacCT63.6LV6N/A
2020CadillacXT53.6LV6N/A
2020CadillacXT63.6LV6N/A
2020ChevroletBlazer3.6LV6N/A
2020ChevroletCamaro3.6LV6N/A
2020ChevroletColorado3.6LV6N/A
2020GMCAcadia3.6LV6N/A
2020GMCCanyon3.6LV6N/A
2019BuickLaCrosse3.6LV6N/A
2019BuickRegal Sportback3.6LV6N/A
2019CadillacATS3.6LV6N/A
2019CadillacCT63.6LV6N/A
2019CadillacCTS3.6LV6N/A
2019CadillacXT53.6LV6N/A
2019ChevroletBlazer3.6LV6N/A
2019ChevroletCamaro3.6LV6N/A
2019ChevroletColorado3.6LV6N/A
2019GMCAcadia3.6LV6N/A
2019GMCCanyon3.6LV6N/A
2018BuickLaCrosse3.6LV6N/A
2018BuickRegal Sportback3.6LV6N/A
2018CadillacATS3.6LV6N/A
2018CadillacCT63.6LV6N/A
2018CadillacCTS3.6LV6N/A
2018CadillacXT53.6LV6N/A
2018ChevroletCamaro3.6LV6N/A
2018ChevroletColorado3.6LV6N/A
2018GMCAcadia3.6LV6N/A
2018GMCCanyon3.6LV6N/A
2017BuickLaCrosse3.6LV6N/A
2017CadillacATS3.6LV6N/A
2017CadillacCT63.6LV6N/A
2017CadillacCTS3.6LV6N/A
2017CadillacXT53.6LV6N/A
2017ChevroletCamaro3.6LV6N/A
2017ChevroletColorado3.6LV6N/A
2017GMCAcadia3.6LV6N/A
2017GMCCanyon3.6LV6N/A
2016CadillacATS3.6LV6N/A
2016CadillacCT63.6LV6N/A
2016CadillacCTS3.6LV6N/A
2016ChevroletCamaro3.6LV6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1264678123518855S15176CSS2113PC1112

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
