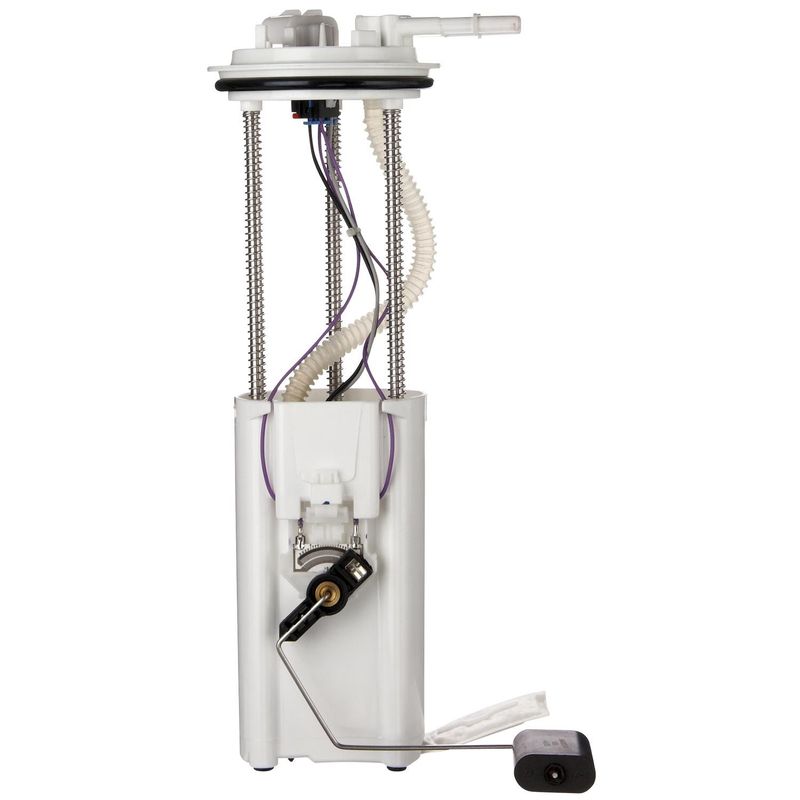

Spectra SP470M Fuel Pump Module Assembly
OE Quality 60-Day Returns
Spectra

Spectra SP470M Fuel Pump Module Assembly

Brand Spectra SP470M
Fits Chevrolet and GMC · 16 vehicles

Direct replacement. Fuel pump module assembly for select in-tank fuel system service.

Quality-controlled build. Manufactured with engineering and production processes for consistent performance.

Part number SP470M. Use for catalog lookup and fitment verification.

Cross-references Airtex Fuel Pumps E3927M, Delphi FG0023 and US Motor Works USEP3927M for the same application. See all 22.

$99.34Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $99.34
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Fuel Module Overview

The Spectra SP470M fuel pump module assembly is built for direct replacement service on select 1996 full-size vans. It is engineered with manufacturing technology and quality control standards aimed at consistent fuel delivery performance.

Compatible with Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, and GMC Savana 3500 applications, this module supports fitment-specific repair work where the original fuel pump assembly has failed. The SP470M is a practical choice for Chevrolet Express and GMC Savana fuel system service.

Key Features

  • Fuel pump module assembly for in-tank fuel system replacement
  • Built with Spectra Premium engineering and quality control processes
  • Direct-fit application for select 1996 Chevrolet and GMC vans
  • Cross-references Airtex E3927M and Delphi FG0023 for the same application
  • Part number SP470M for catalog and fitment verification

Application Details

Fits 1996 Chevrolet Express 1500, N/A. Fits 1996 Chevrolet Express 2500, N/A. Fits 1996 Chevrolet Express 3500, N/A. Fits 1996 GMC Savana 1500, N/A. Fits 1996 GMC Savana 2500, N/A. Fits 1996 GMC Savana 3500, N/A.

This fuel pump module assembly is intended for vehicles with the listed tank and module-code requirements shown in the fitment data. Verify the tank configuration and module code before ordering, and inspect the fuel tank for cleanliness before installation. The SP470M should be matched to the exact application notes for proper service.

Common Repair Symptoms

  • Hard starting or no-start conditions caused by fuel delivery failure
  • Loss of fuel pressure at the rail
  • Engine stalling under load or during operation
  • Intermittent pump operation or inconsistent fuel supply
  • Fuel system service after pump module wear or failure

Installation Notes

Use the fitment notes to confirm the correct tank size, module code, and vehicle application before installation. The fitment data also notes that the fuel tank must be inspected and cleaned prior to installation, and that the fuel tank lock ring and seal must be replaced to avoid warranty issues. Follow the vehicle service procedure for fuel system replacement.

Quality Assurance

Spectra Premium fuel modules are manufactured with engineering, production technology, and quality control processes intended to meet demanding performance expectations. Part number SP470M is cataloged for direct application matching and interchange verification.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1996ChevroletExpress 15005.7LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 15005.0LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 15004.3LV631 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 25005.7LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 25005.0LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 25004.3LV631 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 35007.4LV8w/ 31 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996ChevroletExpress 35005.7LV8w/ 31 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 15005.7LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 15005.0LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 15004.3LV631 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 25005.7LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 25005.0LV831 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 25004.3LV631 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 35007.4LV8w/ 31 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
1996GMCSavana 35005.7LV8w/ 31 Gallons Tank; w/ Module Code VAJ; Wiring Harness Included; Internal Strainer Included; Failure To Replace The Fuel Tank Lock Ring And Seal Will Void Warranty; Fuel Tank Must Be Inspected And Clean Prior To Installation
Directly replaces or cross-references 22 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3927MDelphi — FG0023US Motor Works — USEP3927M402P3927M6733615028940100719535013191796191933209525163531A30104AFS0525SC0334MFPE3927MAMO139MU6MU1821P470MP74741MRE0525STNKSP470M
