Speed Pro 8-7185CH Engine Connecting Rod Bearing Set
OE Quality 60-Day Returns
Speed Pro

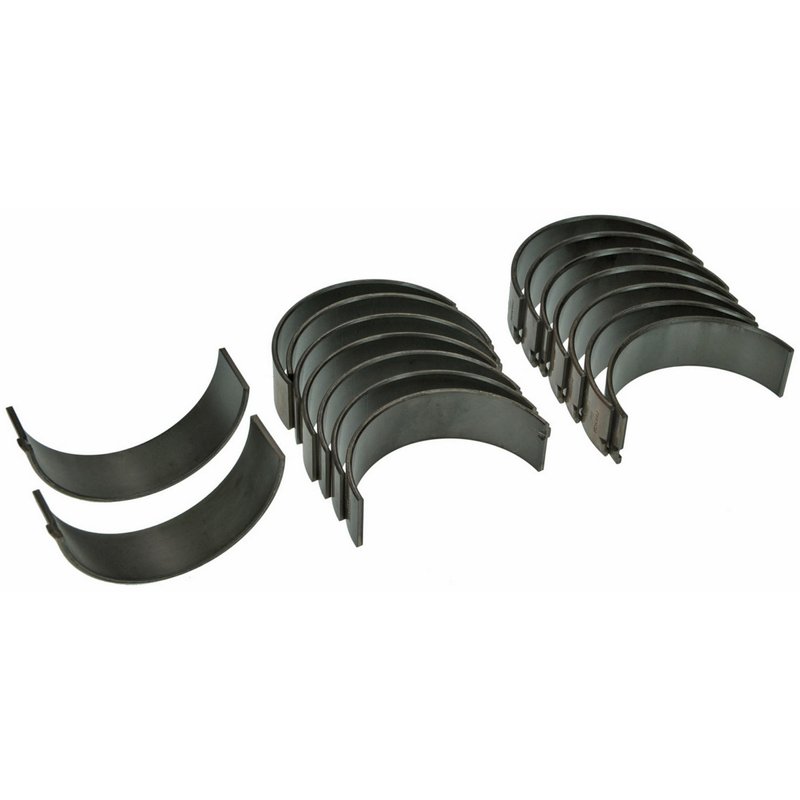

Speed Pro 8-7185CH Engine Connecting Rod Bearing Set

Brand Speed Pro 8-7185CH
Application Competition series
Displacement 429, 460
Engine Family 429, 460
Flange OD Max (Inch) 0
Housing Bore Max (Inch) 2.6530
Housing Bore Min (Inch) 2.6522
Length Flange Max (Inch) 0
Length Flange Min (Inch) 0
Manufacture Ford
Material Super duty alloy
Oil Clearance Max (Inch) 0.0026
Oil Clearance Min (Inch) 0.0005
Overall Length Max (Inch) 0.8660
Overall Length Min (Inch) 0
Part Material Steel backed overplated bronze alloy
Set Type Rod set
Sizes Std-10-20
Standard Shaft Max (Inch) 2.5000
Standard Shaft Min (Inch) 2.4992
Standard Size Standard
Wall Thickness Max (Inch) 0.0761
Fits Ford, Lincoln, and Mercury · 164 vehicles

Competition Series. Built for high-performance engine applications.

Steel-backed bronze alloy. Provides a durable bearing surface with added support.

Standard size. A direct-fit rod bearing set for standard applications.

Cross-references CB818H, CB8048S and CR874HP for the same application. See all 3.

$139.21Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $139.21
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Connecting Rod Bearing Set options

Ford 429/460 Rod Bearing Set

Speed Pro 8-7185CH is a competition series engine connecting rod bearing set for Ford 429 and 460 applications. Built with a steel-backed overplated bronze alloy and Super Duty Alloy material, it is specified for standard-size rod journal service in performance and standard-fit builds.

Key Features

  • Engine connecting rod bearing set for Ford 429 and 460 engines
  • Competition Series application for performance-oriented rebuilds
  • Steel backed overplated bronze alloy construction
  • Super Duty Alloy material specification
  • Standard size with 2.4992-2.5000 inch standard shaft range
  • Housing bore range: 2.6522-2.6530 inches
  • Oil clearance range: 0.0005-0.0026 inches
  • Cross-references Monroe Shocks & Struts part numbers CB818H and CB8048S for the same application

Detailed Description

Speed Pro 8-7185CH rod bearings are built for Ford big-block 429 and 460 engines used in performance and standard-fit service. The bearing set uses a steel-backed overplated bronze alloy design to support consistent rod journal fit, while the listed clearance and bore dimensions help match the bearing to the engine’s machining and assembly requirements. This part is a direct fit for a wide range of Ford, Lincoln, and Mercury vehicles equipped with the 429 or 460 engine family, including 1969-1971 Ford Mustang, 1968-1976 Ford Thunderbird, and 1968-1978 Lincoln Continental.

What This Part Is Used For

  • Replacing worn or scored connecting rod bearings during engine rebuilds
  • Restoring proper rod journal clearance in Ford 429 and 460 engines
  • Addressing low oil pressure concerns tied to bearing wear
  • Correcting rod knock caused by excessive bearing clearance
  • Supporting performance rebuilds that require standard-size bearing service

Installation Notes and Tips

Verify crankshaft journal size, housing bore, and oil clearance before assembly. Confirm the engine family and standard-size requirements for your Ford 429 or 460 build, and measure each rod journal during installation to match the bearing selection to the machined components. Fits 1969-1971 Ford Mustang, N/A; Fits 1968-1976 Ford Thunderbird, N/A; Fits 1968-1978 Lincoln Continental, N/A; Fits 1969-1978 Ford LTD, N/A; Fits 1975-1978 Mercury Grand Marquis, N/A; Fits 1969-1978 Mercury Marquis, N/A; Fits 1973-1976 Mercury Cougar, N/A; Fits 1969-1971 Mercury Cougar, N/A; Fits 1970-1976 Mercury Montego, N/A; Fits 1969-1974 Mercury Colony Park, N/A; Fits 1969-1970 Mercury Marauder, N/A.

Quality Assurance

Speed Pro states that its engine components are built to deliver value and quality for street and competition use. Part number 8-7185CH is manufactured for Ford 429 and 460 applications with published dimensional specifications to support accurate engine assembly.

Related reading

This part fits 164 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1978FordLTD7.5LV8Performance and standard fitment.
1978LincolnContinental7.5LV8Performance and standard fitment.
1978LincolnMark V7.5LV8Performance and standard fitment.
1978MercuryGrand Marquis7.5LV8Performance and standard fitment.
1978MercuryMarquis7.5LV8Performance and standard fitment.
1977FordLTD7.5LV8Performance and standard fitment.
1977LincolnContinental7.5LV8Performance and standard fitment.
1977LincolnMark V7.5LV8Performance and standard fitment.
1977MercuryGrand Marquis7.5LV8Performance and standard fitment.
1977MercuryMarquis7.5LV8Performance and standard fitment.
1976FordCustom 5007.5LV8Performance and standard fitment.
1976FordElite7.5LV8Performance and standard fitment.
1976FordGran Torino7.5LV8Performance and standard fitment.
1976FordLTD7.5LV8Performance and standard fitment.
1976FordThunderbird7.5LV8Performance and standard fitment.
1976FordTorino7.5LV8Performance and standard fitment.
1976LincolnContinental7.5LV8Performance and standard fitment.
1976LincolnMark IV7.5LV8Performance and standard fitment.
1976MercuryCougar7.5LV8Performance and standard fitment.
1976MercuryGrand Marquis7.5LV8Performance and standard fitment.
1976MercuryMarquis7.5LV8Performance and standard fitment.
1976MercuryMontego7.5LV8Performance and standard fitment.
1975FordCustom 5007.5LV8Performance and standard fitment.
1975FordElite7.5LV8Performance and standard fitment.
1975FordGran Torino7.5LV8Performance and standard fitment.
1975FordLTD7.5LV8Performance and standard fitment.
1975FordThunderbird7.5LV8Performance and standard fitment.
1975FordTorino7.5LV8Performance and standard fitment.
1975LincolnContinental7.5LV8Performance and standard fitment.
1975LincolnMark IV7.5LV8Performance and standard fitment.
1975MercuryCougar7.5LV8Performance and standard fitment.
1975MercuryGrand Marquis7.5LV8Performance and standard fitment.
1975MercuryMarquis7.5LV8Performance and standard fitment.
1975MercuryMontego7.5LV8Performance and standard fitment.
1974FordCountry Sedan7.5LV8Performance and standard fitment.
1974FordCountry Squire7.5LV8Performance and standard fitment.
1974FordCustom 5007.5LV8Performance and standard fitment.
1974FordGalaxie 5007.5LV8Performance and standard fitment.
1974FordGran Torino7.5LV8Performance and standard fitment.
1974FordLTD7.5LV8Performance and standard fitment.
1974FordRanch Wagon7.5LV8Performance and standard fitment.
1974FordThunderbird7.5LV8Performance and standard fitment.
1974FordTorino7.5LV8Performance and standard fitment.
1974LincolnContinental7.5LV8Performance and standard fitment.
1974LincolnMark IV7.5LV8Performance and standard fitment.
1974MercuryColony Park7.5LV8Performance and standard fitment.
1974MercuryCougar7.5LV8Performance and standard fitment.
1974MercuryMarquis7.5LV8Performance and standard fitment.
1974MercuryMontego7.5LV8Performance and standard fitment.
1974MercuryMonterey7.5LV8Performance and standard fitment.
1973FordCountry Sedan7.0LV8Performance and standard fitment.
1973FordCountry Sedan7.5LV8Performance and standard fitment.
1973FordCountry Squire7.0LV8Performance and standard fitment.
1973FordCountry Squire7.5LV8Performance and standard fitment.
1973FordCustom 5007.0LV8Performance and standard fitment.
1973FordCustom 5007.5LV8Performance and standard fitment.
1973FordGalaxie 5007.0LV8Performance and standard fitment.
1973FordGalaxie 5007.5LV8Performance and standard fitment.
1973FordGran Torino7.0LV8Performance and standard fitment.
1973FordGran Torino7.5LV8Performance and standard fitment.
1973FordLTD7.0LV8Performance and standard fitment.
1973FordLTD7.5LV8Performance and standard fitment.
1973FordRanch Wagon7.0LV8Performance and standard fitment.
1973FordRanch Wagon7.5LV8Performance and standard fitment.
1973FordThunderbird7.0LV8Performance and standard fitment.
1973FordThunderbird7.5LV8Performance and standard fitment.
1973FordTorino7.0LV8Performance and standard fitment.
1973FordTorino7.5LV8Performance and standard fitment.
1973LincolnContinental7.5LV8Performance and standard fitment.
1973LincolnMark IV7.5LV8Performance and standard fitment.
1973MercuryColony Park7.0LV8Performance and standard fitment.
1973MercuryColony Park7.5LV8Performance and standard fitment.
1973MercuryCougar7.5LV8Performance and standard fitment.
1973MercuryMarquis7.0LV8Performance and standard fitment.
1973MercuryMarquis7.5LV8Performance and standard fitment.
1973MercuryMontego7.0LV8Performance and standard fitment.
1973MercuryMontego7.5LV8Performance and standard fitment.
1973MercuryMonterey7.0LV8Performance and standard fitment.
1973MercuryMonterey7.5LV8Performance and standard fitment.
1972FordCountry Sedan7.0LV8Performance and standard fitment.
1972FordCountry Sedan7.5LV8Performance and standard fitment.
1972FordCountry Squire7.0LV8Performance and standard fitment.
1972FordCountry Squire7.5LV8Performance and standard fitment.
1972FordCustom7.0LV8Performance and standard fitment.
1972FordCustom7.5LV8Performance and standard fitment.
1972FordCustom 5007.0LV8Performance and standard fitment.
1972FordCustom 5007.5LV8Performance and standard fitment.
1972FordGalaxie 5007.0LV8Performance and standard fitment.
1972FordGalaxie 5007.5LV8Performance and standard fitment.
1972FordGran Torino7.0LV8Performance and standard fitment.
1972FordLTD7.0LV8Performance and standard fitment.
1972FordLTD7.5LV8Performance and standard fitment.
1972FordRanch Wagon7.0LV8Performance and standard fitment.
1972FordRanch Wagon7.5LV8Performance and standard fitment.
1972FordThunderbird7.0LV8Performance and standard fitment.
1972FordThunderbird7.5LV8Performance and standard fitment.
1972FordTorino7.0LV8Performance and standard fitment.
1972LincolnContinental7.5LV8Performance and standard fitment.
1972LincolnMark IV7.5LV8Performance and standard fitment.
1972MercuryColony Park7.0LV8Performance and standard fitment.
1972MercuryColony Park7.5LV8Performance and standard fitment.
1972MercuryMarquis7.0LV8Performance and standard fitment.
1972MercuryMarquis7.5LV8Performance and standard fitment.
1972MercuryMontego7.0LV8Performance and standard fitment.
1972MercuryMonterey7.0LV8Performance and standard fitment.
1972MercuryMonterey7.5LV8Performance and standard fitment.
1971FordCountry Sedan7.0LV8Performance and standard fitment.
1971FordCountry Squire7.0LV8Performance and standard fitment.
1971FordCustom7.0LV8Performance and standard fitment.
1971FordCustom 5007.0LV8Performance and standard fitment.
1971FordGalaxie 5007.0LV8Performance and standard fitment.
1971FordLTD7.0LV8Performance and standard fitment.
1971FordMustang7.0LV8Performance and standard fitment.
1971FordRanch Wagon7.0LV8Performance and standard fitment.
1971FordThunderbird7.0LV8Performance and standard fitment.
1971FordTorino7.0LV8Performance and standard fitment.
1971LincolnContinental7.5LV8Performance and standard fitment.
1971LincolnMark III7.5LV8Performance and standard fitment.
1971MercuryColony Park7.0LV8Performance and standard fitment.
1971MercuryCougar7.0LV8Performance and standard fitment.
1971MercuryCyclone7.0LV8Performance and standard fitment.
1971MercuryMarquis7.0LV8Performance and standard fitment.
1971MercuryMontego7.0LV8Performance and standard fitment.
1971MercuryMonterey7.0LV8Performance and standard fitment.
1970FordCountry Sedan7.0LV8Performance and standard fitment.
1970FordCountry Squire7.0LV8Performance and standard fitment.
1970FordCustom7.0LV8Performance and standard fitment.
1970FordCustom 5007.0LV8Performance and standard fitment.
1970FordFairlane7.0LV8Performance and standard fitment.
1970FordFalcon7.0LV8Performance and standard fitment.
1970FordGalaxie 5007.0LV8Performance and standard fitment.
1970FordLTD7.0LV8Performance and standard fitment.
1970FordMustang7.0LV8Performance and standard fitment.
1970FordRanch Wagon7.0LV8Performance and standard fitment.
1970FordThunderbird7.0LV8Performance and standard fitment.
1970FordTorino7.0LV8Performance and standard fitment.
1970LincolnContinental7.5LV8Performance and standard fitment.
1970LincolnMark III7.5LV8Performance and standard fitment.
1970MercuryColony Park7.0LV8Performance and standard fitment.
1970MercuryCougar7.0LV8Performance and standard fitment.
1970MercuryCyclone7.0LV8Performance and standard fitment.
1970MercuryMarauder7.0LV8Performance and standard fitment.
1970MercuryMarquis7.0LV8Performance and standard fitment.
1970MercuryMontego7.0LV8Performance and standard fitment.
1970MercuryMonterey7.0LV8Performance and standard fitment.
1969FordCountry Sedan7.0LV8Performance and standard fitment.
1969FordCountry Squire7.0LV8Performance and standard fitment.
1969FordCustom7.0LV8Performance and standard fitment.
1969FordCustom 5007.0LV8Performance and standard fitment.
1969FordGalaxie 5007.0LV8Performance and standard fitment.
1969FordLTD7.0LV8Performance and standard fitment.
1969FordMustang7.0LV8Performance and standard fitment.
1969FordRanch Wagon7.0LV8Performance and standard fitment.
1969FordThunderbird7.0LV8Performance and standard fitment.
1969LincolnContinental7.5LV8Performance and standard fitment.
1969LincolnMark III7.5LV8Performance and standard fitment.
1969MercuryColony Park7.0LV8Performance and standard fitment.
1969MercuryCougar7.0LV8Performance and standard fitment.
1969MercuryCyclone7.0LV8Performance and standard fitment.
1969MercuryMarauder7.0LV8Performance and standard fitment.
1969MercuryMarquis7.0LV8Performance and standard fitment.
1969MercuryMonterey7.0LV8Performance and standard fitment.
1968FordThunderbird7.0LV8Performance and standard fitment.
1968LincolnContinental7.0LV8Performance and standard fitment.
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
CB818HCB8048SCR874HP
