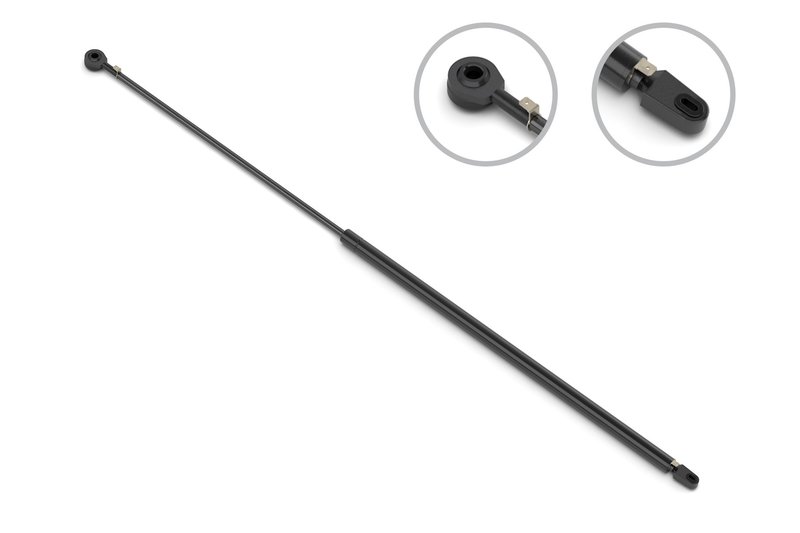

Stabilus 1F-061702 Hatch Lift Support

Stabilus 1F-061702 Gas Spring for Camaro and Firebird

Stabilus 1F-061702 is a gas spring built for rear lift support applications on select Chevrolet Camaro and Pontiac Firebird models. It uses metal blade connections at both ends and delivers 658 N (148 lb) of force for controlled opening and closing action.

Key Features

• Brand: Stabilus
• Part number: 1F-061702
• Extended length: 993 mm (39.094 in)
• Compressed length: 732.5 mm (28.839 in)
• Rod diameter: 10 mm (0.394 in)
• Tube diameter: 22 mm (0.866 in)
• Force rating: 658 N / 148 lb
• Metal blade rod and tube connections

Fitment Details

• Fits 1982-1992 Chevrolet Camaro, w/ spoiler & wiper.
• Fits 1982-1992 Pontiac Firebird, w/ Spoiler & wiper.

Product Description

This Stabilus gas spring is specified for 1982-1992 Chevrolet Camaro and 1982-1992 Pontiac Firebird models equipped with a spoiler and wiper. The 1F-061702 measures 993 mm extended and 732.5 mm compressed, with a 10 mm rod and 22 mm tube, making it a direct-spec replacement for the rear support application on these vehicles. If you are searching for a Stabilus 1F-061702 lift support for Camaro spoiler and wiper or a Pontiac Firebird rear hatch support, this part matches the listed fitment and dimensions.

This part cross-references AMS Automotive 4954 and Tuff Support 610021 for the same application.

What It Helps Address

• Weak or failing rear hatch support
• Hatch or liftgate that drops too quickly
• Uneven opening effort at the rear panel
• Loss of holding force in spoiler and wiper-equipped applications
• Noise or inconsistent movement from worn gas struts

Installation Notes

Verify the vehicle’s spoiler and wiper configuration before ordering, since fitment is limited to those listed applications. Compare the original support’s compressed length, extended length, and end fittings to confirm match before installation. Inspect mounting points and surrounding hardware for wear or damage, and replace any worn attachment components as needed.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the listed dimensional and force specifications for the stated applications.
