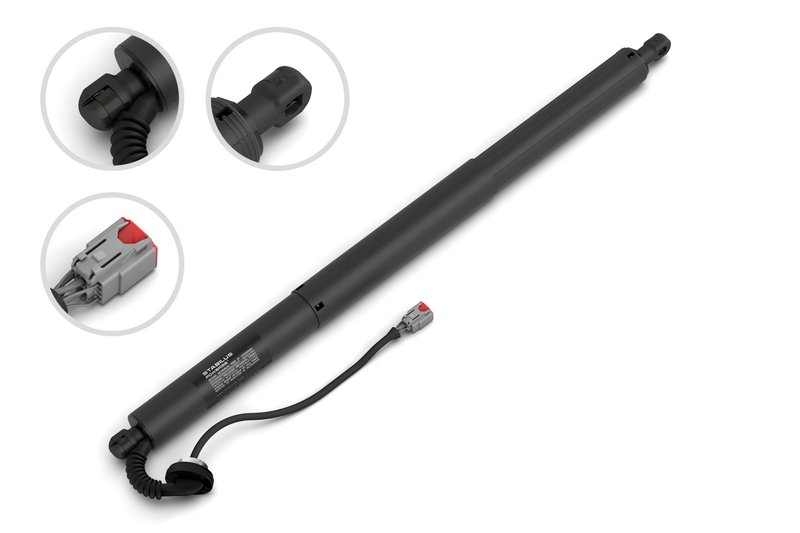

Stabilus 2A-944330 Liftgate Lift Support - Left
| Brand | Stabilus 2A-944330 |
|---|---|
| Position | Left |
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 17.33 |
| Compressed Length | 440.1 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Square |
| Connector Type | Adapter |
| Extended Length | 24.02 |
| Extended Length | 610.1 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 170 |
| Stroke Length | 6.69 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | Yes |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | Ford · 10 vehicles |
Electro-mechanical design. Provides smooth, automatic liftgate operation at the touch of a button.
Ball socket ends. Adapter-style connectors help simplify replacement and installation.
Wiring harness included. Ready for a cleaner, more complete installation.
Cross-references Nissens 891022, Stabilus 2A-944330 and 356627 for the same application. See all 17.
Power Liftgate Support for Ford Edge
Restore smooth, automatic liftgate operation with this Stabilus POWERISE electro-mechanical liftgate lift support. Built for the left side of the 2015-2024 Ford Edge, part number 2A-944330 is engineered for power liftgate systems that open and close with the press of a button.
Compatible with 2015-2024 Ford Edge, left, this replacement support is made to match the fit and function expected in a factory-style power liftgate setup.
Key Features
- Electro-mechanical liftgate lift support for power liftgate systems
- Fits 2015-2024 Ford Edge, left
- Extended length: 24.02 in. (610.1 mm)
- Compressed length: 17.33 in. (440.1 mm)
- Stroke length: 6.69 in. (170 mm)
- Ball socket ends with nylon end materials
- Square connector shape with female adapter connector
- Wiring harness included
- Installation instructions included
Detailed Description
Stabilus POWERISE 2A-944330 is a replacement liftgate lift support for vehicles equipped with a power liftgate system. It is built for the left side of the Ford Edge and uses an electro-mechanical design to support automatic opening and closing operation. The unit is specified with ball socket ends, a square adapter connector, and a wiring harness for integration with the vehicle’s power liftgate system. The 24.02-inch extended length, 17.33-inch compressed length, and 6.69-inch stroke length provide the dimensional profile needed for proper liftgate movement. This part cross-references Ford OE numbers such as FT4Z14B351A and KT4Z14B351A for the same application. Part number 2A-944330 is a direct-fit service option for Ford Edge owners replacing a worn or failed power liftgate support.
What It Helps Fix
- Liftgate that opens slowly or stops before reaching full height
- Power liftgate that will not open or close consistently
- Uneven or weak liftgate movement on the left side
- Intermittent operation caused by a failing electro-mechanical support
- Loss of smooth, controlled automatic liftgate function
Installation Notes and Tips
Verify left-side placement before installation. Confirm connector style, ball socket attachment points, and liftgate dimensions against the original unit on the vehicle. Follow the included installation instructions and check that the power liftgate system is fully calibrated after replacement. This part is listed for 2015-2024 Ford Edge, left, and should be matched to the vehicle’s power liftgate configuration.
Quality Assurance
Stabilus manufactures POWERISE components to the same design standards and durability expectations used in factory-style power liftgate systems. Part number 2A-944330 is built for dependable operation in the Ford Edge application and includes the wiring harness and installation instructions needed for service replacement.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Ford | Edge | Left | Powerise |
| 2023 | Ford | Edge | Left | Powerise |
| 2022 | Ford | Edge | Left | Powerise |
| 2021 | Ford | Edge | Left | Powerise |
| 2020 | Ford | Edge | Left | Powerise |
| 2019 | Ford | Edge | Left | Powerise |
| 2018 | Ford | Edge | Left | Powerise |
| 2017 | Ford | Edge | Left | Powerise |
| 2016 | Ford | Edge | Left | Powerise |
| 2015 | Ford | Edge | Left | Powerise |
