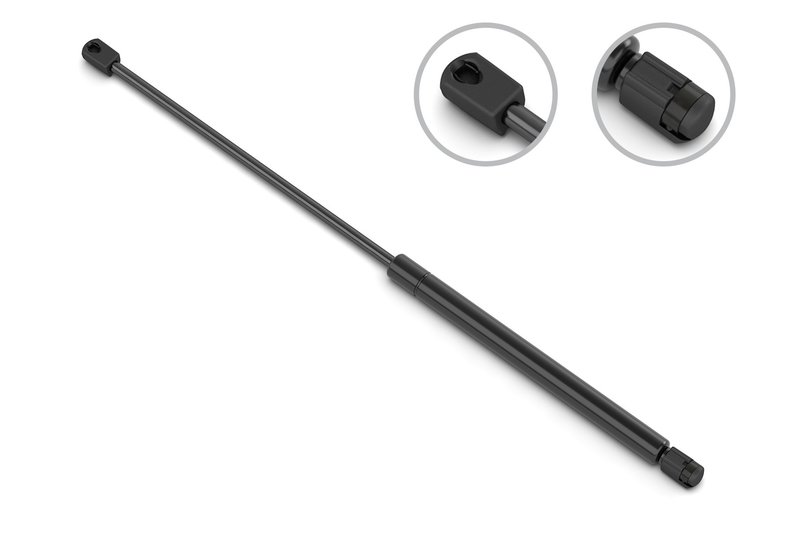

Stabilus 2B-2604MJ Hood Lift Support

Reliable Hood Lift Support for Buick, Cadillac, and Oldsmobile

The Stabilus 2B-2604MJ Hood Lift Support is engineered to provide consistent and smooth hood operation for select Buick, Cadillac, and Oldsmobile models. Designed to meet precise specifications, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Buick Aurora, Cadillac Seville, and Oldsmobile Riviera
• Compressed length: 18.327 inches (465.5 mm)
• Extended length: 33.307 inches (846 mm)
• Rod diameter: 8 mm (0.315 inches) with plastic socket connection
• Tube diameter: 18 mm
• Force rating: 115 Newtons (26 lbs)
• Non-engine specific, designed for body hood support

Technical Details of the Stabilus 2B-2604MJ Hood Lift Support

This hood lift support features a robust 8 mm rod diameter and an 18 mm tube diameter, providing the necessary strength and durability for reliable hood operation. The compressed length measures 18.327 inches (465.5 mm), extending up to 33.307 inches (846 mm) when fully deployed. The plastic socket rod end attachment ensures secure and smooth connection points, reducing wear and facilitating easy installation. With a force rating of 115 Newtons (26 lbs), this lift support offers balanced resistance to hold the hood firmly in place without sudden drops or instability.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Buick Aurora, Cadillac Seville, and Oldsmobile Riviera
• Prevents hood from slamming shut unexpectedly
• Eliminates difficulty in opening or holding the hood open
• Restores smooth and controlled hood movement
• Supports safe engine bay access during maintenance

Installation Notes and Tips

Installation of the Stabilus 2B-2604MJ hood lift support requires removal of the old lift support and attachment of the new unit using the existing mounting points. The plastic socket rod end connection allows for straightforward snap-in installation. Ensure the hood is securely supported during replacement to avoid injury. No additional hardware kit is included, so retain original mounting components. Verify the compressed and extended lengths match the vehicle’s requirements before installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for precision engineering and durability. The 2B-2604MJ hood lift support is manufactured to meet OEM standards for fit and function. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance in automotive applications.
