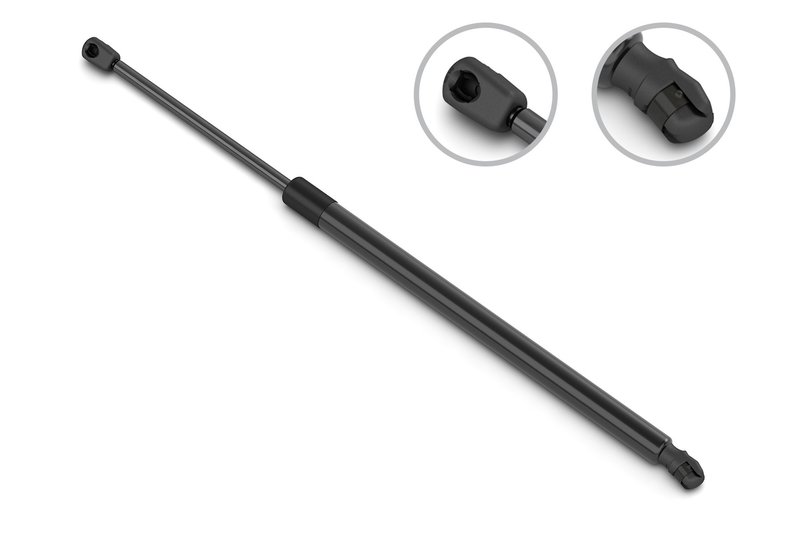

Stabilus 2B-273935 Liftgate Lift Support

Controlled Liftgate Motion

The Stabilus 2B-273935 liftgate lift support is engineered for smooth, controlled opening and closing on select Honda CR-V models. It uses gas-charged force with dynamic damping to slow the liftgate near the end of travel for a more precise stop.

Fits 2017-2022 Honda CR-V, N/A, w/o Power Liftgate. This Stabilus 2B-273935 lift support is built for application-specific fitment and OE-style motion control.

Key Features

• Gas-charged lift support for liftgate operation
• Dynamic damping helps regulate extension speed
• Ball socket ends with nylon end materials
• Compressed length: 19.92 in. (506 mm)
• Extended length: 28.64 in. (727.5 mm)
• Stroke length: 8.72 in. (221.5 mm)
• Maximum force: 101 lb (450 N)
• Cylinder outside diameter: 0.866 in. (22 mm)
• Inner shaft diameter: 0.315 in. (8 mm)

Detailed Description

Stabilus 2B-273935 is a Lift-O-Mat liftgate support designed for controlled motion in the rear body opening. The gas spring construction and application-specific damping profile help the liftgate move with consistent resistance and a gentle stop at full extension. For drivers searching for a 2017-2022 Honda CR-V liftgate lift support without power liftgate, this part number provides the correct OE-style solution for the listed application.

The Lift-O-Mat design uses a groove-based damping approach to manage gas flow during extension, which helps maintain predictable movement throughout the stroke. This makes the Stabilus 2B-273935 a practical replacement when the original lift support no longer holds the liftgate properly or opens with uneven effort. This part cross-references Tuff Support 610279 for the same application.

What It Helps Fix

• Liftgate that drops instead of staying open
• Uneven or jerky liftgate movement
• Excessive effort needed to raise the rear hatch
• Liftgate that stops short or closes too quickly
• Worn gas strut performance on a Honda CR-V rear hatch

Installation Notes

Verify vehicle fitment before installation and confirm the liftgate is supported safely during service. This part uses ball socket ends, so inspect the mounting points for wear or damage before transferring the support. For 2017-2022 Honda CR-V applications, confirm the vehicle is equipped without a power liftgate before ordering.

Quality Assurance

Stabilus is known for OE-level gas spring engineering and application-specific damping control. The 2B-273935 is built to deliver consistent liftgate support performance for the listed Honda CR-V fitment.
