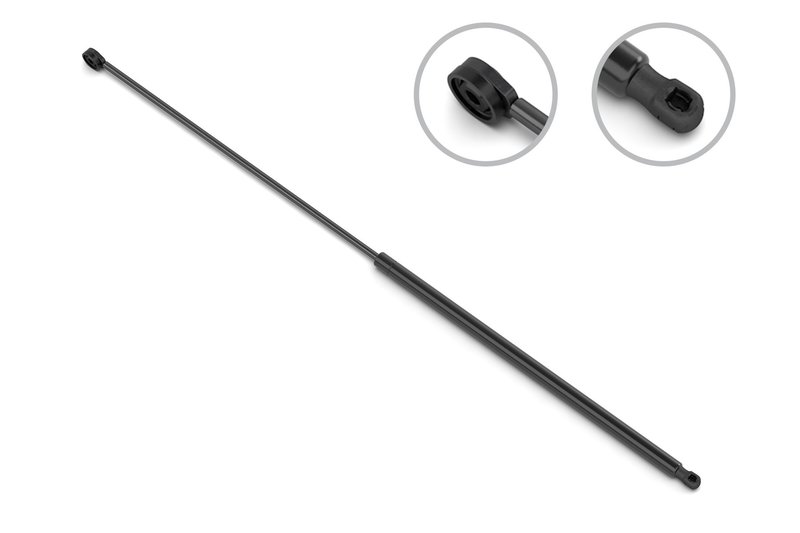

Stabilus 2B-3104LN Hatch Lift Support

Overview of Stabilus 2B-3104LN Gas Spring for Chevrolet Camaro and Pontiac Firebird

The Stabilus 2B-3104LN gas spring is engineered to provide reliable support and smooth operation for select Chevrolet Camaro and Pontiac Firebird models. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in automotive applications requiring controlled motion.

• Compressed length: 21.772 inches (553 mm)
• Extended length: 29.213 inches (742 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 515 Newtons (116 lbs)
• Rod end attachment: Metal eyelet with 13.3 mm (0.524 inches) diameter

Technical Details and Specifications

The Stabilus 2B-3104LN gas spring features a robust 10 mm rod diameter and a 22 mm tube diameter, providing a balance of strength and compact size suitable for automotive applications. Its compressed length measures 21.772 inches (553 mm), extending to 29.213 inches (742 mm) when fully deployed. The gas spring delivers a force of 515 Newtons (116 lbs), ensuring adequate support for components such as hoods, trunks, or hatchbacks on Chevrolet Camaro and Pontiac Firebird vehicles. The metal eyelet rod end attachment, with a diameter of 13.3 mm (0.524 inches), facilitates secure mounting and reliable connection.

Compatible Vehicles and Applications

This gas spring is specifically compatible with Chevrolet Camaro and Pontiac Firebird models, making it a suitable replacement part for maintaining or restoring proper function in these vehicles. It is not designed for agricultural equipment, heavy trucks, motorcycles, marine, or industrial off-highway use.

• Supports hood or trunk lift and hold functions
• Replaces worn or damaged gas springs in Camaro and Firebird
• Improves smoothness and control of opening and closing motions
• Prevents sudden drops or slamming of vehicle panels

Installation Notes and Tips

When installing the Stabilus 2B-3104LN gas spring, ensure the metal eyelet connections are properly aligned and securely fastened to avoid premature wear or failure. It is recommended to replace gas springs in pairs to maintain balanced support. Use appropriate tools to avoid damage to the rod or tube during installation. Verify the orientation matches the original equipment to ensure optimal performance.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet stringent quality standards, providing consistent force and durability. While specific warranty details for part number 2B-3104LN should be confirmed with the manufacturer or distributor, Stabilus products typically come with a limited warranty covering defects in materials and workmanship under normal use conditions.
