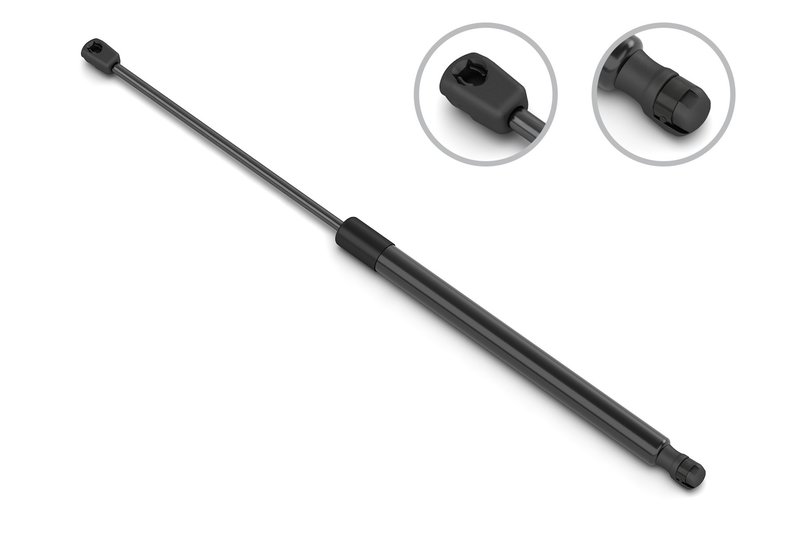

Stabilus 2B-638384
| Brand | Stabilus 2B-638384 |
|---|---|
| 0.394 | Y |
| Compressed Length | 16.476 |
| Compressed Length | 418.5 |
| Rod Diameter | 10 |
| Upper Inside Diameter | Y |
| Tube Diameter | 22 |
| Extended Length | 28.051 |
| Extended Length | 712.5 |
| Agricultural Equipment | N |
| Body | 0.866 |
| Engine Specific | N |
| Force (N) | 830 |
| Force Lbs | 186.6 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.394 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.393700787401575 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Volkswagen · 5 vehicles |
Direct-fit replacement. Built to match the specified application with Stabilus engineering.
Controlled support. 830 N force rating helps manage opening and closing movement.
Socket connection design. Plastic socket ends simplify matching the original attachment style.
Cross-references Stabilus 2B-638384, 2K0827550B and 2K0827550C for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
This Stabilus gas spring is built for a direct-fit application on compatible Volkswagen Caddy models. It uses plastic socket connections and a specified force rating to provide controlled support for lift or hold-open functions. Part number 2B-638384 is the reference to match when verifying replacement fitment.
Key Features
- Stabilus replacement gas spring with part number 2B-638384.
- 830 N force rating for controlled support.
- Plastic socket rod and tube connections for a secure attachment style.
- 16.476 in compressed length and 28.051 in extended length.
- 10 mm rod end and tube end attachment diameter.
Detailed Description
Stabilus 2B-638384 is a gas spring specified for 2014-2018 Volkswagen Caddy applications. The unit measures 418.5 mm compressed and 712.5 mm extended, with a 10 mm rod diameter and 22 mm tube diameter. Its 830 N force rating helps control movement smoothly while supporting the load during opening and closing cycles. If you are replacing a worn lift support on a Volkswagen Caddy, part number 2B-638384 provides the dimensional and connection details needed for a proper match.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Is Used For
- Loss of lift support in a hatch, lid, or similar panel.
- Drooping or failing hold-open performance.
- Uneven or inconsistent opening effort.
- Replacement of a gas spring with matching dimensions and force.
Installation Notes and Tips
Verify the compressed length, extended length, force rating, and socket-style connections before installation. Compare the old unit to part number 2B-638384 to confirm the same attachment diameter and overall dimensions. Check the mounting points for wear or damage before fitting the new gas spring.
Quality Assurance
Stabilus is a recognized gas spring manufacturer, and this part is identified by the Stabilus number 2B-638384 for application matching.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2018 | Volkswagen | Caddy | — |
| 2017 | Volkswagen | Caddy | — |
| 2016 | Volkswagen | Caddy | — |
| 2015 | Volkswagen | Caddy | — |
| 2014 | Volkswagen | Caddy | — |
