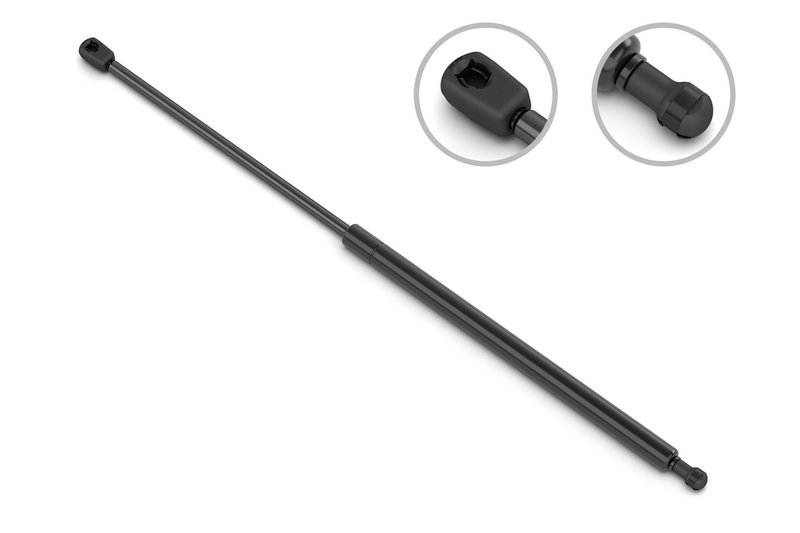

Stabilus 2B-845860 Hood Lift Support
| Brand | Stabilus 2B-845860 |
|---|---|
| 0.315 | Y |
| Compressed Length | 16.378 |
| Compressed Length | 416 |
| Rod Diameter | 8 |
| Upper Inside Diameter | Y |
| Tube Diameter | 18 |
| Extended Length | 29.094 |
| Extended Length | 739 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 270 |
| Force Lbs | 61 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Toyota · 5 vehicles |
Direct replacement. Replacement hood lift support for straightforward service and accurate fitment.
Controlled lift force. 61 lb rating helps hold the hood open with steady support.
Socket-end design. Plastic rod socket and metal tube socket match the listed application.
Cross-references AP Exhaust 7452, Baldwin B7452 and Stabilus 2B-845860 for the same application. See all 9.
Hood Lift Support Overview
The Stabilus 2B-845860 hood lift support is a direct replacement gas strut for the hood on select Toyota Sequoia applications. It provides controlled hood opening and holding force for easier access during routine service and inspections.
- Direct replacement hood lift support from Stabilus
- 61 lb of force for controlled hood support
- Plastic socket rod connection and metal socket tube connection
- Extended length of 29.094 in. for the specified application
- Part number 2B-845860 for ordering and verification
Product Details
This hood lift support is built with a 270 N force rating and measured compressed and extended lengths that match the listed application requirements. The Stabilus 2B-845860 uses a plastic socket on the rod end and a metal socket on the tube end, with 10 mm attachment diameters. For buyers searching for a Toyota Sequoia hood lift support, this part number 2B-845860 provides a fitment-specific replacement option for the listed model years.
Common Replacement Issues
- Hood drops too quickly when opened
- Hood will not stay raised during service
- Weak or worn gas strut performance
- Uneven or inconsistent hood support
Installation Notes
Verify the vehicle year and application notes before installation. This support is listed for 2019-2022 Toyota Sequoia and for 2018 Toyota Sequoia built from 08/2017. Confirm the mounting style and length match the original part before removal. The part number 2B-845860 should be checked against the existing support and vehicle catalog data.
Quality Assurance
Stabilus is a recognized supplier of gas spring and lift support components, and this hood support is identified by part number 2B-845860 for accurate replacement matching.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2022 | Toyota | Sequoia | — |
| 2021 | Toyota | Sequoia | — |
| 2020 | Toyota | Sequoia | — |
| 2019 | Toyota | Sequoia | — |
| 2018 | Toyota | Sequoia | From 08/2017 |
