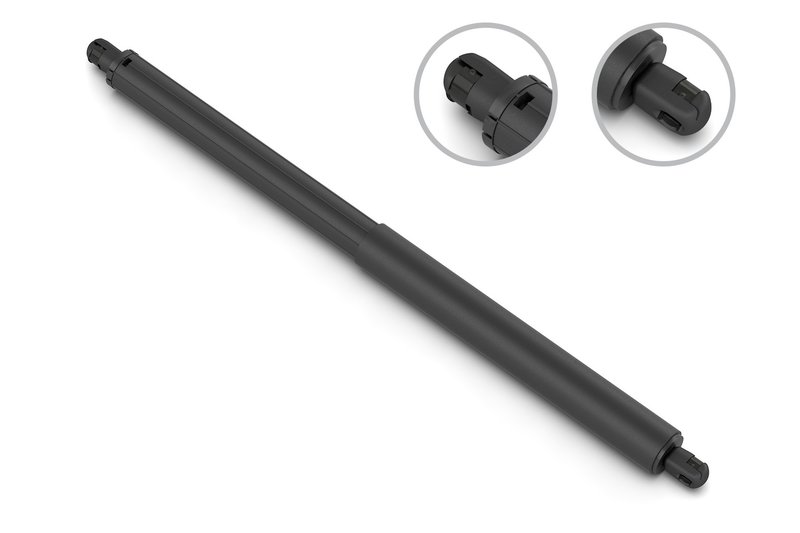

Stabilus 2C-656095 Hatch Lift Support

Overview of Stabilus 2C-656095 Gas Spring for Ford Explorer

The Stabilus 2C-656095 gas spring is designed specifically for use with Ford Explorer models, providing reliable support and smooth operation. Engineered with precise dimensions and force ratings, this gas spring ensures consistent performance for your vehicle's lift or support applications.

• Compressed length: 17.185 inches (436.5 mm)
• Extended length: 26.024 inches (661 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 800 Newtons (180 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches) with plastic socket connection

Technical Details and Specifications

This Stabilus gas spring features a robust 8 mm rod diameter and an 18 mm tube diameter, providing a balanced combination of strength and compact size. The compressed length measures 17.185 inches (436.5 mm), extending to 26.024 inches (661 mm) when fully deployed. It delivers a force of 800 Newtons (180 lbs), suitable for supporting medium loads typically found in automotive lift applications. The rod connection utilizes a plastic socket, ensuring secure attachment and smooth articulation. This part is not engine-specific and is designed exclusively for Ford Explorer vehicles, ensuring compatibility and proper fitment.

Applications and Problem Solving

• Supports liftgate or hood operation on Ford Explorer models
• Replaces worn or weakened gas springs causing difficulty in opening or closing
• Restores smooth and controlled motion to vehicle components
• Prevents sudden drops or unsafe operation of supported parts
• Maintains proper tension and positioning for vehicle panels

Installation Notes and Tips

Installation of the Stabilus 2C-656095 gas spring requires basic mechanical skills and appropriate tools. Ensure the vehicle is safely supported before removing the old gas spring. The plastic socket rod end connection should be carefully aligned and snapped into place to avoid damage. Verify the orientation matches the original part to maintain correct force direction. No additional hardware kit is included, so retain existing mounting components for reinstallation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and consistent performance. While specific warranty details for part number 2C-656095 are not provided here, Stabilus products typically come with manufacturer-backed quality assurance. Using this gas spring on compatible Ford Explorer models helps ensure reliable operation and longevity under normal use conditions.
