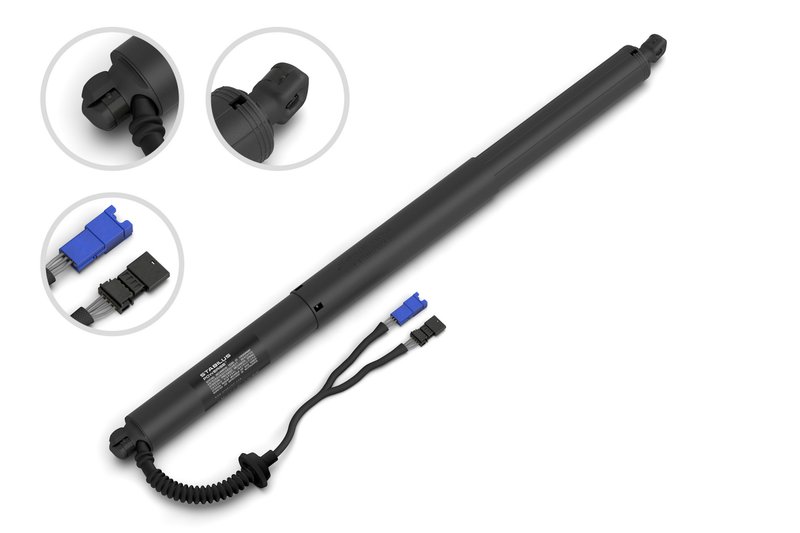

Stabilus 3A-202012 Liftgate Lift Support
| Brand | Stabilus 3A-202012 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 17.47 |
| Compressed Length | 443.7 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 22.98 |
| Extended Length | 583.7 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 140 |
| Stroke Length | 5.51 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | Yes |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | BMW · 3 vehicles |
Power liftgate replacement. Restores automatic opening and closing with factory-style convenience.
Electro-mechanical design. Delivers smooth, reliable operation with integrated safety sensing.
Adapter connector. Includes a rectangular female connector and wiring harness for installation.
Cross-references Stabilus 3A-202012, 51 24 7 441 799 and 51247441799 for the same application. See all 3.
Power Liftgate Support for BMW X5
Restore smooth, automatic liftgate operation with this Stabilus POWERISE electro-mechanical liftgate lift support. Built for the 2019-2021 BMW X5, this replacement unit is engineered for power liftgate opening and closing systems that operate from the remote or vehicle controls.
Part number 3A-202012 is a direct-fit solution for BMW X5 Powerise applications and is designed to deliver consistent liftgate movement, controlled stopping at intermediate positions, and integrated safety monitoring during operation.
Key Features
- Electro-mechanical liftgate lift support for power-operated rear liftgates
- Fits 2019-2021 BMW X5, N/A, Powerise
- Extended length: 22.98 in. (583.7 mm)
- Compressed length: 17.47 in. (443.7 mm)
- Stroke length: 5.51 in. (140 mm)
- Ball socket ends with nylon end materials
- Rectangular female adapter connector
- Wiring harness included
- Installation instructions included
Detailed Description
Stabilus 3A-202012 is a POWERISE liftgate lift support made for the BMW X5 platform with factory-style power liftgate operation. It replaces the electro-mechanical support used in 2019, 2020, and 2021 BMW X5 models and is built to match the dimensions and connector style required for proper system function. This part cross-references BMW 51 24 7 441 799 for the same application.
With ball socket mounting points, a rectangular adapter connector, and a 5.51-inch stroke, this unit supports controlled liftgate opening and closing while maintaining the convenience expected from a power rear hatch system. The integrated sensor system helps prevent improper operation during use.
Common Problems This Part May Solve
- Liftgate no longer opens or closes automatically
- Rear hatch stops before reaching the correct open position
- Liftgate movement becomes slow, uneven, or inconsistent
- Power liftgate system shows signs of wear or failure
- Need for a replacement on a 2019-2021 BMW X5 Powerise setup
Installation Notes and Tips
Verify connector shape, connector type, and mounting style before installation. This unit uses ball socket ends and an electro-mechanical design, so proper alignment and secure electrical connection are important for correct operation. Follow the included installation instructions and confirm liftgate calibration after replacement if required by the vehicle system.
Quality Assurance
Stabilus POWERISE components are engineered to the same design standards and durability expectations used for factory-installed power liftgate systems. Part number 3A-202012 is built for dependable operation in BMW X5 Powerise applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2021 | BMW | X5 | Powerise |
| 2020 | BMW | X5 | Powerise |
| 2019 | BMW | X5 | Powerise |
