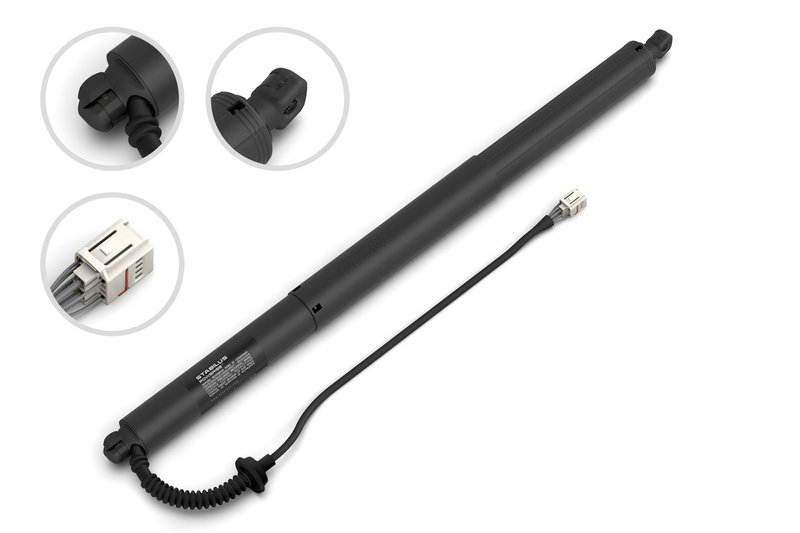

Stabilus 3A-249573 Liftgate Lift Support
| Brand | Stabilus 3A-249573 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 17.51 |
| Compressed Length | 444.7 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 24.04 |
| Extended Length | 610.7 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 166 |
| Stroke Length | 6.54 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | Yes |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | Audi · 6 vehicles |
Power liftgate replacement. Restores automatic opening and closing with factory-style convenience.
Electro-mechanical design. Delivers smooth, reliable operation with integrated safety sensing.
Adapter connector. Includes a wiring harness and installation instructions for easier setup.
Cross-references Stabilus 3A-249573, 83A 827 851 and 83A 827 851 A for the same application. See all 11.
Power Liftgate Replacement for Audi Q3
Restore smooth, automatic liftgate operation with the Stabilus POWERISE liftgate lift support, part number 3A-249573. This electro-mechanical replacement is built for the 2019-2024 Audi Q3 and supports factory-style power opening and closing performance.
Compatible with Audi Q3 Powerise applications, this unit is engineered for precise liftgate movement, adjustable opening height, and integrated safety sensing for controlled operation.
Key Features
- Electro-mechanical liftgate lift support for power liftgate systems
- Fits 2019-2024 Audi Q3, N/A, Powerise
- Extended length: 24.04 in. (610.7 mm)
- Compressed length: 17.51 in. (444.7 mm)
- Stroke length: 6.54 in. (166 mm)
- Ball socket ends with nylon end materials
- Rectangular adapter connector with female connector type
- Wiring harness included
- Installation instructions included
Product Details
The Stabilus 3A-249573 is a POWERISE replacement for vehicles equipped with a factory power liftgate system. It is built to deliver controlled opening and closing action through an electro-mechanical design, with support for intermediate liftgate positions when the system is programmed or operated accordingly. The integrated sensor system is designed to help prevent improper operation and maintain safe liftgate movement. This part cross-references Audi OE application 83A 827 851 for the same application.
Common Issues This Part Can Address
- Liftgate no longer opens or closes automatically
- Liftgate movement is slow, uneven, or inconsistent
- Power liftgate stops responding to remote or switch input
- Liftgate does not hold or reach the programmed opening height
- Safety sensing or controlled movement concerns in the power liftgate system
Installation Notes and Tips
Verify vehicle fitment by year and application before installation. This part uses ball socket ends and an adapter-style rectangular connector, so connector and mounting alignment should be checked against the original unit. Wiring harness and installation instructions are included, which helps streamline replacement on Audi Q3 Powerise-equipped vehicles. Confirm the liftgate system is fully powered down before service and follow the supplied instructions during installation.
Quality Assurance
Stabilus manufactures POWERISE components to meet the design standards and durability expectations associated with factory-style power liftgate systems. Part number 3A-249573 is built for dependable operation in 2019-2024 Audi Q3 applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2024 | Audi | Q3 | Powerise |
| 2023 | Audi | Q3 | Powerise |
| 2022 | Audi | Q3 | Powerise |
| 2021 | Audi | Q3 | Powerise |
| 2020 | Audi | Q3 | Powerise |
| 2019 | Audi | Q3 | Powerise |
