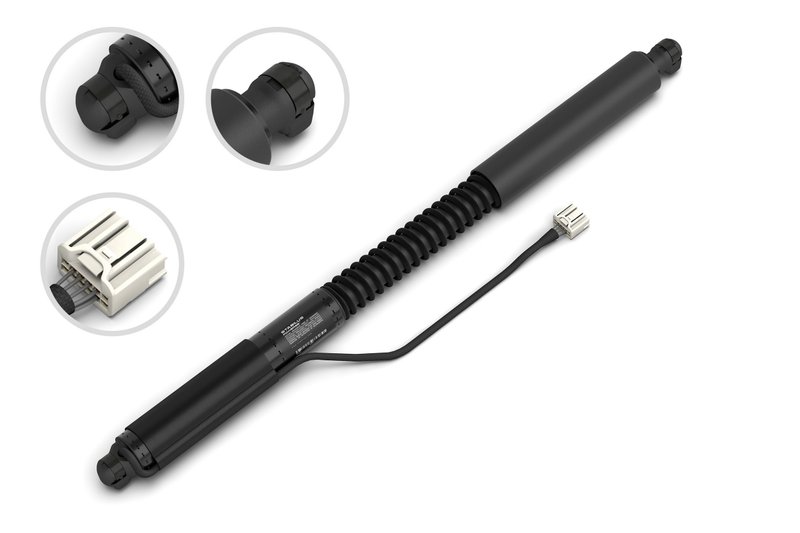

Stabilus 3A-276338 Door Lift Support
| Brand | Stabilus 3A-276338 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 15.82 |
| Compressed Length | 401.8 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 21.49 |
| Extended Length | 545.8 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 144 |
| Stroke Length | 5.67 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | No |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | Tesla · 8 vehicles |
Electro-mechanical design. Provides smooth, automatic liftgate operation at the touch of a button.
Ball socket ends. Helps deliver secure, dependable attachment at both connection points.
Wiring harness included. Ready for a cleaner replacement with the needed electrical connection.
Cross-references GSP 124074, Stabilus 3A-276338 and 513634 for the same application. See all 7.
Power Liftgate Replacement for Tesla X
Restore automatic liftgate operation with this Stabilus POWERISE electro-mechanical door lift support. Built for 2016-2023 Tesla X applications, part number 3A-276338 is engineered for smooth opening and closing, adjustable lift height, and integrated safety sensing for controlled operation.
- Electro-mechanical power liftgate support for rear liftgate operation
- Fits 2016-2023 Tesla X, N/A
- Extended length: 21.49 in. (545.8 mm)
- Compressed length: 15.82 in. (401.8 mm)
- Stroke length: 5.67 in. (144 mm)
- Ball socket ends with nylon end materials
- Rectangular female adapter connector
- Wiring harness included
- Application-specific design for Tesla X power liftgate service
Detailed Product Overview
Stabilus 3A-276338 is a POWERISE power liftgate replacement built to match the function of factory-style automatic liftgate systems. With remote-activated opening and closing, this electro-mechanical unit supports convenient cargo access while allowing the liftgate to stop at an intermediate position when needed. The integrated sensor system adds a layer of operational safety by helping prevent improper use during liftgate movement. This part cross-references GSP 124074 for the same application.
Common Problems This Part Can Address
- Liftgate no longer opens or closes automatically
- Slow, uneven, or incomplete power liftgate movement
- Liftgate stops before reaching the programmed open height
- Loss of controlled, hands-free rear cargo access
- Faulty power liftgate support on a Tesla X
Installation Notes and Tips
Confirm connector shape, connector type, and end style before installation. This unit uses ball socket ends, a rectangular adapter connector, and includes a wiring harness. Installation instructions are not included, so verify vehicle-specific procedures for 2016-2023 Tesla X service before replacement. Part number 3A-276338 should be matched to the original liftgate configuration and fitment notes.
Quality Assurance
POWERISE by Stabilus is built with the same design standards and durability expectations used for factory-installed power liftgate systems. For Tesla X owners needing a direct replacement for automatic rear liftgate operation, 3A-276338 provides an application-specific solution backed by Stabilus engineering.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2023 | Tesla | X | Powerise |
| 2022 | Tesla | X | Powerise |
| 2021 | Tesla | X | Powerise |
| 2020 | Tesla | X | Powerise |
| 2019 | Tesla | X | Powerise |
| 2018 | Tesla | X | Powerise |
| 2017 | Tesla | X | Powerise |
| 2016 | Tesla | X | Powerise |
| No rows match your filter. | |||
