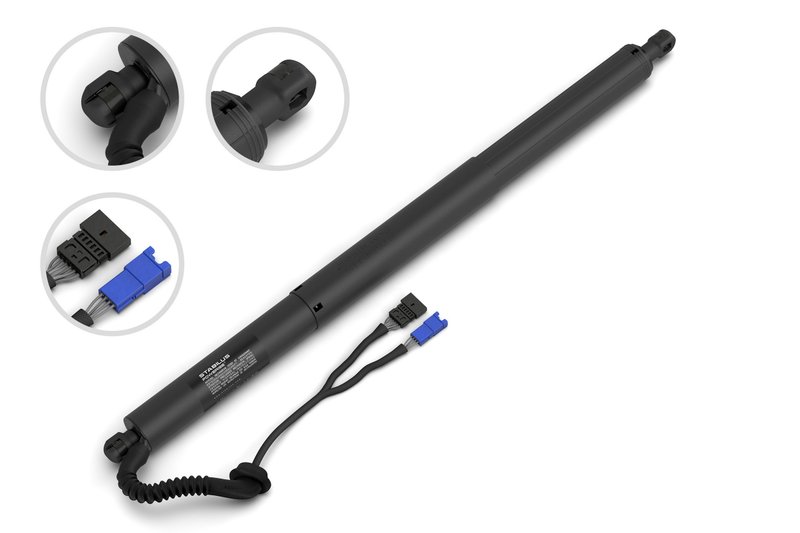

Stabilus 3A-409684 Liftgate Lift Support - Left
Power Liftgate Replacement for BMW X5
Restore smooth, automatic liftgate operation with the Stabilus POWERISE liftgate lift support, part number 3A-409684. This electro-mechanical replacement is built for the 2018 BMW X5, Left, Powerise application and is engineered to deliver controlled opening and closing with factory-style operation.
- Electro-mechanical liftgate lift support for power liftgate systems
- Fits 2018 BMW X5, Left
- Compressed length: 15.75 in. (400 mm)
- Extended length: 21.22 in. (539 mm)
- Stroke length: 5.47 in. (139 mm)
- Ball socket ends with nylon end materials
- Rectangular female adapter connector
- Wiring harness included
- Installation instructions included
Application Details
Stabilus 3A-409684 is a direct-fit power liftgate replacement for the left side of the 2018 BMW X5. It uses ball socket ends and an electro-mechanical design to support automatic liftgate opening and closing, while allowing the liftgate to stop at an intermediate position when needed. The POWERISE system is built around the same design standards used in factory-installed power liftgate setups, making it a practical choice when replacing a worn or malfunctioning unit on a BMW X5.
This part cross-references BMW OE numbers 51 24 7 434 041 and 51247434041 for the same application. The part number 3A-409684 is also useful when verifying the correct Stabilus replacement before ordering.
Common Problems This Part Can Address
- Liftgate opens slowly or stops before reaching full height
- Power liftgate does not open or close automatically
- Liftgate movement feels uneven or inconsistent
- Liftgate will not hold the selected opening position
- Original power lift support shows wear or loss of function
Installation Notes
Confirm left-side fitment on the 2018 BMW X5 before installation. Match the connector shape, connector type, and end style to the original unit, and verify the compressed length, extended length, and stroke length against the removed part. The included wiring harness and installation instructions support a more straightforward replacement process, but the vehicle should be checked for proper power liftgate operation after installation.
Quality Assurance
Stabilus manufactures POWERISE components for power liftgate applications with an emphasis on reliable operation, safety sensing, and durable electro-mechanical performance. Part number 3A-409684 is built for application-specific use on the BMW X5 power liftgate system.
| Brand | Stabilus |
|---|---|
| Part Number | 3A-409684 |
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 15.75 |
| Compressed Length | 400 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 21.22 |
| Extended Length | 539 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 139 |
| Stroke Length | 5.47 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | Yes |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2018 | BMW | X5 | M | Left | Powerise |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
