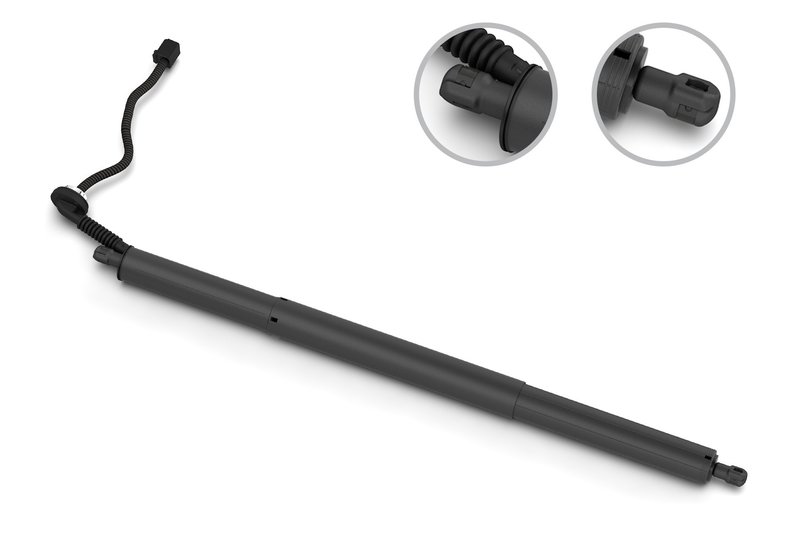

Stabilus 3A-550680 Tailgate Pull Down Motor - Left
| Brand | Stabilus 3A-550680 |
|---|---|
| Position | Left |
| Y | |
| Y | |
| Compressed Length | 19.059 |
| Compressed Length | 484.1 |
| Extended Length | 25.929 |
| Extended Length | 658.6 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | BMW · 7 vehicles |
Plastic socket connections. Provide a secure, easy-fit attachment at the rod, shaft, and tube ends.
Compact lift motor. Measures 19.059 inches compressed and 25.929 inches extended.
Hardware kit not included. Use existing hardware for installation.
Cross-references Stabilus 3A-550680, 51 24 7 232 003 and 51 24 7 432 741 for the same application. See all 19.
BMW X3 Tailgate Lift Motor
This Stabilus tailgate lift motor is built for the left side of the power liftgate system on select 2011-2017 BMW X3 models with Powerise. It is a direct-fit replacement identified by part number 3A-550680 and is sized to match the original unit for proper tailgate operation.
Key Features
- Brand: Stabilus
- Part number: 3A-550680
- Category: Body > Tailgate and Midgate
- Left-side application for power liftgate systems
- Compressed length: 19.059 in. (484.1 mm)
- Extended length: 25.929 in. (658.6 mm)
- Plastic socket rod, shaft, and tube connections
- Rod end attachment diameter: 0.394 in. (10 mm)
- Tube end attachment diameter: 0.394 in. (10 mm)
Product Details
Stabilus 3A-550680 is a tailgate lift motor for the left side of the BMW X3 power liftgate (Powerise) system. The listed compressed and extended lengths, along with the plastic socket connection points, support OE-style fitment for the tailgate mechanism. This part cross-references BMW OE numbers 51 24 7 232 003 and 51 24 7 432 741 for the same application.
What It Helps Fix
- Tailgate that opens or closes slowly
- Power liftgate that stops before full travel
- Uneven or weak tailgate movement on the left side
- Tailgate operation issues caused by a worn lift motor
- Noise or binding during power liftgate movement
Installation Notes
Fits 2011-2017 BMW X3, left. Confirm the vehicle is equipped with the Powerise power liftgate system before ordering. Match the original compressed length, extended length, and socket-style attachment points to the removed unit for proper replacement. Verify connector alignment and mounting orientation during installation.
Quality Assurance
Stabilus is a recognized OE supplier for lift support and motion-control components, and this part is built to match the original application requirements for the BMW X3 power liftgate system.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2016 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2015 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2014 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2013 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2012 | BMW | X3 | Left | Power Liftgate (Powerise) |
| 2011 | BMW | X3 | Left | Power Liftgate (Powerise) |
