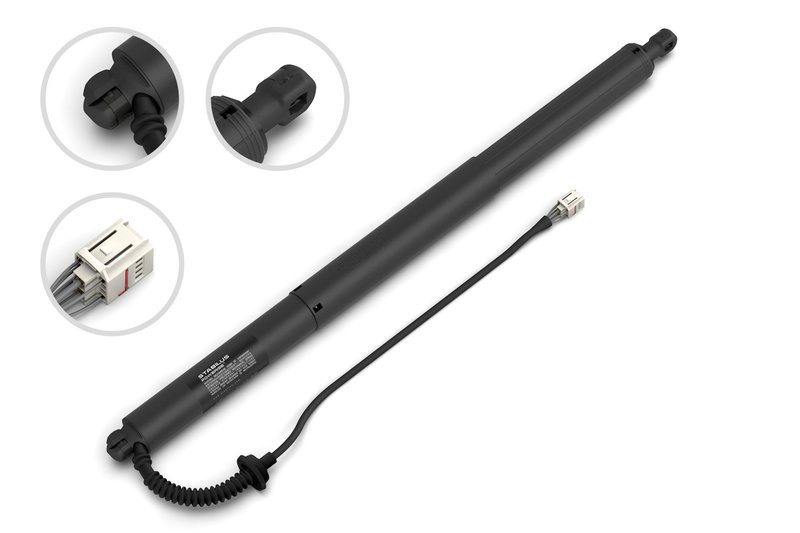

Stabilus 3A-678100 Liftgate Lift Support
| Brand | Stabilus 3A-678100 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 17.84 |
| Compressed Length | 453.2 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 25.34 |
| Extended Length | 643.7 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 190.5 |
| Stroke Length | 7.5 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | Yes |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | Seat · 8 vehicles |
Application-specific fit. Built for powered liftgate systems with factory-style operation.
Electro-mechanical design. Supports smooth automatic opening and closing performance.
Wiring harness included. Includes an adapter connector and installation instructions.
Cross-references Stabilus 3A-678100, 57A 827 851 A and 57A 827 851 D for the same application. See all 29.
Power liftgate replacement
The Stabilus POWERISE liftgate lift support, part number 3A-678100, is an application-specific electro-mechanical replacement for vehicles with a powered liftgate system. It is built to restore automatic opening and closing performance with factory-style operation and integrated safety control.
Key features
- Electro-mechanical lift support for powered liftgate systems
- Ball socket ends with nylon end materials for secure attachment points
- Rectangular female adapter connector with wiring harness included
- Compressed length of 17.84 in. and extended length of 25.34 in.
- 7.5 in. stroke length for controlled liftgate movement
- Installation instructions included
Detailed description
POWERISE by Stabilus is engineered for power liftgate applications that require smooth, reliable opening and closing behavior. This liftgate lift support uses an electro-mechanical design and an integrated connector adapter to match the needs of powered liftgate systems. The Stabilus 3A-678100 is a direct replacement option for restoring consistent liftgate operation on the Seat Ateca, and it is built around the same type of functional requirements used in factory-installed systems. This part cross-references Volkswagen Group numbers 57A 827 851 A and 575 827 851 for the same application.
What it is used for
- Liftgate that no longer opens or closes automatically
- Inconsistent powered liftgate movement
- Loss of controlled intermediate opening positions
- Worn or failing electro-mechanical lift support assembly
Installation notes and tips
Verify connector shape, connector type, and end style before installation. This part includes a wiring harness and installation instructions, but mounting hardware is not listed in the product data. Confirm the application-specific fitment for the Seat Ateca before ordering. Part number 3A-678100 should be matched exactly during replacement.
Quality assurance
Stabilus POWERISE is built to the same quality and durability standards associated with factory-style power liftgate systems. The integrated sensor system is designed to support safe operation by reducing the risk of improper use.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2024 | Seat | Ateca | Powerise |
| 2023 | Seat | Ateca | Powerise |
| 2022 | Seat | Ateca | Powerise |
| 2021 | Seat | Ateca | Powerise |
| 2020 | Seat | Ateca | Powerise |
| 2019 | Seat | Ateca | Powerise |
| 2018 | Seat | Ateca | Powerise |
| 2017 | Seat | Ateca | Powerise |
