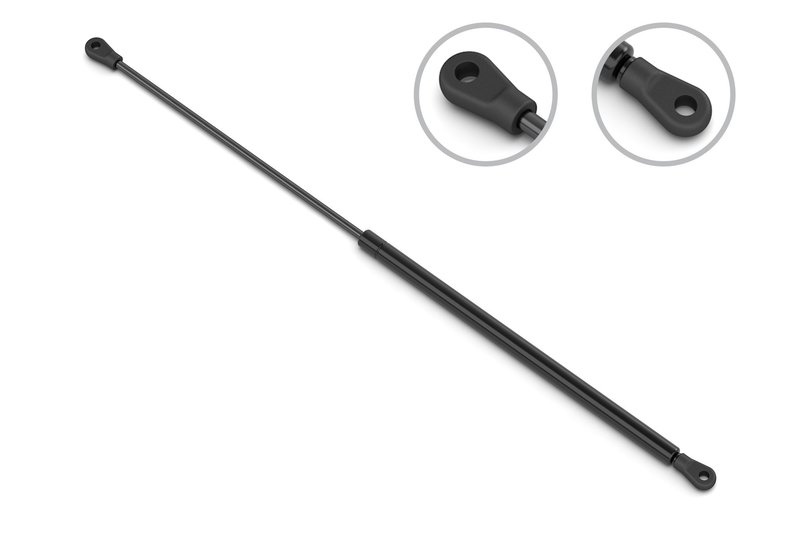

Stabilus 3B-024339 Hood Lift Support

Reliable Hood Lift Support for Audi A4, A4 Quattro, and S4

The Stabilus 3B-024339 hood lift support is engineered to provide consistent and smooth hood operation for Audi A4, A4 Quattro, and S4 models. Designed with precise dimensions and durable materials, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Audi A4, A4 Quattro, and S4 vehicles
• Compressed length: 16.476 inches (418.5 mm)
• Extended length: 28.425 inches (722 mm)
• Rod diameter: 8 mm (0.315 inches) with plastic eyelet connection
• Tube diameter: 18 mm
• Force rating: 310 N (70 lbs) for reliable support
• Part number: 3B-024339 by Stabilus

Technical Details and Specifications

The Stabilus hood lift support 3B-024339 features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a robust structure for hood support. Its compressed length measures 16.476 inches (418.5 mm), extending up to 28.425 inches (722 mm) to accommodate the full range of hood motion. The plastic eyelet rod end attachment ensures secure mounting and smooth pivoting during hood operation. With a force rating of 310 Newtons (70 pounds), this lift support offers consistent lifting power suitable for the hood weight of Audi A4, A4 Quattro, and S4 models.

Applications and Problem Solving

• Replaces worn or weak hood lift supports causing difficulty in hood opening
• Eliminates hood slamming or sudden closing hazards
• Restores smooth and controlled hood lifting and holding
• Prevents hood damage due to improper support
• Ensures safety during engine bay access and maintenance

Installation Notes and Tips

Installation of the Stabilus 3B-024339 hood lift support requires matching the compressed and extended lengths to the original part. Ensure the plastic eyelet connections align with the vehicle’s mounting points. Use appropriate tools to remove the old lift support and secure the new one without forcing the rod or tube. Verify smooth operation by carefully opening and closing the hood after installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. The 3B-024339 hood lift support is manufactured to meet OEM specifications for Audi A4, A4 Quattro, and S4 models. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance and longevity.
