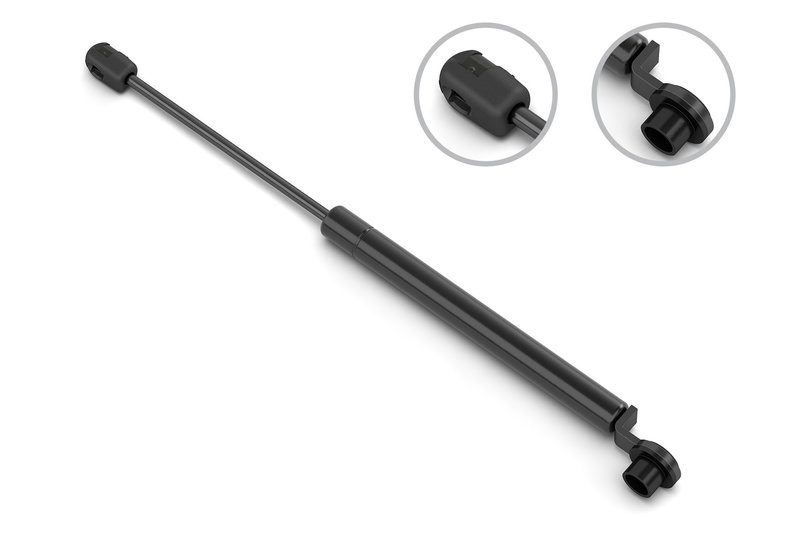

Stabilus 3B-0254US Hatch Lift Support

Overview of Stabilus 3B-0254US Gas Spring for Honda Civic

The Stabilus 3B-0254US gas spring is engineered for reliable performance in Honda Civic models. Designed with precise dimensions and force specifications, this gas spring ensures smooth operation and durability for your vehicle's lift or support applications.

• Compressed length: 14.724 inches (374 mm)
• Extended length: 24.567 inches (624 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 330 Newtons (74 lbs)
• Rod connection: Plastic socket
• Includes hardware kit number 663984

Technical Details and Specifications

This Stabilus gas spring, part number 3B-0254US, features a robust design with a 0.748 inch body diameter and a rod end attachment diameter of 10 mm (0.394 inches). The plastic socket rod and shaft connections provide secure mounting while allowing smooth articulation. With a force rating of 330 N, it delivers consistent support suitable for various lift applications in the Honda Civic. The gas spring is not engine specific and is designed for non-heavy truck, non-agricultural, and non-marine use, focusing on automotive applications.

Compatible Applications for Honda Civic

This gas spring is compatible with Honda Civic models requiring a lift support with the specified dimensions and force. It is ideal for hood, trunk, or hatch support where precise length and force are critical for proper operation.

• Supports smooth opening and closing of hoods or trunks
• Replaces worn or weak gas springs in Honda Civic
• Prevents sudden closure or slamming of lift components
• Maintains proper lift height and force balance
• Improves safety and ease of use for vehicle access points

Installation Notes and Tips

When installing the Stabilus 3B-0254US gas spring on your Honda Civic, ensure the mounting points match the rod end attachment diameter and connection type. Use the included hardware kit 663984 for secure installation. Avoid forcing the gas spring beyond its extended or compressed lengths to prevent damage. Proper orientation of the plastic socket connections will ensure smooth operation and longevity.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 3B-0254US should be confirmed with the manufacturer or distributor, Stabilus products typically come with a limited warranty covering defects in materials and workmanship under normal use conditions.
