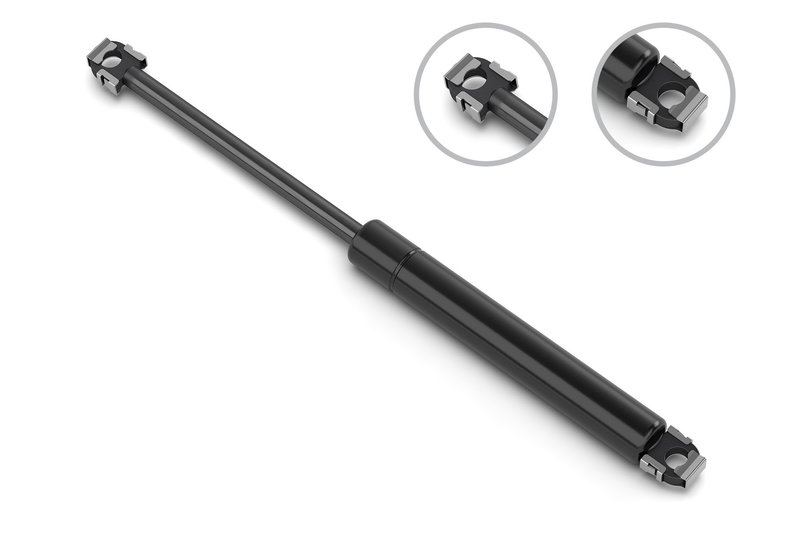

Stabilus 3B-030030 Hood Lift Support

Reliable Hood Lift Support for Buick, Cadillac, and Oldsmobile

The Stabilus 3B-030030 Hood Lift Support is engineered to provide consistent and smooth hood operation for select Buick, Cadillac, and Oldsmobile models. Designed to meet precise specifications, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Buick Eldorado, Cadillac Riviera, Seville, and Oldsmobile Toronado
• Compressed length: 16.122 inches (409.5 mm)
• Extended length: 28.150 inches (715 mm)
• Rod diameter: 8 mm (0.315 inches) with metal blade connection
• Tube diameter: 18 mm
• Force rating: 247 N (56 lbs) for reliable support
• Part number: 3B-030030 by Stabilus

Technical Details and Specifications

This hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a sturdy and durable structure. The compressed length measures 16.122 inches (409.5 mm), while the extended length reaches 28.150 inches (715 mm), allowing for optimal hood positioning. The rod connection uses a metal blade design, ensuring secure attachment and smooth operation. With a force rating of 247 Newtons (56 pounds), this lift support offers consistent performance for the hood of Buick Eldorado, Cadillac Riviera, Seville, and Oldsmobile Toronado models.

Applications and Problem Solving

• Supports hood weight for safe and easy lifting
• Prevents hood from slamming shut unexpectedly
• Replaces worn or weak hood lift supports to restore proper function
• Eliminates difficulty in opening or holding the hood open
• Ensures smooth hood operation during maintenance or inspection

Installation Notes and Tips

Installation of the Stabilus 3B-030030 hood lift support requires matching the compressed and extended lengths to the vehicle’s hood specifications. Ensure the metal blade rod connection is securely attached to the hood and frame mounting points. It is recommended to replace lift supports in pairs to maintain balanced hood operation. Use appropriate tools to avoid damage to the mounting points during installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. The 3B-030030 hood lift support is manufactured to meet OEM standards for fit and function. While no specific warranty information is provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance in Buick Eldorado, Cadillac Riviera, Seville, and Oldsmobile Toronado vehicles.
