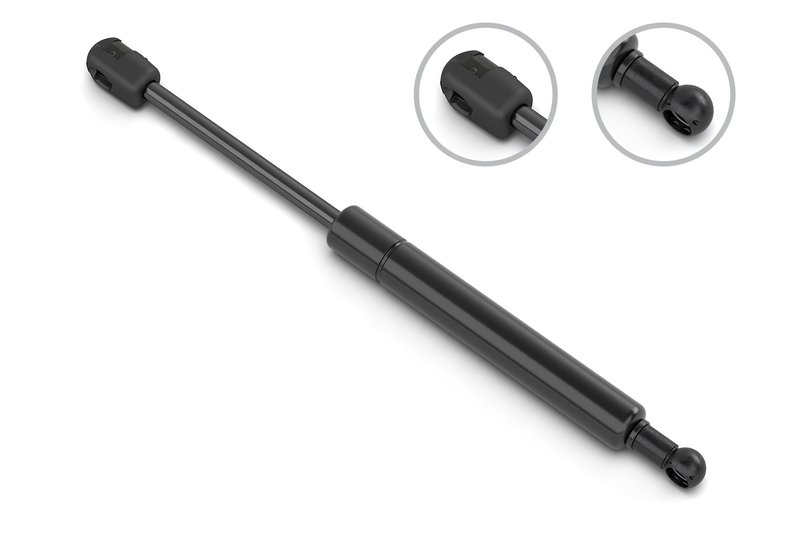

Stabilus 3B-030402 Hatch Lift Support

Overview of Stabilus 3B-030402 Gas Spring for Jeep Models

The Stabilus 3B-030402 gas spring is engineered for reliable performance in Jeep Cherokee, Grand Wagoneer, and Wagoneer vehicles. Designed to provide consistent force and smooth operation, this gas spring supports various lifting and dampening applications.

• Compressed length: 15.709 inches (399 mm)
• Extended length: 23.74 inches (603 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 658 Newtons (148 lbs)
• Rod connection type: Plastic socket
• Includes hardware kit part number 554761

Technical Details and Specifications

The Stabilus 3B-030402 gas spring features a compressed length of 15.709 inches and extends to 23.74 inches, providing a stroke length suitable for various applications in Jeep Cherokee, Grand Wagoneer, and Wagoneer models. The rod diameter measures 10 mm, paired with a 22 mm tube diameter, ensuring durability and stability under load. With a force rating of 658 Newtons (148 lbs), this gas spring delivers consistent support for lifting or holding components in place. The rod end utilizes a plastic socket connection, facilitating secure attachment and smooth operation. This part is non-engine specific and not intended for heavy truck, agricultural, or marine use.

Applications and Problem Solving

• Supports hood or tailgate lifting mechanisms in Jeep Cherokee and Wagoneer vehicles
• Replaces worn or weak gas springs causing difficulty in opening or holding panels
• Improves smoothness and control in lift supports for vehicle components
• Addresses issues with inconsistent force or premature gas spring failure
• Restores proper function to gas-assisted lift systems in compatible Jeep models

Installation Notes and Tips

Installation of the Stabilus 3B-030402 gas spring requires proper alignment of the rod and tube ends to ensure smooth operation. Use the included hardware kit (part number 554761) for secure mounting. Avoid forcing the gas spring beyond its designed stroke length to prevent damage. It is recommended to replace gas springs in pairs when applicable to maintain balanced support. Verify compatibility with Jeep Cherokee, Grand Wagoneer, and Wagoneer models before installation.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 3B-030402 are not provided here, Stabilus typically offers coverage against manufacturing defects. For warranty information, consult the product documentation or contact the manufacturer directly.
