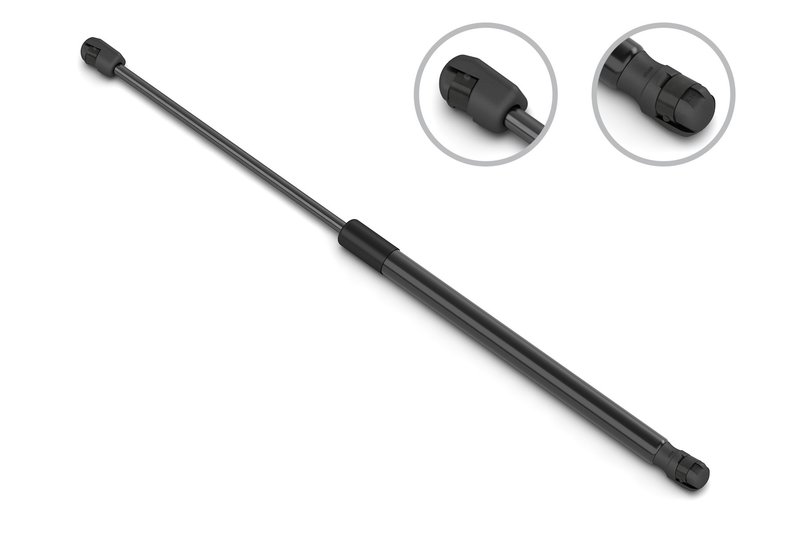

Stabilus 3B-042582 Hatch Lift Support

Stabilus 3B-042582 Gas Spring for 2016 Honda CR-V

Stabilus 3B-042582 is a gas spring with a 410 N (92 lb) force rating, built with plastic socket connections at both ends for a direct OE-style replacement. It measures 23.858 in. extended length and 14.409 in. compressed length, with an 8 mm rod and 22 mm tube diameter.

Key Features

• Brand: Stabilus
• Part number: 3B-042582
• Force rating: 410 N / 92 lb
• Extended length: 23.858 in. (606 mm)
• Compressed length: 14.409 in. (366 mm)
• Rod diameter: 0.315 in. (8 mm)
• Tube diameter: 0.866 in. (22 mm)
• Plastic socket rod and tube connections
• Direct fit for 2016 Honda CR-V, N/A position, Exc. Touring

Product Details

This Stabilus gas spring is engineered for the 2016 Honda CR-V and matches the listed OE-style dimensions and attachment style for the application. The 3B-042582 part number also cross-references Honda 74820-T1W-A01 for the same application. Use this gas spring when replacing a worn lift support that no longer holds position or opens smoothly.

Common Issues It Can Address

• Liftgate, hatch, or panel that drops instead of staying open
• Slow or uneven opening action
• Reduced support force from a worn gas strut
• Noise or binding from aging attachment points
• Loss of controlled movement at the supported panel

Installation Notes

Verify the extended length, compressed length, force rating, and plastic socket attachment style before installation. Compare the original support to the replacement part and confirm the vehicle application as 2016 Honda CR-V, Exc. Touring. Replace one side at a time if needed to maintain consistent support and check that the sockets fully seat on the mounting studs.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the specified application dimensions and connection style for reliable replacement use.
