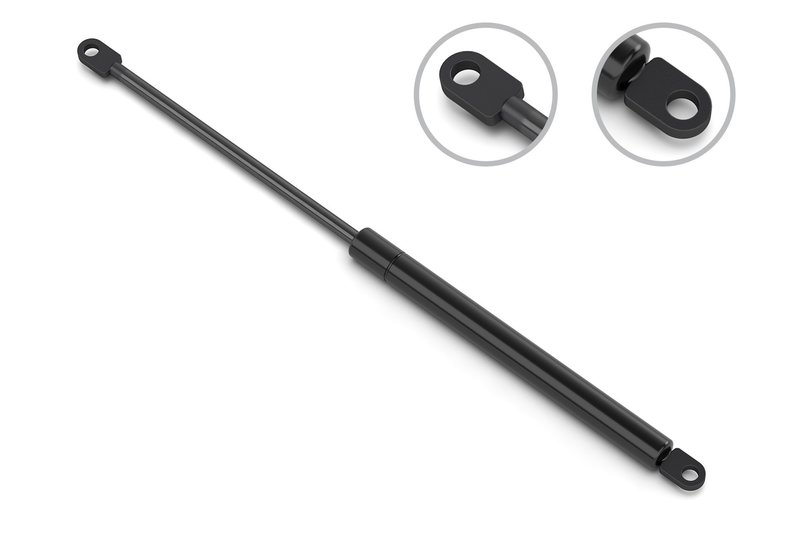

Stabilus 3B-043538 Hatch Lift Support

Stabilus 3B-043538 Gas Spring Overview

The Stabilus 3B-043538 gas spring is built for specific hood, hatch, or lift support applications that require controlled opening and closing force. With an 83 lb. force rating and metal blade end connections, it is a direct-fit replacement for select 1984-1993 Dodge Daytona and 1984-1986 Chrysler Laser applications.

This Stabilus 3B-043538 support measures 24.528 inches extended and 14.843 inches compressed, with an 8 mm rod diameter and 18 mm tube diameter. The 370 N force rating helps maintain steady lift assistance while the metal blade attachment style supports secure mounting at both ends.

Key Features

• Brand: Stabilus
• Part number: 3B-043538
• Force rating: 370 N / 83 lb.
• Extended length: 24.528 in. (623 mm)
• Compressed length: 14.843 in. (377 mm)
• Rod diameter: 0.315 in. (8 mm)
• Tube diameter: 0.709 in. (18 mm)
• Metal blade rod and tube connections
• Direct replacement style for select Dodge Daytona and Chrysler Laser applications

Detailed Description

Stabilus 3B-043538 is an OE-style gas spring engineered to provide consistent lift support for vehicles that use a blade-to-blade mounting design. The length and force specifications are important for maintaining proper opening angle, controlled movement, and secure hold when the support is in use. This part cross-references Tuff Support 610769 for the same application.

Compatible vehicle coverage includes Fits 1984-1993 Dodge Daytona, N/A and Fits 1984-1986 Chrysler Laser, N/A. If you are replacing a worn lift support on a Dodge Daytona or Chrysler Laser, matching the part number and dimensions is the most reliable way to confirm application.

What This Part Helps Address

• Weak or failing lift support pressure
• Hatch, hood, or panel that drops too quickly
• Inconsistent opening and holding force
• Noise or movement caused by a worn gas spring
• Replacement needs for select Dodge Daytona and Chrysler Laser models

Installation Notes and Tips

Verify the extended length, compressed length, rod diameter, tube diameter, and metal blade attachment style before installation. Compare the existing support to Stabilus 3B-043538 to confirm the mounting ends and force rating match the original application. For best results, replace supports in pairs only when the vehicle design and service procedure call for it.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the specified application dimensions and force rating for reliable fitment on listed vehicles.
